Description

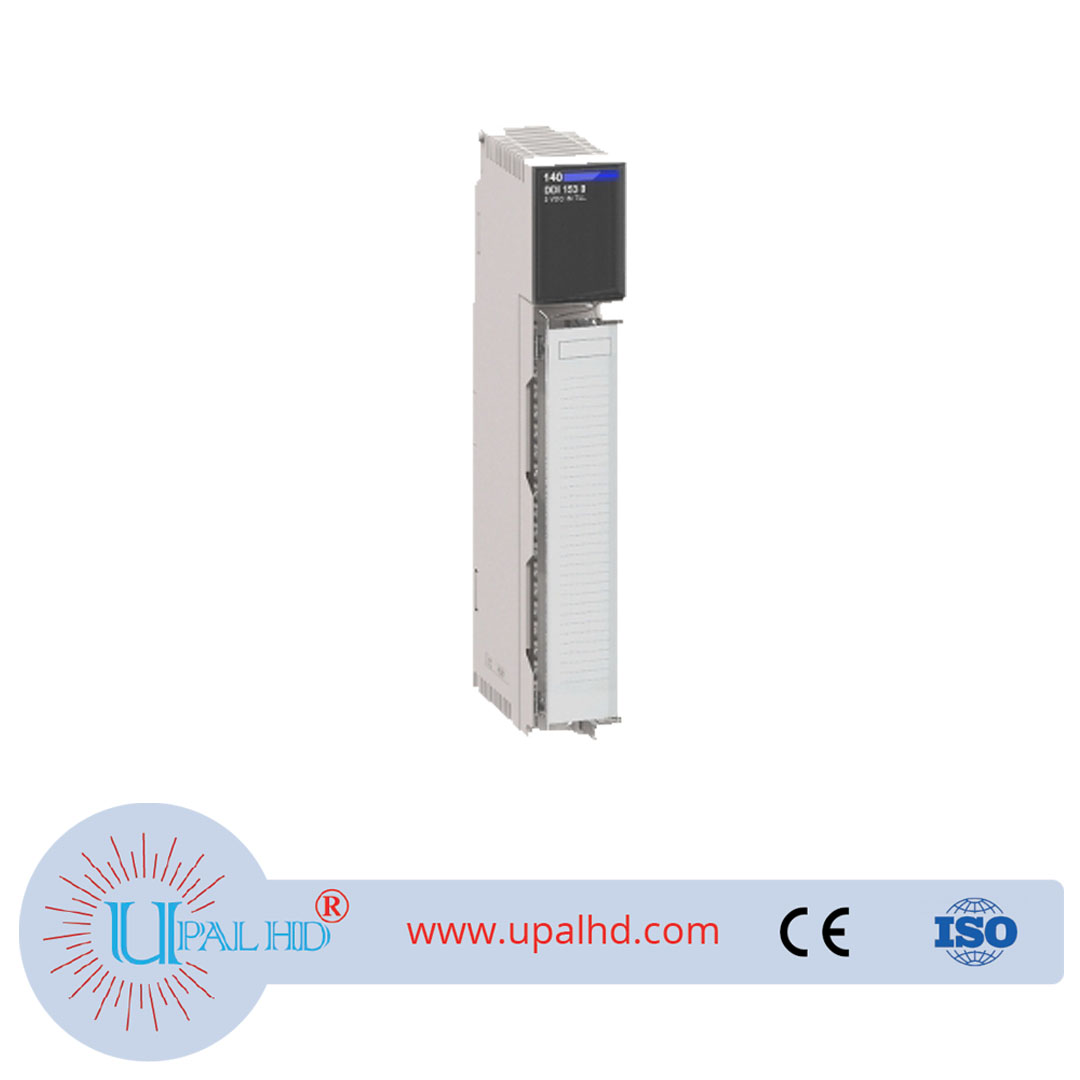

Original Schneider PLC/CPU discrete input module 140DDI84100 programmable controller spot
| range of product | Modicon Quantum automation platform |
|---|---|
| product or component type | Dc discrete input modules |
| discrete input number | 16 |
| group of channels | 8 |
| logic input | Positive (sink) |
| input voltage limits | 10…60 V |
| input voltage | 12 V 5…10 mA DC 24 V 6…30 mA DC 48 V 2…15 mA DC 60 V 1…5 mA DC |
| voltage state 1 guaranteed | 11…24 V 24 V +/- 20 % 34…48 V 48 V +/- 20 % 45…60 V 60 V +/- 20 % 9…12 V 12 V +/- 5 % |
| voltage state 0 guaranteed | 0…1.8 V 12 V +/- 5 % 0…10 V 48 V +/- 20 % 0…5 V 24 V +/- 20 % 0…9 V 60 V +/- 20 % |
| absolute maximum voltage | 75 V |
| addressing requirement | 1 input word |
| response time | 4 ms from state 0 to state 1 4 ms from state 1 to state 0 |
| switching frequency | <= 100 Hz |
| isolation between group and bus | 2500 Vrms DC for 1 minute |
| isolation between group | 700 Vrms DC for 1 minute |
| power dissipation | 1 W + (0.62 x number of points on) |
| marking | CE |
| local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| bus current requirement | 200 mA |
| module format | Standard |
| net weight | 0.3 kg |
| standards | UL 508 CSA C22.2 No 142 |
| product certifications | FM Class 1 Division 2 C-Tick |
| resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -40…85 °C |
| relative humidity | 95 % without condensation |
| operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.64 cm |
| Package 1 Width | 16.64 cm |
| Package 1 Length | 31.21 cm |
| Package 1 Weight | 0.44 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.749 kg |
| Warranty | 18 months |
