Description

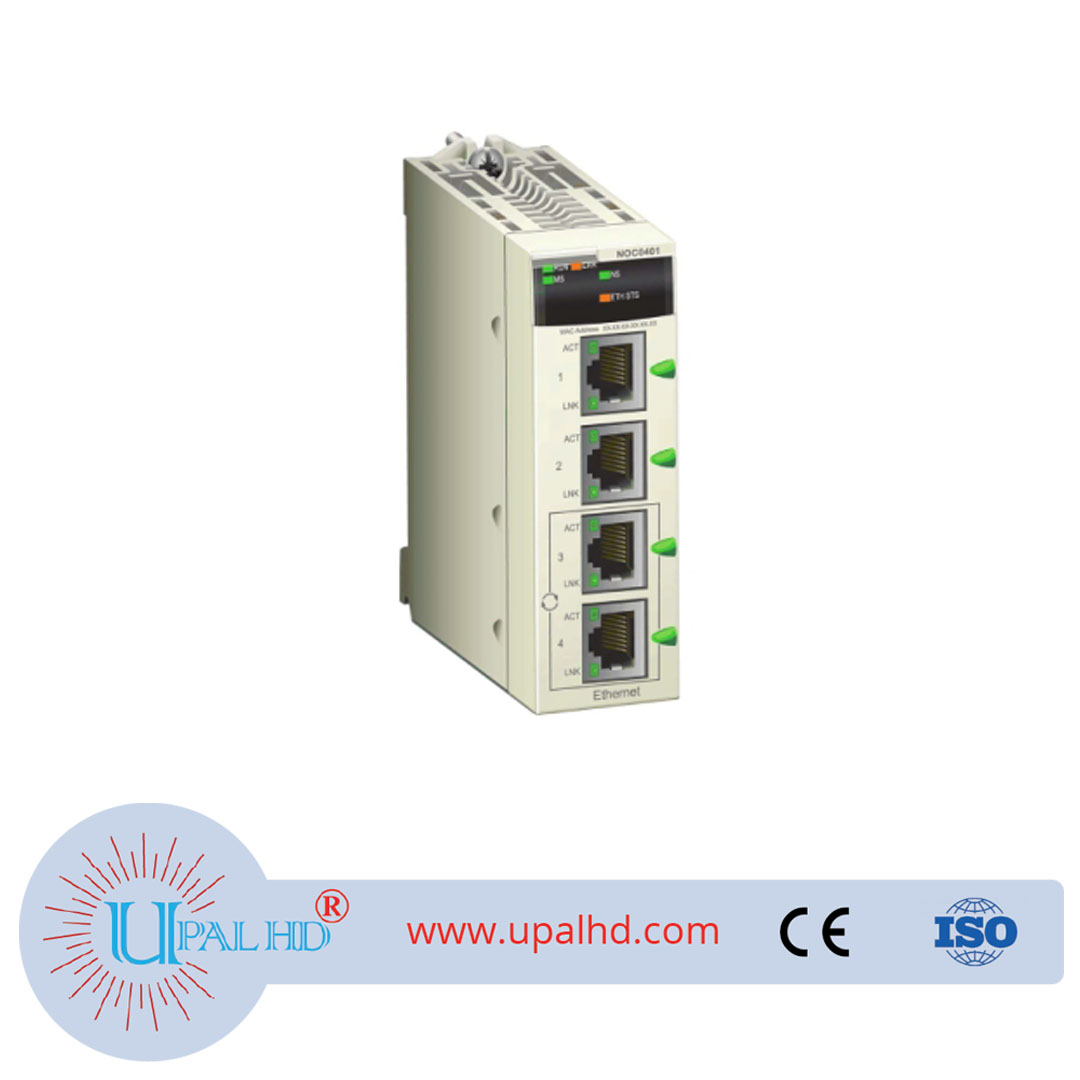

PRODUCT INFORMATION OF Schneider BMXNOC0401
| Range of product | Modicon M340 automation platform |
|---|---|
| Product or component type | Ethernet TCP/IP network module |
| Concept | Transparent Ready |
| Integrated connection type | Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30 |
| Protective treatment | TC |
| Communication service | Bandwidth management Data Editor (via PC terminal) FDR server Rack Viewer SNMP network administrator Modbus TCP I/O Scanner and Messaging Ethernet/IP I/O Scanner and Messaging Embedded 4-port switch RSTP support Port mirroring |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory usage | Application saving Activating the standard web server |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN) 1 LED (red) for processor or system fault (ERR) 1 LED (amber) for status of Ethernet network (ETH STS) 1 LED (green/red) for MS (Module Status) 1 LED (green/red) for NS (Network Status) |
| Control type | Processor or system fault (ERR) |
| Current consumption | 555 mA at 3.3 V DC |
| Module format | Standard |
| Net weight | 0.2 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility 2014/34/EU – ATEX directive |
| Product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 |
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 12.0 cm |
| Package 1 Weight | 219.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.285 kg |
| Warranty | 18 months |
