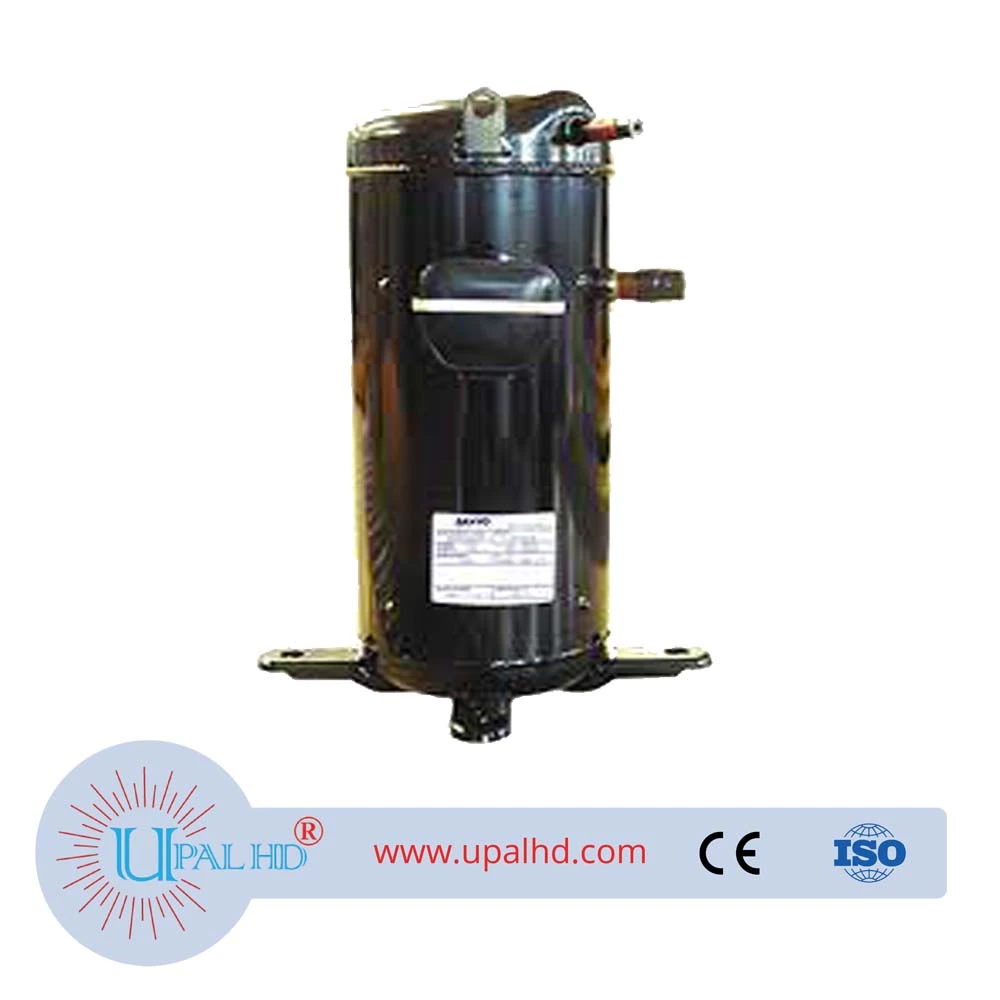

Panasonic 5 hp C-SBR180H38Q heat pump compressor air supply model

Description

PRODUCT INFORMATION OF DANFOSS Panasonic 5 hp C-SBR180H38Q heat pump compressor air supply model

5p Panasonic compressor C-SBR180H38Q gas supply model heat pump compressor R22 refrigerant gas supply model use standard • use limit:

Evaporating Temperature Range (Evaporating Temp): -30～+15℃

Condensing Temperature Range (Condensing Temp.): +20～+68℃

Compression Ratio: 1.5-17

Motor winding temperature Winding Temp: 115°C (below Max.

Panasonic Compressor C-SBR180H38Q is a 5HP R22 refrigerant air supplement type heat pump compressor produced by Panasonic Compressor (Dalian) Co., Ltd., with displacement of 83.2cm3/rev, heating capacity of 14400W, input power of 4350W, HCOP3.31W /W, current 8.2A.

Panasonic Heat Pump Compressor C-SBR180H38Q technical parameter specifications: heating/cooling capacity, operating current, power, high and low pressure, etc.

Panasonic 5 HP R22 heat pump compressor C-SBR180H38Q Maintenance and replacement precautions: Refrigerant/fluorine/refrigerant model and charging amount, refrigeration lubricating oil model and adding amount, high and low pressure values, operating current values, suction and discharge air temperature range, etc.

Dalian Panasonic Compressor C-SBR180H38Q is used in the heat pump field and other similar brands: Copeland Compressor, Danfoss Compressor, Inwalt Compressor, Hitachi Compressor, Highly Compressor, and performance parameter data comparison.

For ordering matters such as Panasonic C-SBR180H38Q-5HP R22R22 Air Supplement Type Heat Pump Compressor, please call us for more parameters, technical information and prices.
