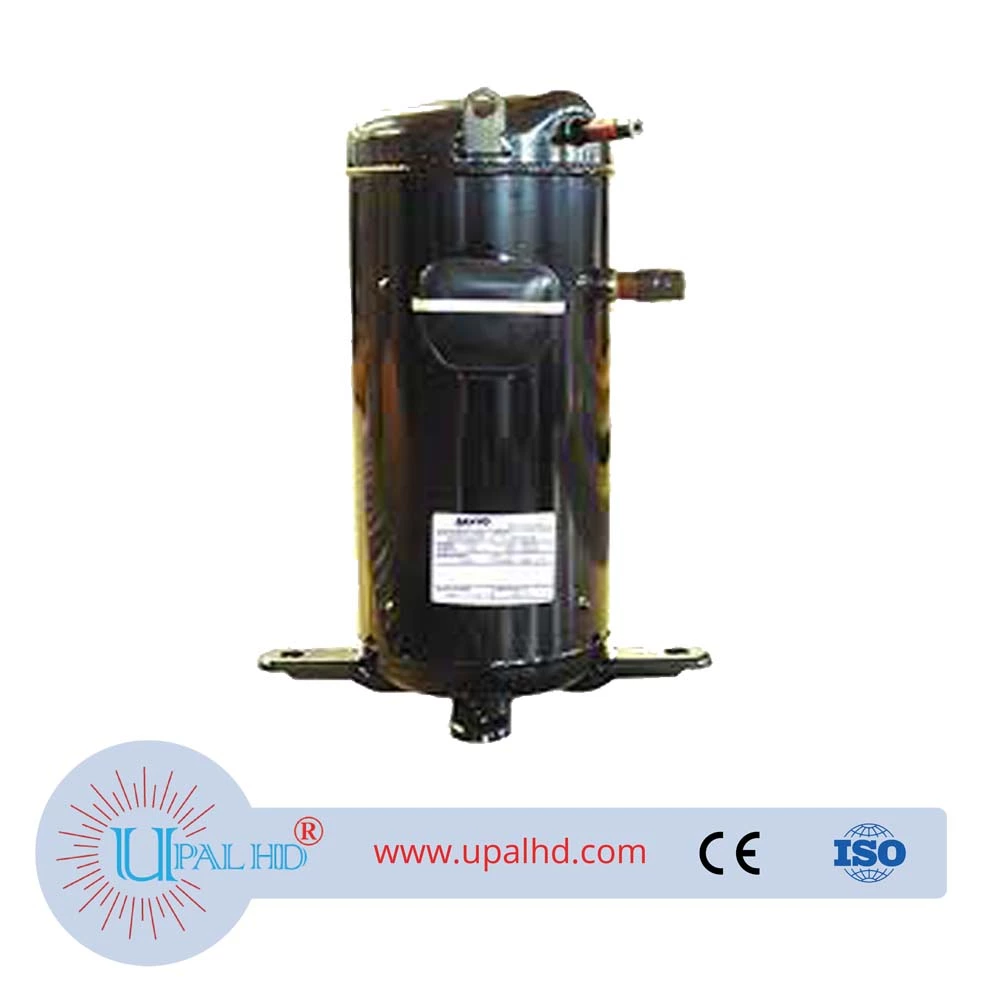

Panasonic 8 C-SCR295H38Q heat pump air conditioning heating heating compressor

8p Panasonic compressor C-SCR295H38Q gas supply model heat pump compressor R22 refrigerant gas supply model use standard and use limit:Evaporating Temperature Range (Evaporating Temp): -30～+15℃

Condensing Temperature Range (Condensing Temp.): +20～+68℃

Compression Ratio: 1.5-17

Motor winding temperature Winding Temp: 115°C (below Max.

Panasonic Panasonic Compressor C-SCR295H38Q is an 8HP R22 refrigerant air supplement type heat pump compressor produced by Panasonic Compressor (Dalian) Co., Ltd., with displacement of 137cm3/rev, heating capacity of 24500W, input power of 7250W, HCOP3.38W/ W, current 12.6A.

Panasonic heat pump compressor C-SCR295H38Q technical parameter specifications: heating/cooling capacity, operating current, power, high and low pressure, etc.

Panasonic 8 HP R22 heat pump compressor C-SCR295H38Q Maintenance and replacement precautions: Refrigerant/fluorine/refrigerant model and charging amount, refrigeration lubricating oil model and adding amount, high and low pressure values, operating current values, suction and discharge air temperature range, etc.
