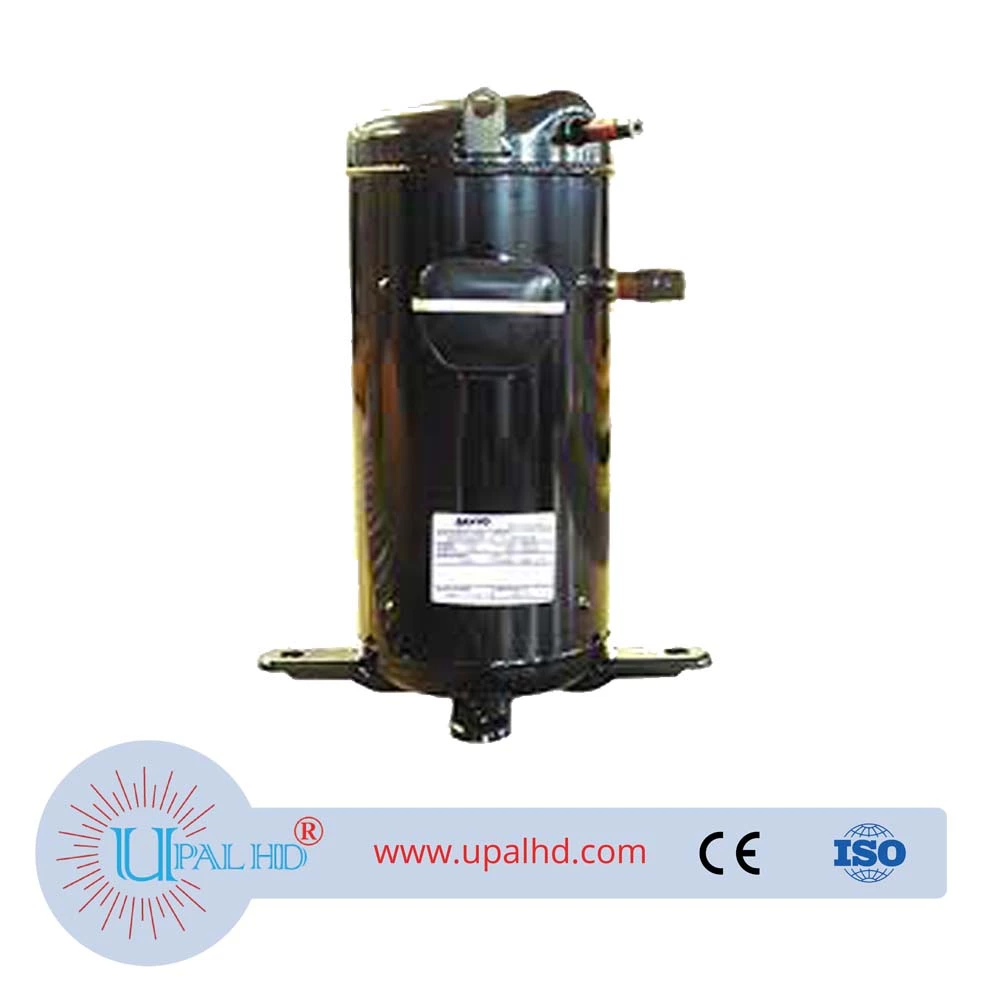

Panasonic 8 horses 3CC137LA0M_R404A medium temperature refrigeration compressor
Panasonic 8 horses 3CC137LA0M_R404A medium temperature refrigeration Compressor Model Number: 3CC137LA0M. Panasonic compressor 3CC137LA0M is an 8-hp R404A medium-temperature refrigerated scroll compressor produced by Panasonic Compressor (Dalian) Co., Ltd., power supply voltage: 3φ, 380-415V/50Hz, 440-460V/60Hz, displacement is 137 (cm3 /rev), the cooling capacity at 50Hz is 16.05(kW), the input power is 6.7kW, the cooling capacity at 60Hz is 19.15kW, and the input power is 8.1kW
Description
PRODUCT INFORMATION OF DANFOSS Panasonic 8 horses 3CC137LA0M_R404A medium temperature refrigeration compressor
8p Panasonic compressor 3CC137LA0M medium temperature scroll refrigeration compressor
R404A refrigerant medium-temperature model use standard and use limit:
Evaporating Temperature Range (Evaporating Temp): -25～+10℃
Condensing Temperature Range (Condensing Temp.): +10～+60℃
Compression Ratio: 1.8-8.5
Panasonic Compressor 3CC137LA0M Technical Parameters Specification Book information: cooling capacity, operating current, power, high and low pressure, etc.
Panasonic 8 hp R404A refrigerating compressor 3CC137LA0M Maintenance and replacement precautions: Refrigerant/fluorine/refrigerant model and charging amount, refrigerating lubricating oil model and adding amount, high and low pressure values, operating current values, suction and exhaust temperature range etc.
Comparison of performance and parameters between Dalian Panasonic medium-temperature compressor 3CC137LA0M and Copeland compressor/Danfoss compressor/Inwalt compressor/Hitachi compressor used in the refrigeration field.
