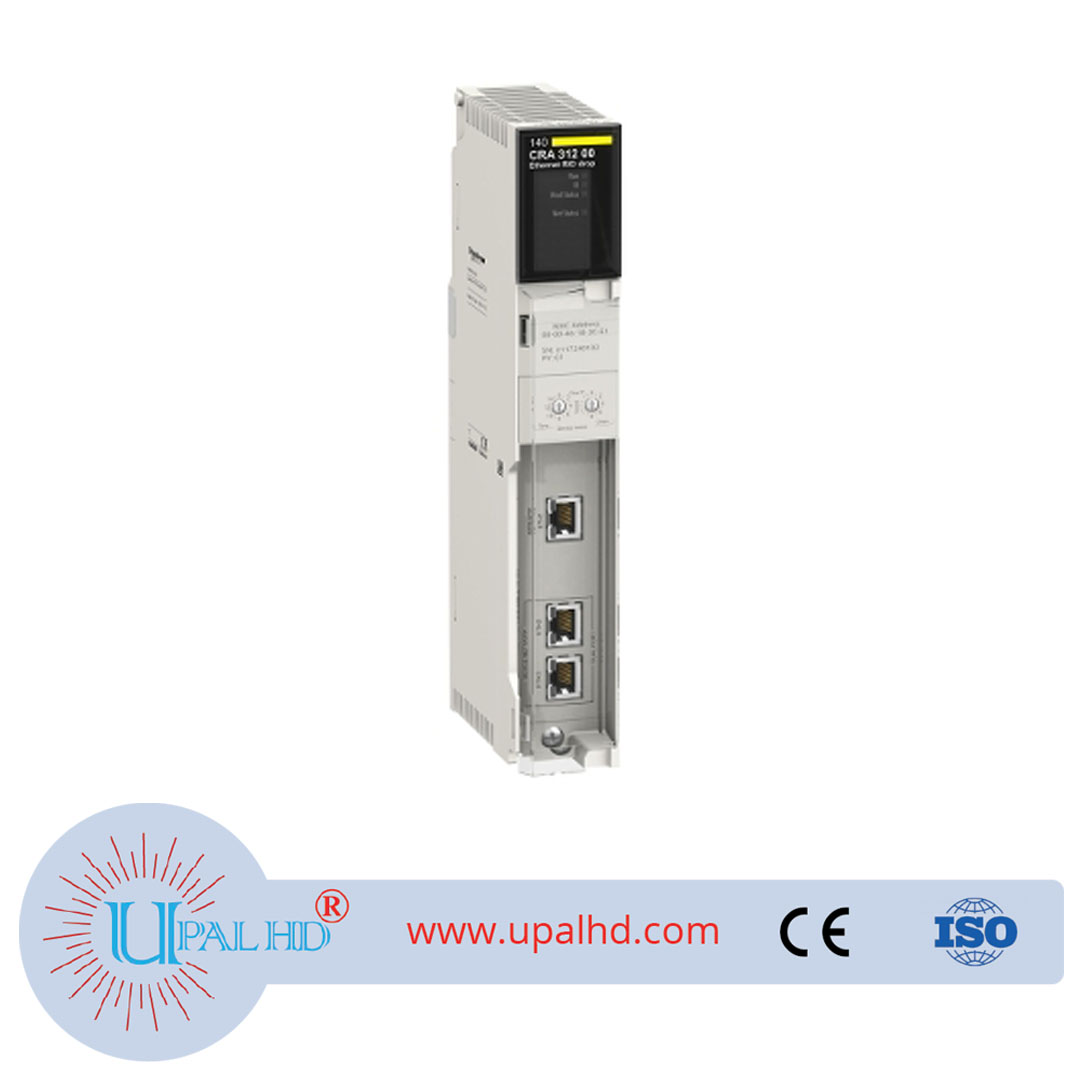

PRODUCT INFORMATION OF Schneider 140CRA31200
| range of product | Modicon Quantum |
|---|---|
| product or component type | Ethernet RIO drop adaptor |
| number of port | 3 |
| integrated connection type | Ethernet IP/Modbus TCP for service port Ethernet IP/Modbus TCP for device network |
| communication port protocol | Ethernet IP/Modbus TCP |
| communication service | The input data are collected and published to the remote I/O head adaptor Output modules are updated with the data received from remote I/O head adaptor |
| topology | Daisy chain loop |
| local signalling | 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green) for RUN 1 LED (red) for I/O |
| product compatibility | 140CRP31200 |
| environmental characteristic | Standard environment Hazardous location class I division 2 conforming to EN/IEC 61131-1 |
| width | 167 mm |
| Height | 50 mm |
| Net weight | 0.554 kg |
| product certifications | CE UL 508 C-Tick |
| Standards | EN 55011 CSA C22.2 No 142 IEC 61000-4-16 |
| IP degree of protection | IP20 conforming to EN 61131-2 IP20 conforming to IEC 60527 |
| overvoltage category | Class I conforming to EN 61131-2 |
| ambient air temperature for operation | 0…60 °C conforming to IEC 60068-2-2 0…60 °C conforming to IEC 60068-2-2 |
| ambient air temperature for storage | -40…85 °C conforming to IEC 60068-2-2 -40…85 °C conforming to IEC 60068-2-2 |
| vibration resistance | 3.5 mm constant amplitude (f= 0.5…8.4 Hz) conforming to EN 61131-2 1 gn constant acceleration (f= 8.4…150 Hz) conforming to EN 61131-2 |
| Operating altitude | 2000 m |
| maximum altitude transport | 3000 m |
| relative humidity | 93 % conforming to IEC 60068 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.9 cm |
| Package 1 Width | 16.4 cm |
| Package 1 Length | 31.3 cm |
| Package 1 Weight | 600.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.6 kg |
| Warranty | 18 months |
