Proface AST3301-B1-D24 proface touch screen quotation

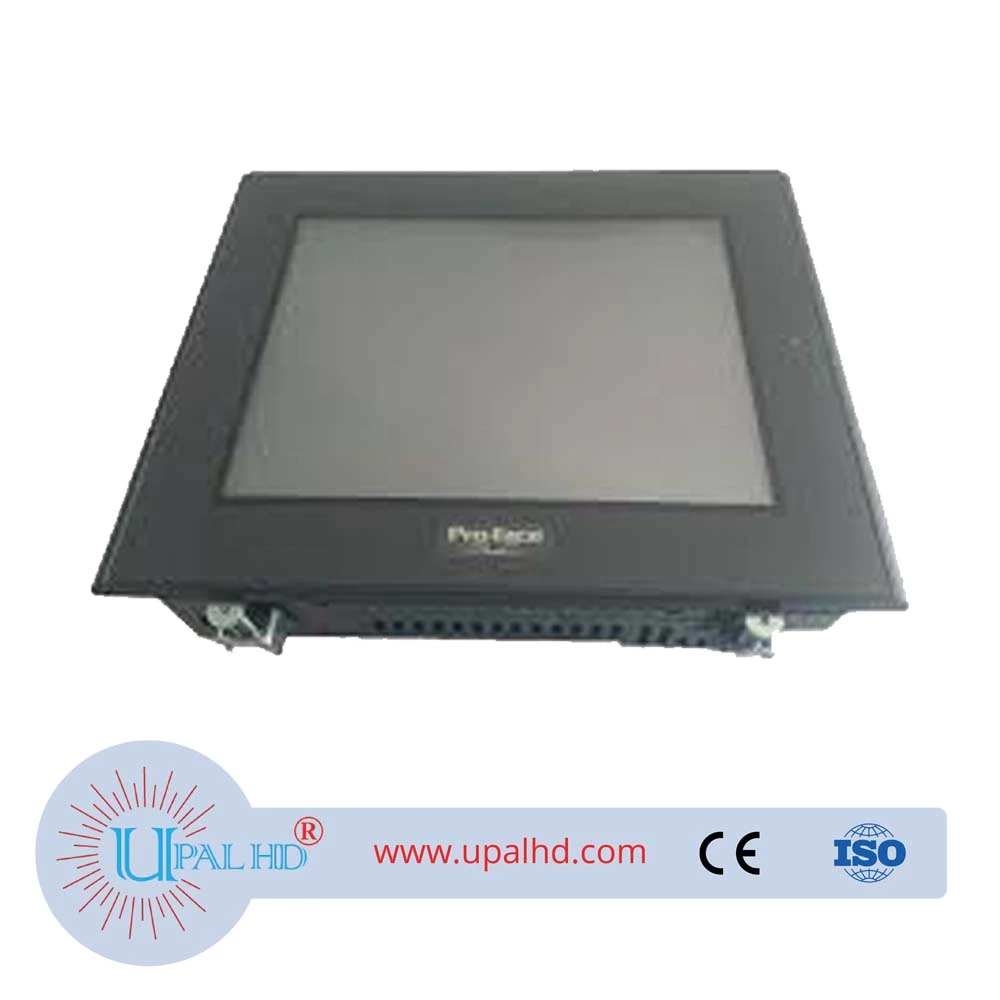

Proface AST3301-B1-D24 proface touch screen quotation Model Number: AST3301-B1-D24 is a basic HMI display monitor from Pro-face. The display type for this product is a blue-mode monochrome LCD, and the display size is 5.7 inches. There are eight different levels of monochrome display colors, and CCFL is used for the backlight. Product AST3301-B1-D24 is powered by a lithium battery, which can last anywhere from one to ten years depending on how it is stored and used.
It has a resolution of 320 x 240 pixels and comes with standard fonts and characters. There are eight different levels of contrast and brightness, which can be easily controlled with the product’s touch panel. The display’s backlight service has a life of 58,000 hours or more.
Description
PRODUCT INFORMATION OF PROFACE AST3301-B1-D24 proface touch screen quotation
| Dimensions | W167.5mm[6.59in] X H135mm[5.31in] X D59.5mm[2.34in] |
| Display Color | Blue Mode |
| Display Type | Monochrome LCD |
| Features | ST3000 series SIO type |
| Global Code | PFXST3301BAD |
| Input Voltage | 24VDC |
| Manufacturer | Pro-Face |
| Model Number | 3580207-02 |
| Resolution | 320 x 240 Dots (QVGA) |
| Screen Size | 5.7-Inch |
| Weight | 1.0kg[2.2lb]max. (unit only) |
