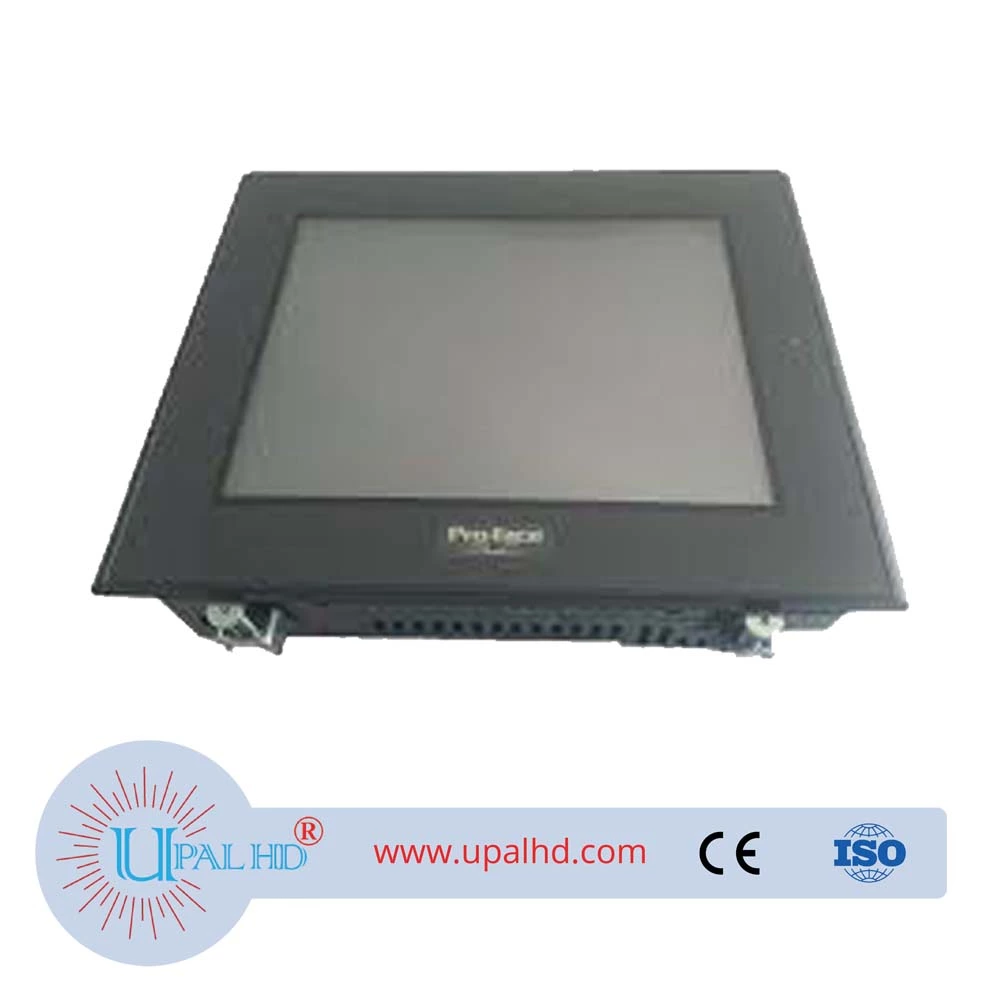

Proface GLC2400-TC41-24V Proface programming cable

Proface GLC2400-TC41-24V Proface programming cable Model Number: GLC2400-TC41-24V. Pro-Face is the manufacture of the GLC2400-TC41-24V. This is an integrated HMI/PLC in one box. It reduces overall system costs by streamlining machine designs like display and control and capitalizing on integrating information in a single unit. The GLC2400-TC41-24V offers precise machine control and monitoring by using powerful logic control algorithms including bit manipulation, timers, mathematical, counters, and logical operations. The GLC2400-TC41-24V is a 7.4-inch touch screen with TFT 256 Color LCD (256 colors, No blink/64 colors, 3-speed blink, the coloring switching is done via software). The screen offers 640 x 480 resolution. The GLC2400-TC41-24V has both RS-232(COM 1) and RS-422(COM 2) Com Ports. It offers a 10 base T Ethernet port, CompactFlash Port, 2CH Flex Network Master Interface, Sound Output, and optional Communication Module Interface. The GLC2400-TC41-24V offers an advanced featured Graphics editor, recipes trending, alarm and event management, security, data logging. The data can be shared in three ways via the internet, CompactFlash, or via ethernet. The GLC2400-TC41-24V has a 32 KB SRAM memory with a 128 KB Flash EPROM. The sound output is an external speaker connection. The sound line output is 2.7Vp-p (rated load: 10kOhm). The speaker output is 70mW (rated load: 8 Ohm, frequency 1kHz). The GLC2400-TC41-24V has the following certifications EN55011, EN61000-6-2, UL/cUL 1604, Class 1, Div 2. It is rated to consume 28W of power or less. The GLC2400-TC41-24V has a single slot for a CF card (CompactFlash).
