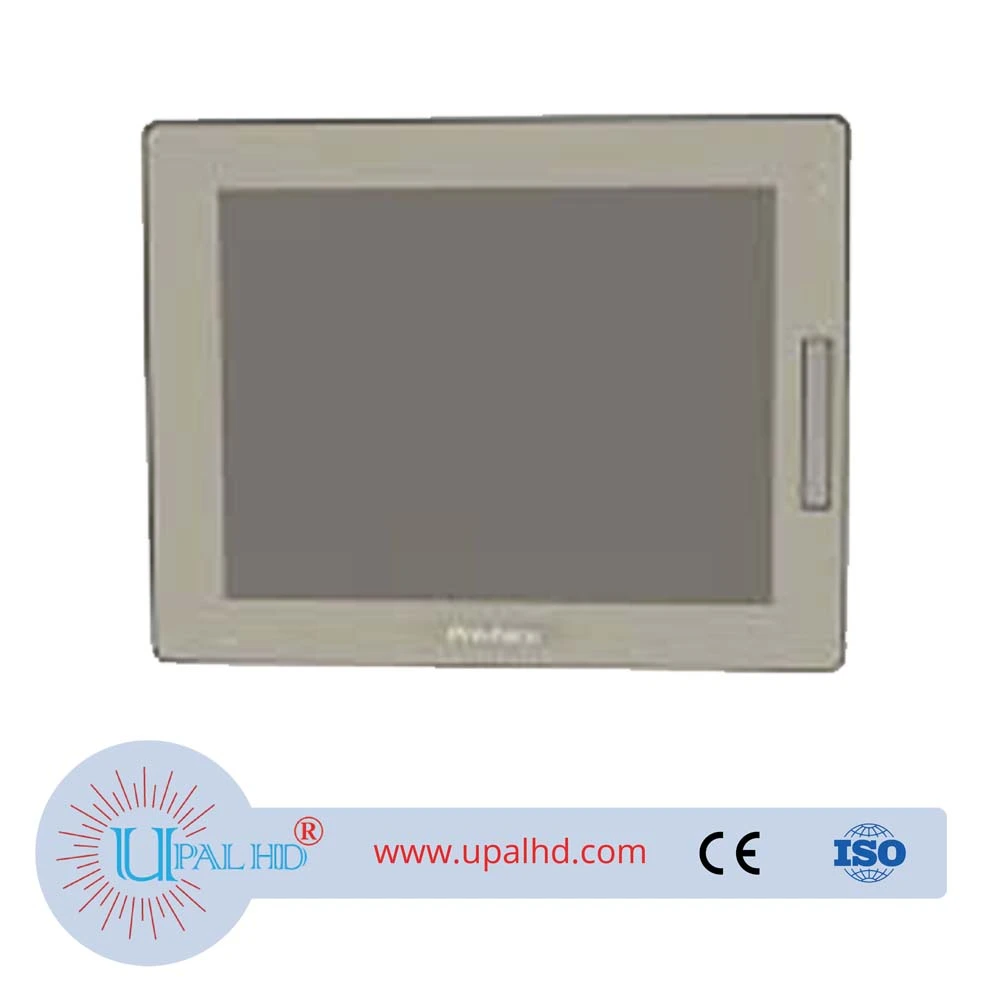

PRODUCT INFORMATION OF PROFACE PFXGP3650UADC proface GP3000-VM01
| Display Type |
TFT Color LCD (Ultra luminance)
|
|---|---|
| Display Size |
12.1″
|
| Resolution |
800 x 600 pixels (SVGA)
|
| Dot pitch |
W0.3075 X H0.3075mm [W0.01 X H0.01in.]
|
| Effective Display Area |
W248 X H186.5mm [W9.76 X H7.34in.]
|
| Display Colors |
65,536 Colors (No blink)/16,384 Colors (Blink)
|
| Backlight |
CCFL (User nonreplaceable parts. Factory replacement required.)
|
| Brightness Control |
8 Levels (Adjusted with the touch panel)
|
| Contrast Control |
Not applicable
|
| Backlight Service Life |
40,000 hrs. or more (continuous operation at 25 °C before backlight brightness decreases to 50 %)
|
| Language Fonts |
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.
|
| Character Sizes |
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
|
| Font Sizes |
Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times.
|
| 8 x 16 dots |
100 char. X 37 rows
|
| 16 x 16 dots |
50 char. X 37 rows
|
| 32 x 32 dots |
25 char. X 18 rows
|
| 8 x 8 dots |
100 char. X 75 rows
|
| Program Area |
132KB FLASH EPROM*1
|
| Number of Step |
Equivalent to 15,000 steps*2
|
| Variable Area |
SRAM 64 KB (uses lithium battery)*3
|
| Application Memory |
FLASH EPROM 10 MB*4
|
| Data Backup |
SRAM 320KB (uses lithium battery)*5
|
| Clock Accuracy |
65 sec/month (deviation at room temperature and power is OFF)*6
|
| Touch Panel Type |
Resistive Film (analog)
|
| Touch Panel Resolution |
1,024 X 1,024
|
| Touch Panel Service Life |
1,000,000 times or more
|
| Serial (COM1) |
RS-232C/422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
|
| Serial (COM2) |
RS-422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (socket)
|
| Ethernet (LAN) |
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45)×1
|
| Expansion Unit 1 | |
| Expansion Unit 2 | |
| USB (TYPE-A) |
Conforms to USB1.1.(TYPE-A conn.) X 2, Power Supply Voltage: DC5V±5%, Output Current: 500mA (max.), Communication Distance: 5m (max.)
|
| Expansion Memory | |
| CF Card |
Compact Flash CF Card Slot (TYPE-II) X 1
|
| Video Input |
NTSC: 59.9Hz, PAL: 50Hz, SECAM: 50Hz, Connector: RCA 75Ω X 1
|
| Sound Input |
MIC or LINE input (software switch), Connector: MINI-JACK Φ3.5 X 1
|
| Sound Output |
Speaker Output, 70mW (Rated Load: 8Ω, Frequency: 1kHz), Connector: 2-piece terminal block (AUX) X 1
|
| AUX Input/Output |
Alarm Output, RUN Output, Buzzer Output, Rated Voltage: DC24V, Rated Current: 50mA, Remote Reset Input, Input Voltage: DC24V, Connector: 2-piece terminal block (AUX) X 1
|
