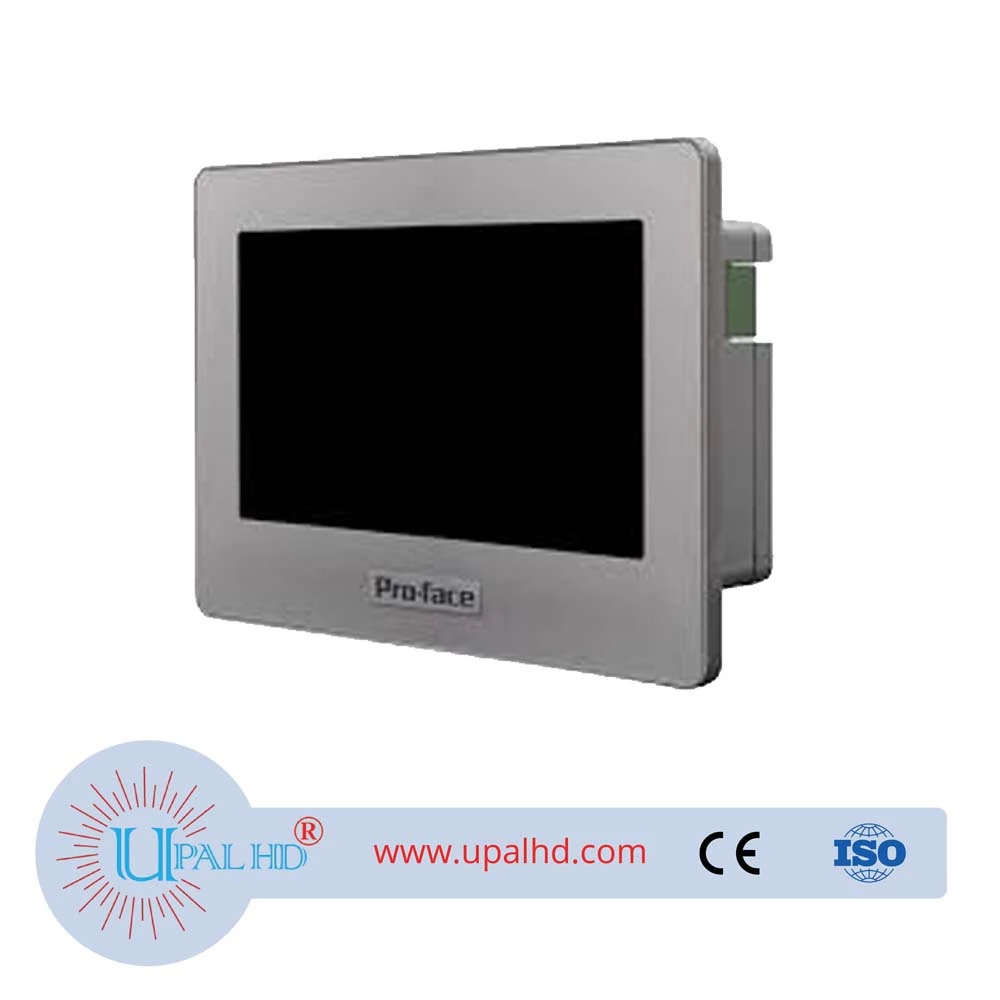

PRODUCT INFORMATION OF PROFACE PFXGP4114T2D Proface
| Display Type |
TFT LCD Color Display
|
|---|---|
| Display Size |
4.3″
|
| Resolution |
480 x 272 pixels
|
| Effective Display Area |
W95 x H53.9mm (W3.74 x H2.12 in.)
|
| Display Colors |
65,536 colors
|
| Backlight |
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
|
| Brightness Control |
16 Levels (Adjusted with the touch panel)
|
| Language Fonts |
Japanese, ASCII, Chinese (Simplified), Chinese (Traditional), Korean, Cyrillic, Thai*1
|
| Character Sizes |
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 80 pixel fonts, Image font: 8 to 72 pixel fonts
|
| Font Sizes |
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
|
| 8 x 16 dots |
25 char. x 5 rows
|
| 16 x 16 dots |
12 char. x 5 rows
|
| 32 x 32 dots |
6 char. x 2 rows
|
| Application Memory |
8MB*2
|
| Data Backup |
128KB FLASH EPROM
|
| Clock Accuracy |
Uses the clock of an external device*3
|
| Touch Panel Type |
Resistive Film (analog)
|
| Touch Panel Resolution |
1,024 x 1,024
|
| Touch Panel Service Life |
1,000,000 times or more
|
| Ethernet (LAN) |
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 1
|
| USB (TYPE-A) |
Conforms to USB2.0 (Type-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Communication Distance: 5 m or less*4
|
| USB (mini-B) |
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m or less
|
