Proface PFXGP4303TAD Proface

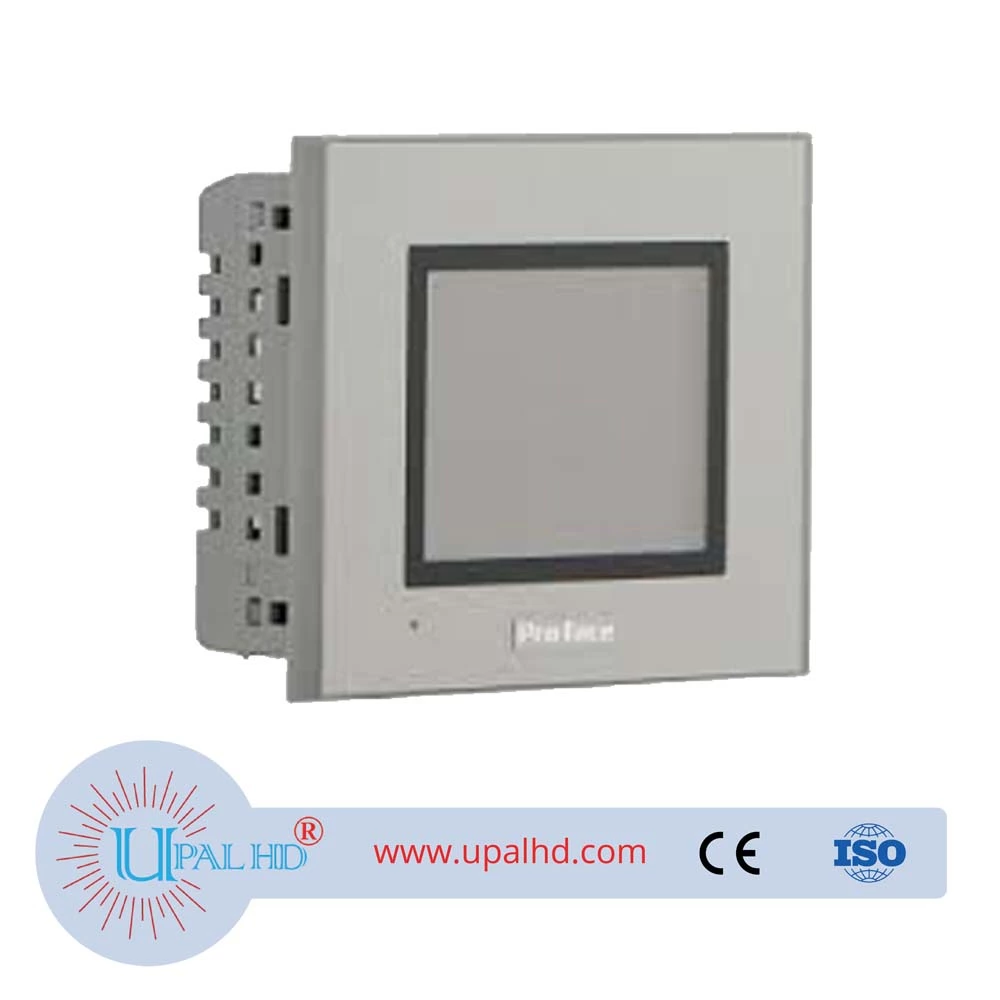

Proface PFXGP4303TAD Proface Model Number: PFXGP4303TAD. The PFXGP4303TAD is a Pro-face HMI that features a 5.7” touchscreen display and a TFT LCD with a resolution of 320 x 240 pixels (QVGA). The installation process is quite simple when replacing the PFXGP4303TAD and only requires the user to reconnect the input voltage, the communication ports, and load the application specific program to the HMI. Once the program has been loaded onto the HMI it will be retained by an on-board lithium battery even when input power is removed from the unit. If this battery needs to be replaced, the user will have to access the motherboard, replace the battery, and load the program once more.
Description
PRODUCT INFORMATION OF PROFACE PFXGP4303TAD Proface
| Backlight | White LED (Included) |
| Battery | On-board Lithium Backup Battery |
| Display Color | 65,536 Colors Available |
| Display Type | TFT Color LCD |
| Features | RS-232C and RS-485 (Isolation) |
| Input Voltage | 24VDC |
| Manufacturer | Pro-Face |
| Model Number | PFXGP4303TAD |
| NEMA Rating | IP65f |
| Resolution | 320 x 240 Dots (QVGA) |
| Screen Size | 5.7-Inch |
| Software Version | GP-Pro EX |
| Temperature – Recommended | -20 – 60 Degrees Celsius |
| Touch Panel Type | Resistive Film – Analog |
| Weight | 1lbs 13oz |
