Proface PFXSP5600TPD touch screen, pro-face, pfxgm4301tad, 5.7 color

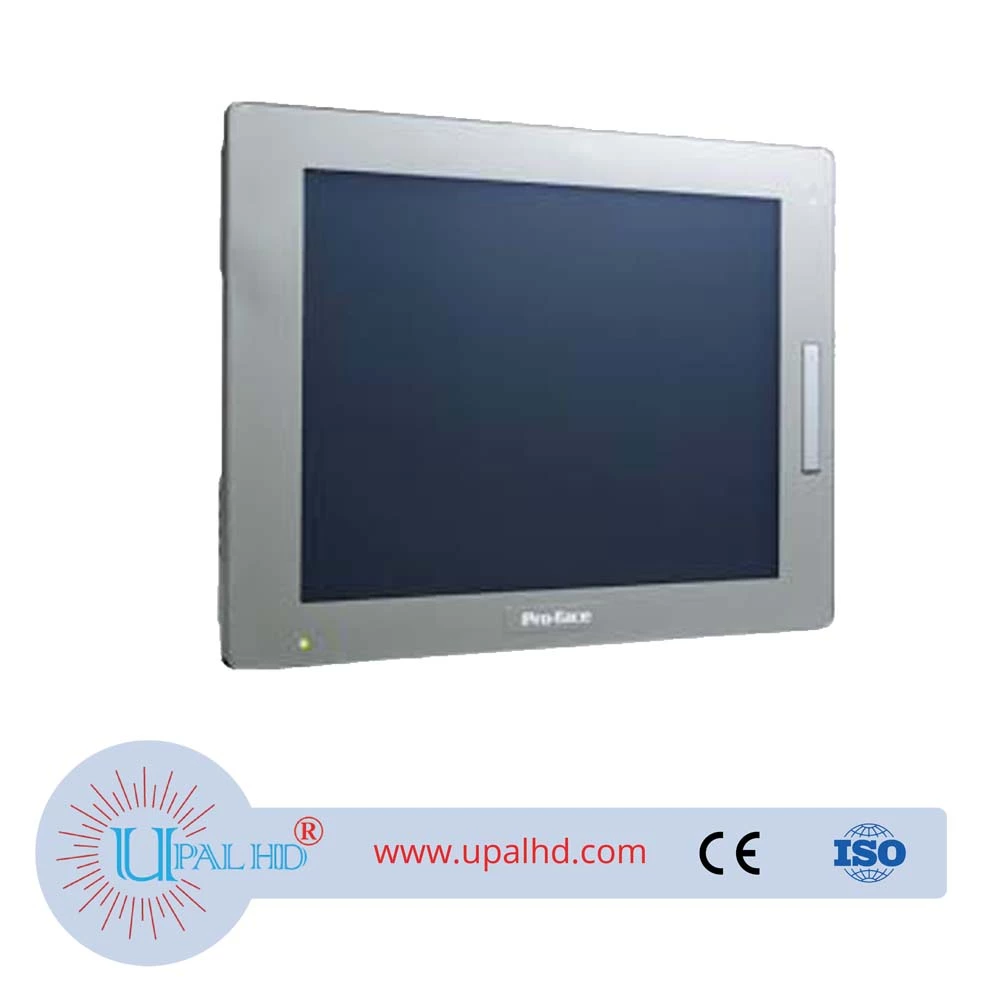

Proface PFXSP5600TPD touch screen, pro-face, pfxgm4301tad, 5.7 color Model Number: PFXSP5600TPD.Part of the Pro-face SP5000 series is the product model PFXSP5600TPD SP-5600TP. This advanced display monitor is in the HMI family and is also found under model number PFXSP5600TPD. The monitor has a display size of 12 inches and a resolution of 1,024 x 768 pixels. It is equipped with an auto-scaling brightness sensor and has 16 million display colors. Model PFXSP5600TPD SP-5600TP uses a white LED backlight, which has a service life of more than 50,000 hours. It uses a multi-touch analog panel, with a resolution of 1,024 x 1,024. The touch panel’s lifetime is 1 million times or more.

This monitor will consume a maximum of 21 watts of power and will use less than 6 watts with the backlight off. Product PFXSP5600TPD has an inrush current of 30 A or less, and a rated input voltage of 12 to 24 Vdc. The input voltage limits range from 10.8 to 28.8 Vdc.

Model PFXSP5600TPD cannot be in environments 2,000 meters above sea level and should be kept free of corrosive gases. It should always be cooled through natural air circulation and should be operated in temperatures between 32 and 140 degrees Fahrenheit. Storage temperatures can range from -4 to 140 degrees Fahrenheit.
