Proface PFXSP5700TPD pro-face gc-4408w

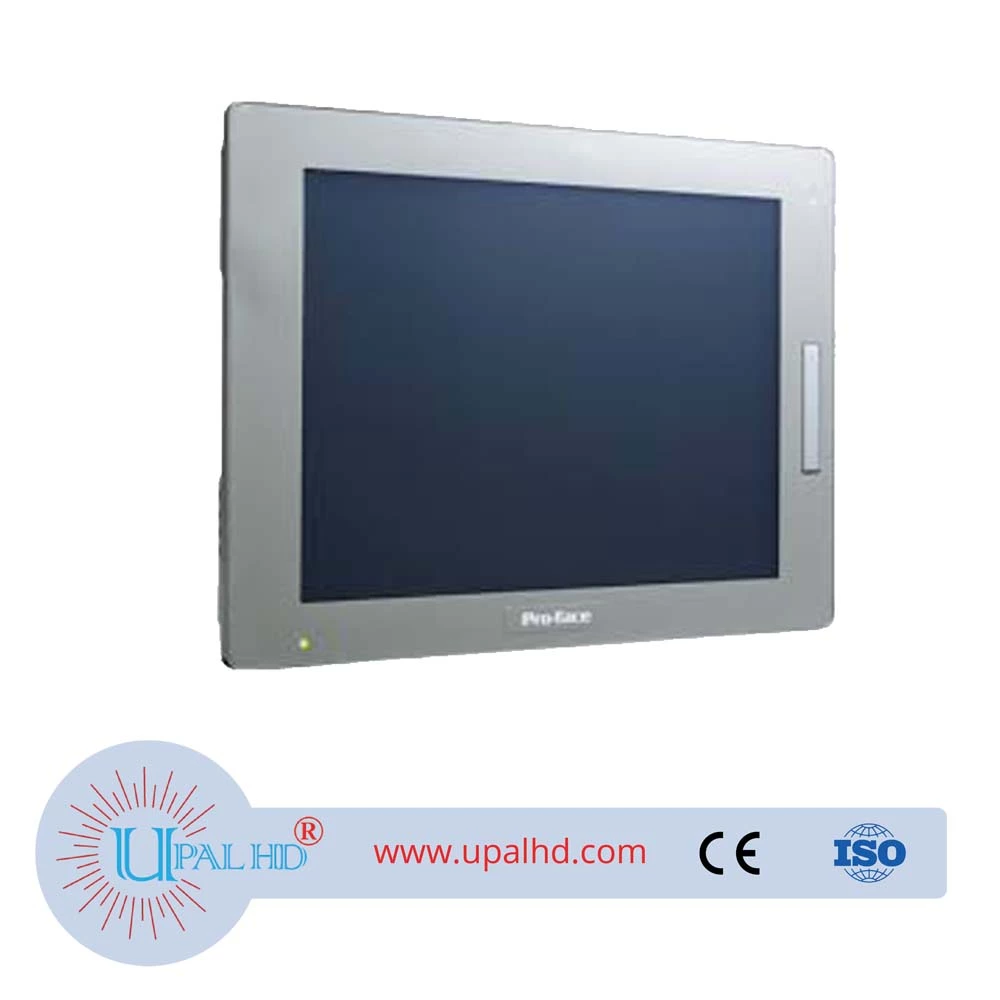

Proface PFXSP5700TPD pro-face gc-4408w Model Number: PFXSP5700TPD.Model PFXSP5700TPD SP-5700TP is a premium display monitor from Pro-face. It is in the HMI family, and part of the SP5000 series. The display size is 15 inches long and it comes equipped with an auto-scaling brightness sensor. This product is also found under model number PFXSP5700TPD. It has 16 million display colors, and a white LED backlight. The service life for the backlight is 50,000 hours or more if kept at operating temperatures around 77 degrees Fahrenheit. Model SP-5700TP uses a TFT Color LCD display type. It’s compatible with power supplies and open box modules.

The graphic display resolution for this Pro-face monitor is 1,024 x 768 pixels. The product has brightness levels ranging from 0 to 100. Brightness is adjusted through a restive film touch panel. The model needs to be kept at air pressures below 2000 meters above sea level and is cooled by natural air circulation.

Model PFXSP5700TPD has a rated input voltage of 12 to 24 Vdc. Voltage input limits are between 10.8 and 28.8 Vdc. This monitor consumes a maximum of 22 watts of power. With the backlight off it consumes a minimum of 6 watts or less. These models and their appropriate user manuals can be found on our website. AX will repair, buy, and sell these products.
