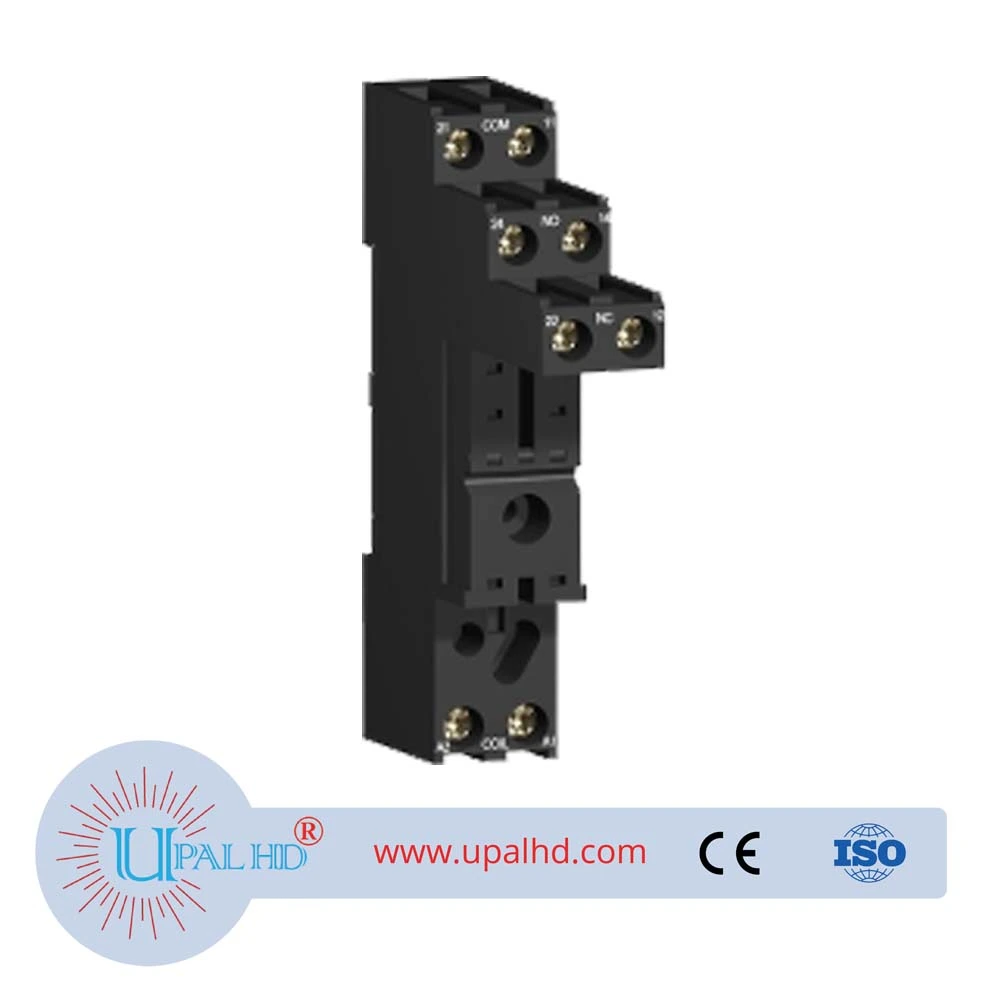

Schneider Electric RSZ Relay Socket
Schneider Electric RSZ Relay Socket Uncategorized Model Number: RSZE1S48M “This Harmony RSB plug-in socket has a rated voltage of 250V AC with an output rating of 10A.” “This plug-in relay socket is compatible with interface plug-in relay RSB range.” “It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail.” “It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere.” “It is compatible with plug in control relay.” “It enables easy installation and connect to relay from its socket.” “Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).” Schneider Electric RSZ Relay Socket
Description
PRODUCT INFORMATION OF SCHNEIDER Electric RSZ Relay Socket
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Product or component type | Socket |
| Contact terminal arrangement | Separate |
| product compatibility | Plug-in relay RSB with 1 C/O contact Plug-in relay RSB with 2 C/O contact |
| Shape of pin | Flat |
| Device short name | RSZ |
| Sale per indivisible quantity | 10 |
| [Ith] conventional free air thermal current | 10 A |
| [Ue] rated operational voltage | < 250 V AC |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| tightening torque | < 0.8 N.m for M3 screw(s) |
| fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Marking | CE |
| Width of Schneider Electric RSZ Relay Socket | 15.5 mm |
| Product weight | 0.05 kg |
| Overvoltage category | III |
| Pollution degree | 3 |
| connections – terminals | Screw connectors, 1 x 0.25…1 x 2.5 mm² (AWG 22…AWG 14) flexible with cable end Screw connectors, 2 x 0.25…2 x 1 mm² (AWG 22…AWG 17) flexible with cable end Screw connectors, 1 x 0.5…1 x 2.5 mm² (AWG 20…AWG 14) solid without cable end Screw connectors, 2 x 0.5…2 x 1.5 mm² (AWG 20…AWG 16) solid without cable end |
| Standards of Schneider Electric RSZ Relay Socket | IEC 61984 |
| Product certifications | CSA UL |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…85 °C |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Dielectric strength | 2500 V |
| Warranty of Schneider Electric RSZ Relay Socket | 18 months |
