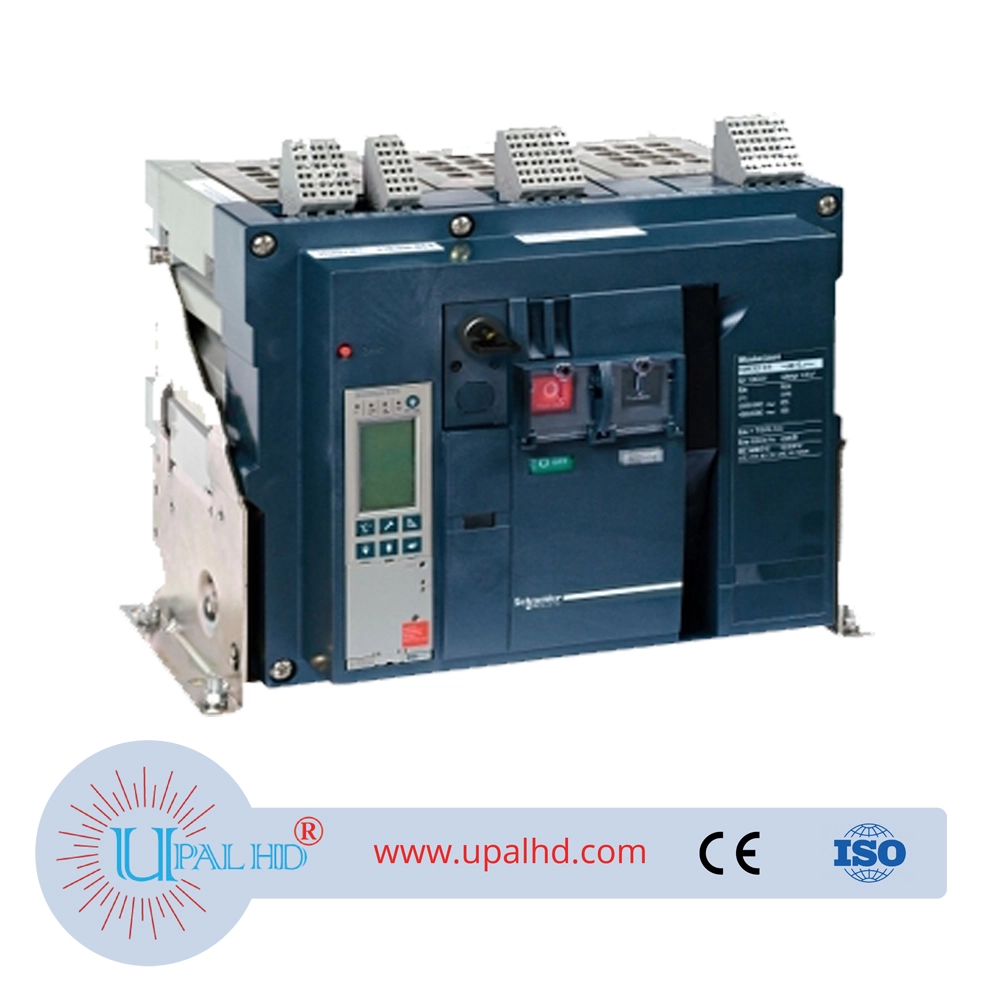

PRODUCT INFORMATION OF SCHNEIDER original circuit breaker MT08H2MIC2.0 2.0A 3P4p fixed drawer type
| Product Series | MasterPact NW |
|---|---|
| product type | Body |
| product short name | MasterPact NW08 |
| circuit breaker name | MasterPact NW08H2 |
| number of poles | 3P |
| Network Type | AC |
| Circuit breaker model | H2 |
| isolation function | Applies to IEC 60947-2 |
| use category | Category B |
| Network frequency | 50/60 Hz |
| control type | (Push) button |
| installation type | Fixed |
| Rated current [In] | 800 A at 40 °C |
| Rated insulation voltage [Ui] | 1000 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated impulse withstand voltage [Uimp] | 12 kV according to IEC 60947-2 |
| Closure capacity [Icm] | 187 kA 525 V AC at 50/60 Hz at 187 kA 690 V AC at 50/60 Hz at |
| Rated working voltage [Ue] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Transformer rating | 800 A |
| Ability to divide | 85 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming IEC 60947-2 100 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Use breaking capacity [Ics] | 85 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 85 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| protection type | Unprotected |
| Mechanical life | 12500 times without maintenance according to IEC 60947-2 25000 times with maintenance according to IEC 60947-2 |
| Electrical life | 10000 cycles at 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 10000 cycles at 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-23A: 10000 cycles at 440 V AC 50/60 Hz without maintenance conforming to IEC 60947 -2 AC-23A: 10000 cycles of 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-3: 6000 cycles of 440/690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
| Phase spacing | 115 mm |
| Rated short-time withstand current [Icw] | 50 kA for 3 s conforming to IEC 60947-2 85 kA for 1 s conforming to IEC 60947-2 |
| Short circuit instantaneous protection | 171…209 kA |
| breaking time | 25 ms |
| Maximum closing response time | 70 ms |
| high of Schneider original circuit breaker | 352 mm |
| width of Schneider original circuit breaker | 422 mm |
| depth of Schneider original circuit breaker | 297 mm |
| Standards compliant | IEC 60947-2 |
| certified product | ASEFA ASTA |
| pollution level | 4 Conforms to IEC 60664-1 |
| operating temperature | -25…70 °C |
| storage environment temperature | -40…85 °C |
| Warranty of Schneider original circuit breaker | 18 months |
