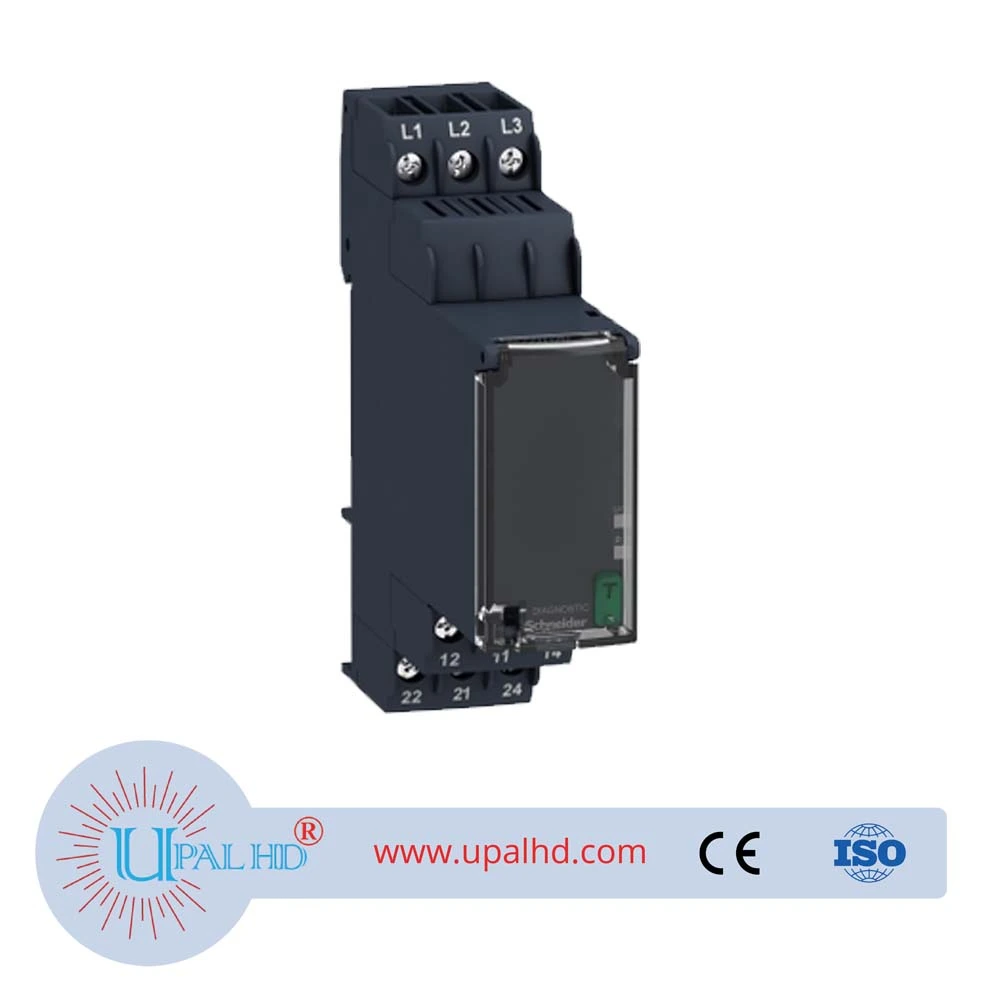

PRODUCT INFORMATION OF SCHNEIDER phase sequence lack of phase protector RM22TG20 relay two or three phase control phase lack of protector
| Product Series | Harmony Control Relays |
|---|---|
| product type | 3-phase control relay |
| relay type | Control relay |
| Number of grid phases | Phase 3 |
| Relay name | RM22TG |
| Relay Monitoring Parameters | Phase order Phase failure detection (2 or more phase cut) |
| delay type | None |
| Switching capacity in VA | 2000VA |
| Measuring range | 183…528 V voltage AC |
| contact type | 2 OC |
| reset time | 1500 ms at maximum voltage |
| Maximum Switching Voltage | 250V AC |
| Minimum switching current [Imin] | 10 mA at 5 V DC |
| Maximum switching current | 8A AC |
| Rated supply voltage [Us] | 208…480 V AC |
| Power supply voltage range | 183…528 V AC |
| operating limits | 183…528V AC |
| Power consumption VA | 15 VA at 480 V AC 60 Hz |
| Voltage Monitoring Threshold | < 100 V AC |
| supply voltage frequency | 50…60 Hz +/- 10 % |
| output contact | 2 C/O |
| Rising delay at power-up | 650ms |
| Response time | <= 200 ms |
| Type of overvoltage | III according to IEC 60664-1 III according to UL 508 |
| Insulation resistance | > 100 MΩ at 500 V DC conforming to IEC 60255-27 |
| installation location | Any position |
| Wiring capacity | Screw terminal, 2 x 0.5…2 x 2.5 mm² (AWG 20…AWG 14) Solid without wire terminal Screw terminal, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16 ) flexible wire with wire terminal screw terminal, 1 x 0.5…1 x 3.3 mm² (AWG 20…AWG 12) rigid wire without wire terminal screw terminal, 1 x 0.2…1 x 2.5 mm² ( AWG 24…AWG 14) flexible wire with wire terminal |
| Tightening torque | 0.6…1 Nm conforming to IEC 60947-1 |
| covering material | Flame retardant plastic |
| LED status | LED (yellow) relay ON LED (green) energized |
| installation method | 35 mm DIN rail conforming to EN/IEC 60715 |
| Electrical life | 100000 times |
| Mechanical life | 10000000 times |
| use category | AC-15 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 AC-1 conforming to IEC 60947-4-1 DC-1 conforming to IEC 60947-4-1 |
| Safe and reliable data | MTTFd = 924.6 years B10d = 850000 |
| contact material | Cadmium free |
| width of Schneider phase sequence lack | 22.5 mm |
| Product Weight | 0.09 kg |
| Anti-instantaneous power failure | 10ms |
| electromagnetic compatibility | Exemption for use in residential, commercial and light-industrial environments Transmission standards per EN/IEC 61000-6-1 Exemption for industrial environments per EN/IEC 61000-6-2 Transmission standards for residential, commercial and light- industrial environments per EN/IEC 61000- 6-3 Transmission standards for industrial environments in accordance with EN/IEC 61000-6-4 Anti-static interference – test level: 6 kV (contact discharge) Level 3 in accordance with IEC 61000-4-2 Anti-static interference – test level: 8 kV (air Discharge) Class 3 Complies with IEC 61000-4-2 Radio Frequency Electromagnetic Field Radiation Immunity Test – Test Level: 10 V/m3 Class Complies with IEC 61000-4-3 Immunity to Fast Transients – Test Level: 4 kV (Direct Connection) Class 4 Complies with IEC 61000-4-4 Immunity to fast transients – Test level: 2 kV (capacitive coupling) level 4 Complies with IEC 61000-4-4 Surge discharge immunity – Test level: 4 kV (Common mode) level 4 Conforms to IEC 61000 -4-5 Surge Discharge Immunity- Test Level: 2 kV (Differential Mode) Level 4 Conforms to IEC 61000-4-5 Conducted and Radiated Emissions Group B 1 Conforms to CISPR 11 Conducted and Radiated Emissions Class B Conforms to CISPR 22 |
| Standards compliant | EN/IEC 60255-1 |
| certified product | CE EAC RCM GL CSA UL CCC |
| storage environment temperature | -40…70°C |
| ambient temperature | -20…50 °C at 60 Hz -20…60 °C at 50 Hz AC/DC |
| Relative humidity | 93…97 % at 25…55 °C conforming to IEC 60068-2-30 |
| Anti-vibration of Schneider phase sequence lack | 0.075 mm (f= 10…58.1 Hz) non-operating according to IEC 60068-2-6 1 gn (f= 10…58.1 Hz) non-operating according to IEC 60068-2-6 0.035 mm (f= 58.1…150 Hz) during operation conforming to IEC 60068-2-6 0.5 gn (f= 58.1…150 Hz) conforming to IEC 60068-2-6 during operation |
| impact resistance | 15 gn (duration = 11 ms) for non-operating according to IEC 60068-2-27 5 gn (duration = 11 ms) for operating according to IEC 60068-2-27 |
| IP protection class | IP20 according to IEC 60529 (screw terminals) IP40 according to IEC 60529 (housing) IP50 according to IEC 60529 (front panel) |
| pollution level | 3 according to IEC 60664-1 3 according to UL 508 |
| Dielectric test winding and winding, winding voltage to ground | 2.5 kV AC 50 Hz, 1 minute conforming to IEC 60255-27 |
| Warranty of Schneider phase sequence lack | 18 months |
