Description

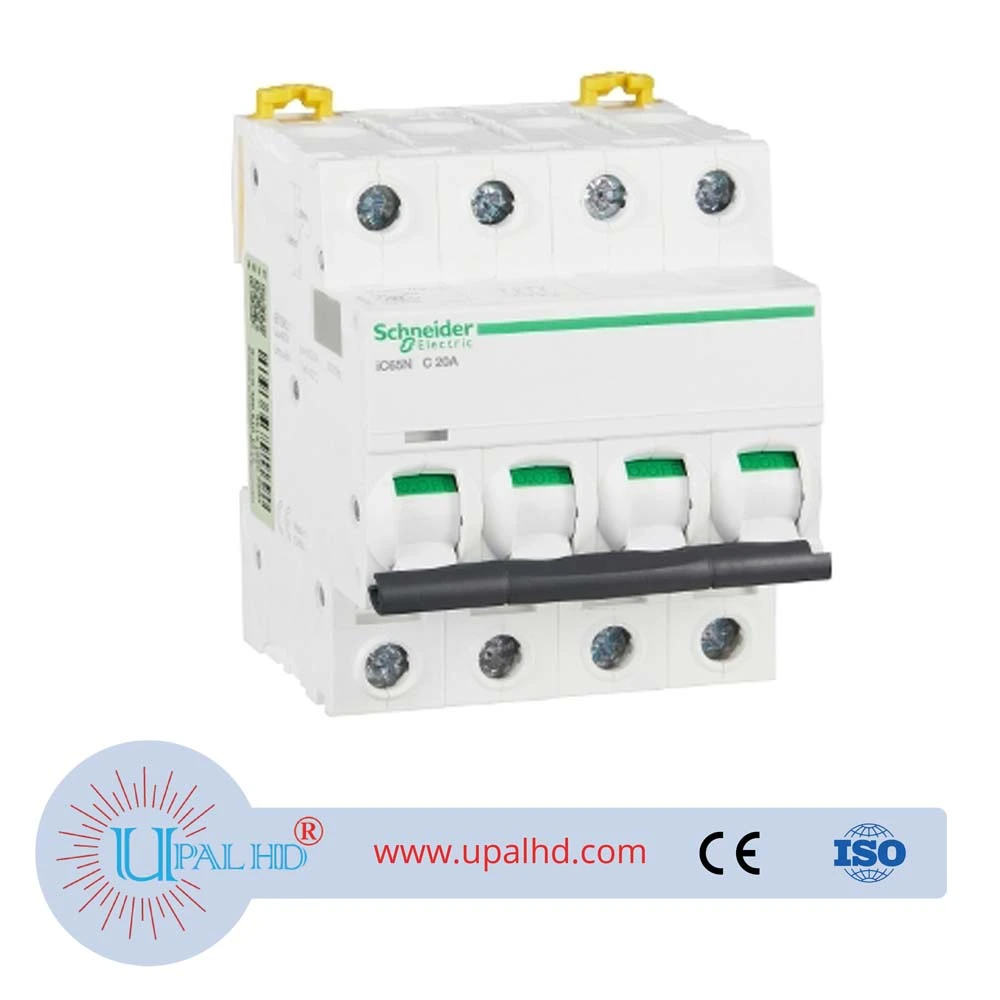

PRODUCT INFORMATION OF SCHNEIDER protector A9F18220 iC65N 4P C20A circuit breaker small household leakage protection
| Product Series | Acti 9 |
|---|---|
| Product Series | Acti 9 |
| product name | IC65 |
| product type | Miniature Circuit Breaker |
| product short name | IC65N |
| number of poles | 4P |
| Applications | Distribution Protection |
| Number of guard poles | 4 |
| Rated current [In] | 20 A at 30 °C |
| Network Type | AC |
| Trip unit type | Thermomagnetic |
| Trip curve | C |
| Breaking capacity | 36 kA Icu at 12…133 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2 6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898 -1 |
| use category | AC class conforms to IEC 60947-2 |
| isolation function | Applies to IEC 60947-2 |
| Network frequency | 50/60Hz |
| Rated working voltage [Ue] | 400 V AC 50/60 Hz |
| Magnetic trip limit | 5…10 x In |
| current limiting level | 3 Conforming to IEC 60898-1 |
| Rated insulation voltage [Ui] | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated impulse withstand voltage [Uimp] | 6 kV according to IEC 60947-2 |
| Contact position indication | Have |
| control type | Handle |
| local signal indication | On/off indicator |
| installation type | Locking clip lock |
| installation method | DIN rail mounting |
| Width (multiples of 9mm) | 8 |
| high of Schneider protector A9F18220 iC65N | 94mm |
| depth of Schneider protector A9F18220 iC65N | 78.5mm |
| Product Weight | 476g |
| Mechanical life | 20000 times |
| Electrical life | 10000 times |
| Wiring capacity of Schneider protector A9F18220 iC65N | Tunnel terminal top or bottom 1…25 mm² Solid wire without wire terminal Tunnel terminal top or bottom 1…16 mm² flexible wire (optional) with or without wire terminal |
| Stripping length | 14 mm power return: |
| Tightening torque of Schneider protector A9F18220 iC65N | 2.5 Nm power circuit: |
| Leakage current protection | (Required) additional assembly |
| Standards compliant | GB 10963.1 IEC 60898-1 |
| certified product | CCC CCS CE |
| IP protection class | IP20 conforming to IEC 60529 |
| pollution level of Schneider protector A9F18220 iC65N | 3 Conforming to IEC 60947-2 |
| Moisture resistance | 2 Conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| operating temperature | -35…70°C |
| storage environment temperature | -40…85°C |
| Warranty of Schneider protector A9F18220 iC65N | 18 months |
