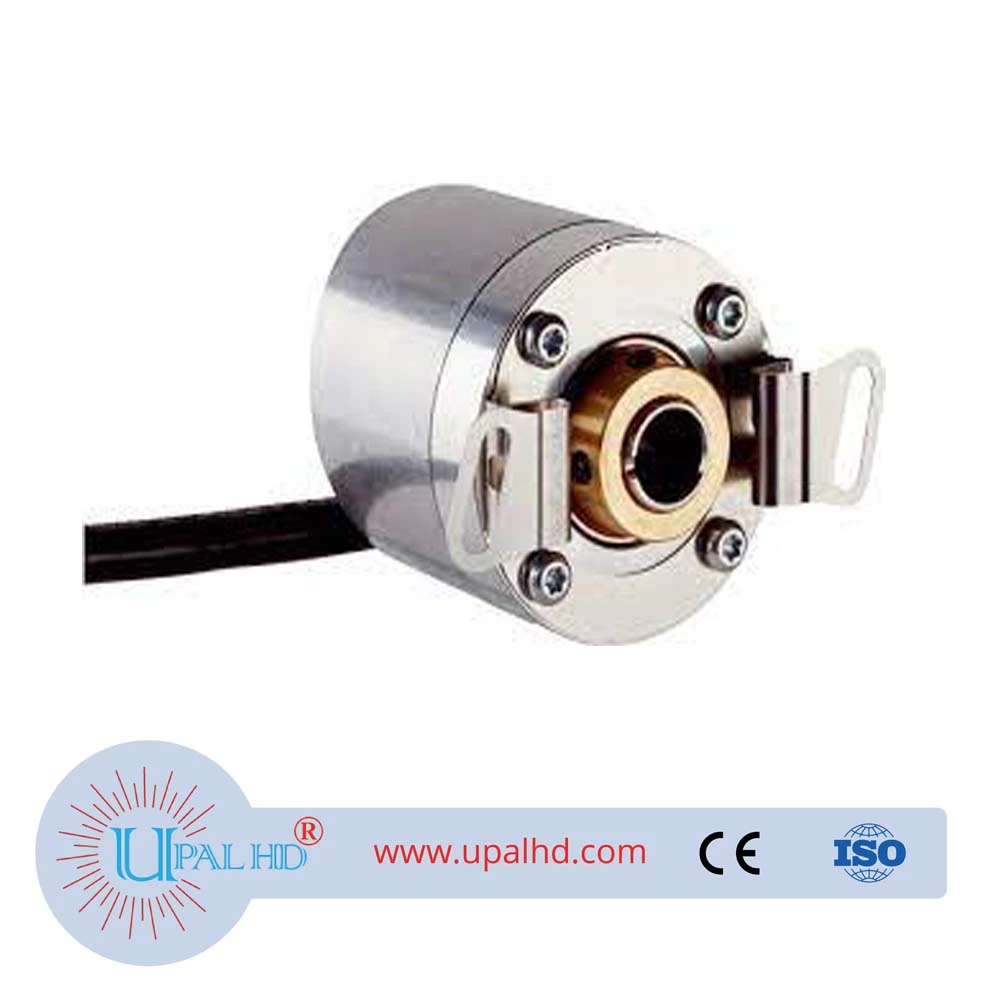

PRODUCT INFORMATION OF SICK incremental encoder DBS36E-BBGK01024 1077509 Sick 8mm blind hole hollow shaft
The DBS36 Core incremental encoder features impressively high mechanical flexibility, excellent technical properties, and a number of variations. A blind hollow shaft with a shaft diameter of up to 8 mm and a face mount flange with 6 mm and 1/4″ solid shaft are available. The type with face mount flange offers 2 different flanges with 6 different mounting hole patterns and a servo groove for mounting with servo clamps. The hollow shaft type has a universal stator coupling that can be used for multiple typical mounting hole circles. All models have compact dimensions and a universal cable connection that allows for cables to run in an axial or radial direction.
At a glance:
- Universal cable connection
- Types with blind hollow shaft or face mount flange with solid shaft
- Face mount flange with 6 mounting hole patterns and servo groove
- Communication interfaces: TTL/RS-422, HTL/push pull, Open Collector
- Number of lines from 10 to 2,500 possible
- Temperature range: –20 °C … +85 °C
- Enclosure rating: IP65
