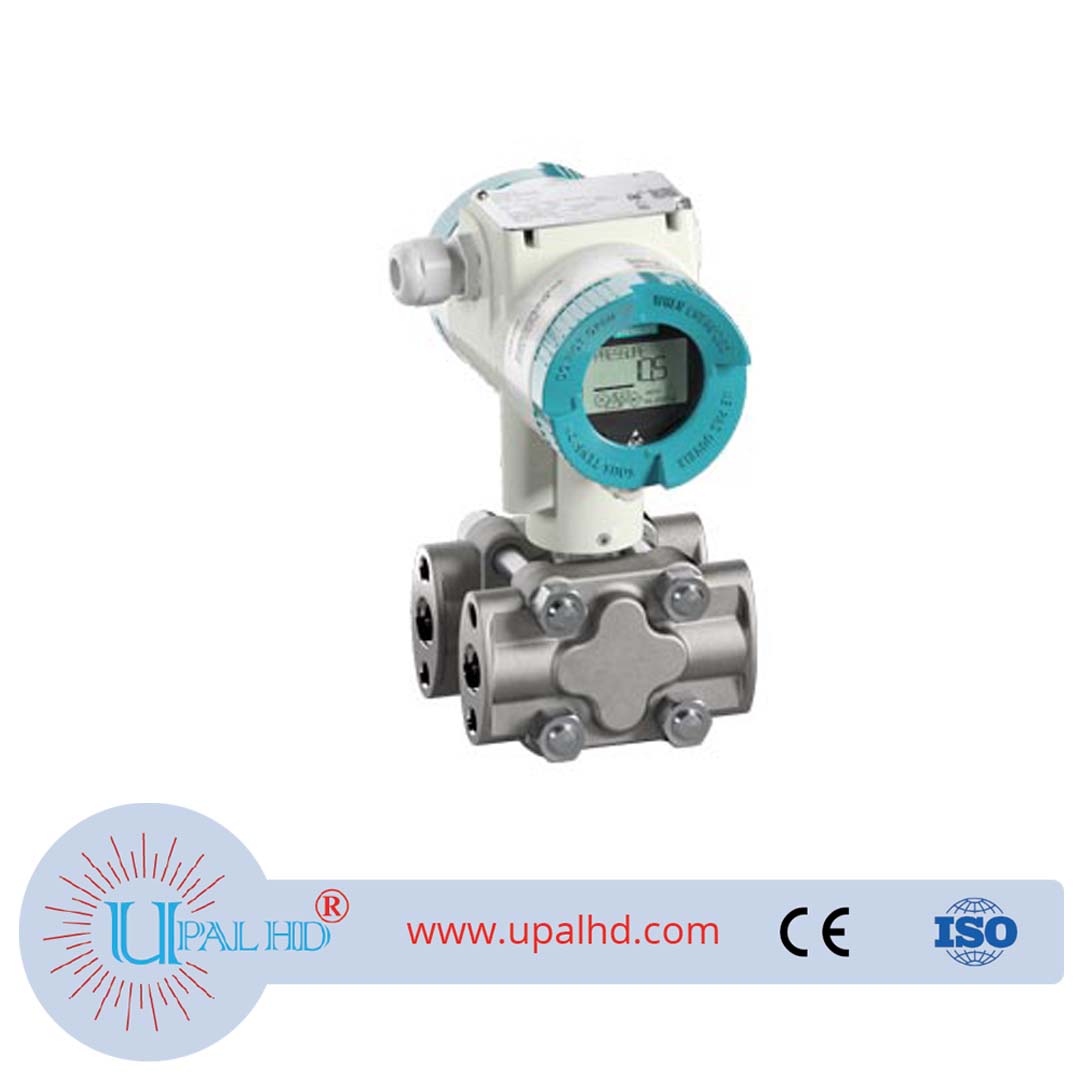

SITRANS P320 Smart Pressure Transmitter
SITRANS P320 Smart Pressure Transmitter. Industrial Weighing & Process Measuring Instruments-Model Number: 7MF0340-1BM01-5AF2-ZA00E00H01K84Y01.
| SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4…20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 600 mbar (241.1 inH²O) Oval flange, fastening thread: M10 (PN160), M12 (PN420) Diaphragm: Stainless steel 316L/1.4404, measuring cell: Stainless steel 316L/1.4404; Sensor Differential pressure: process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x M20 x 1.5 With display (lid with glass window) Cable gland and sealing plug attached, plastic General approval without Ex approval: World (CE, RCM) except: EAC, FM, CSA, KCC Mounting bracket, stainless steel 1.4301/304 Measuring range setting: Lower range value (max. 5 characters). Upper range value (max. 5 characters). Unit (mbar. bar. kPa. MPa. psi. …) Example: -0.5 … 10.5 psi Characteristic curve square root: (VSLN2. MSLN2). example: VSLN2 Display: scaling with standard units (m3/s. l/s. m. inch. …). example: 1 … 5 m3/s |
Description
PRODUCT INFORMATION OF Siemens SITRANS P320 Smart Pressure Transmitter
| Article Number (Market Facing Number) | 7MF0340-1HM01-5AF2-Z A00+E00+H02+Y01+Y02+Y22 |
| Product Description | SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4…20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 600 mbar (241.1 inH²O) Oval flange, fastening thread: M10 (PN160), M12 (PN420) Diaphragm: Stainless steel 316L/1.4404, measuring cell: Stainless steel 316L/1.4404; Sensor Differential pressure: process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x M20 x 1.5 With display (lid with glass window) Cable gland and sealing plug attached, plastic General approval without Ex approval: World (CE, RCM) except: EAC, FM, CSA, KCC Mounting bracket, stainless steel 1.4301/304 Measuring range setting: Lower range value (max. 5 characters). Upper range value (max. 5 characters). Unit (mbar. bar. kPa. MPa. psi. …) Example: -0.5 … 10.5 psi Characteristic curve square root: (VSLN2. MSLN2). example: VSLN2 Display: scaling with standard units (m3/s. l/s. m. inch. …). example: 1 … 5 m3/s |
| Product Lifecycle (PLM) | PM300:Active Product |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | Not available |
| LKZ_FDB/ CatalogID | FI01-1 |
| Product Group | 4770 |
| Group Code | R3P0 |
| Country of origin | France |
| Compliance with the substance restrictions according to RoHS directive | Since: 17/09/18 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
