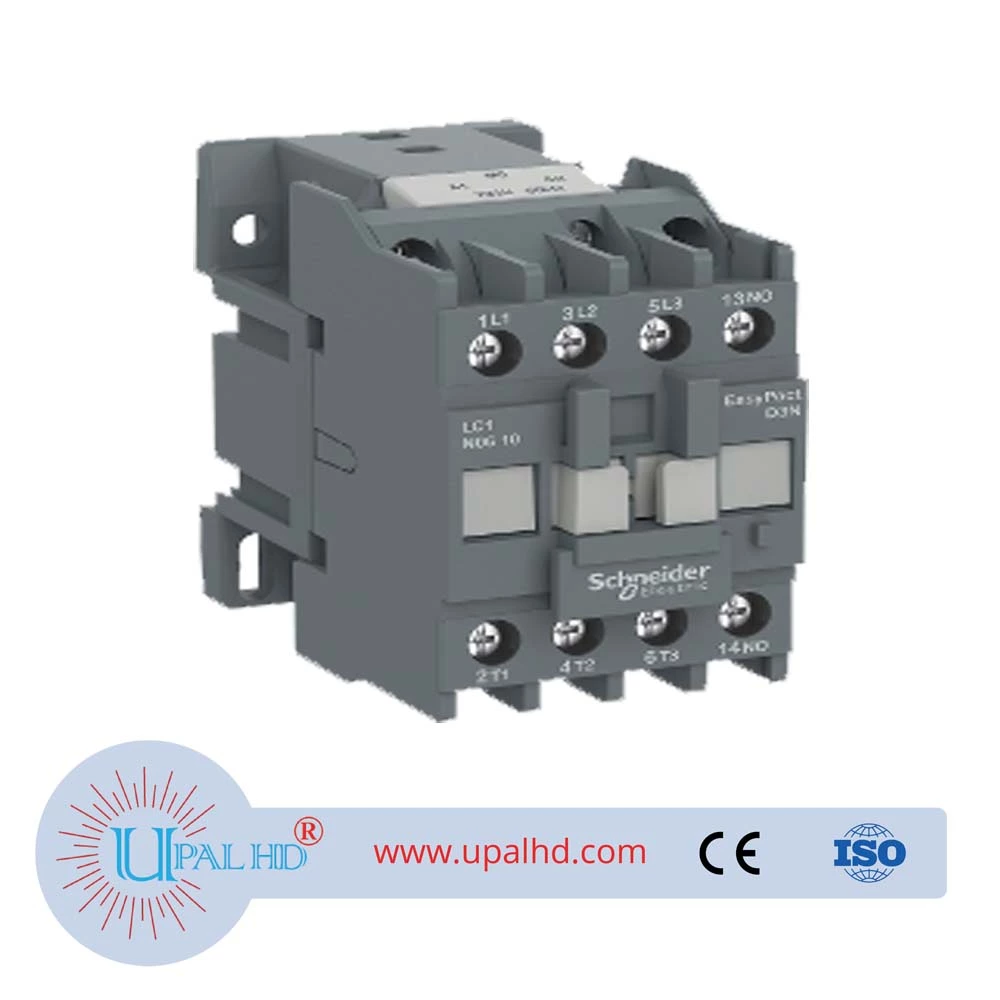

Spot Schneider AC contactor LC1N1810Q5N AC380V
Spot Schneider AC contactor LC1N1810Q5N AC380V LC1N AC contactor Model Number: LC1N1810Q5N LC1N1810Q5N of EasyPact D3N series is a 3-level AC contactor commonly used in AC-3 and AC-1 occasions. Voltage 690V, rated current 18A, overvoltage category III, pollution degree 3, control circuit thermal current 10A@≤60℃, insulation resistance> 10MΩ, coil voltage 380V@50Hz, 1 normally open contact, electrical life 3600 times/hour, the maximum operating frequency is 1800 times@≤60℃, the product can be clamped or screwed to the mounting plate, the product has passed CCC certification and complies with RoHS and Reach. Spot Schneider AC contactor
Description
PRODUCT INFORMATION OF SCHNEIDER Spot Schneider AC contactor LC1N1810Q5N AC380V
| Product Series | Compact |
|---|---|
| product type | Contactor |
| product short name | LC1N |
| Application field of contactor | Applied to AC loads with power factor greater than or equal to 0.95 Applied to non-inductive or slightly inductive loads, resistance furnaces |
| use category | AC-1 AC-4 AC-3 |
| number of poles | 3P |
| Rated working voltage [Ue] | Power circuit: <= 690 V AC 50/60 Hz |
| Rated operating current [Ie] | 18 A 60 °C) at <= 440 V AC AC-3 for power circuit 25 A 60 °C) at <= 440 V AC AC-1 for power circuit 7.7 A 60 °C) at< = 440 V AC AC-4 for power circuits |
| [Uc] control circuit voltage | 380V AC 50Hz |
| Motor power (kW) | 4 kW at 220/230 V AC 50/60 Hz 7.5 kW at 380/400 V AC 50/60 Hz 9 kW at 415/440 V AC 50/60 Hz 10 kW at 500 V AC 50/60 Hz 10 kW at 660/690 V AC 50/60 Hz |
| Loop contact type | 3 NO |
| Conventional thermal current [Ith] | 25 A at <60 °C for power circuits |
| Rated making capacity [Irms] | 180 A at 440 V AC for power circuits according to IEC 60947-4-1 140 A AC for auxiliary contacts according to IEC 60947-5-1 |
| Rated breaking capacity | 144 A at 440 V for power circuits conforming to IEC 60947 |
| Rated short-time withstand current [Icw] | 145 A for power circuits at <40 °C – 10 s 84 A for power circuits at <40 °C – 60 s 40 A for power circuits at <40 °C – 600 s |
| Fuses for use with relays | 10 A gG at <= 690 V for type 1 suitable control circuits conforming to IEC 60947-5-1 35 A gG at <= 690 V for type 1 suitable power circuits |
| average impedance | 2.5 mΩ – Ith 32 A 50 Hz for power loop |
| power consumption per pole | 0.81W AC-3 2.6W AC-1 |
| Rated insulation voltage [Ui] | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| pollution level | 3 |
| Rated impulse withstand voltage [Uimp] | 6 kV coil not connected to power circuit conforming to IEC 60947 |
| Mechanical life | 10000000 times |
| Electrical life | 300000 times AC-1 1200000 times AC-3 200000 times AC-4 |
| Control loop characteristics | AC at 50 Hz |
| Control voltage limit | 0.85…1.1 Uc 55 °C run 50 Hz 0.3…0.6 Uc 55 °C release 50 Hz |
| (~50Hz pickup) power consumption (VA) | 95 VA 50 Hz (0.75 20 °C) |
| (~50Hz hold) power consumption (VA) | 8.5 VA 50 Hz (0.3 20 °C) |
| heat dissipation | 2…3 W for control circuits |
| action time | 12…22 ms off 4…19 ms on opening |
| operating frequency | 1800 cycles/h at <60 °C |
| Wiring capacity | Power circuit: screw-on1 1…4 mm² Cable option: flexible cable with wire terminal Power circuit: screw-on2 1…2.5 mm² Cable option: flexible cable with cable terminal Control circuit: screw-on1 1 …4 mm² Cable option: flexible without cable terminals Control circuit: screw-fastened2 1…4 mm² Cable option: flexible without cable terminals Control circuit: screw-fastened1 1…4 mm² Cable option : Flexible wire with wire terminal Control circuit: Bolt tight2 1…2.5 mm² Cable option: Flexible wire with wire terminal Power circuit: Bolt tight1 1.5…6 mm² Cable option: Solid wire without wire terminal Power circuit: Bolt fastening2 1.5…6 mm² Cable selection: Solid without wire terminals Control circuit: Bolt fast1 1.5…6 mm² Cable selection: Solid without wire terminals Control circuit: Bolt fastening 2 1.5…6 mm² Cable option: solid without cable terminals |
| Tightening torque | Power circuit: 1.2 Nm Control circuit: 1.2 Nm |
| Auxiliary contact type | 1 NO |
| Minimum switching voltage | 17 V for control circuits |
| Minimum switching current [Imin] | 5 mA for control loop |
| Insulation resistance | > 10 MΩ for control loops |
| non-overlapping time | 1.5 ms power-on to ensure NC and NO contact 1.5 ms power-off to ensure NC and NO contact |
| installation method | Chassis mounting DIN rail mounting |
| standard | GB 14048.4 EN 60947-1 IEC 60947-4-1 EN 60947-4-1 IEC 60947-1 |
| certified product | CCC |
| IP protection class | IP20 conforming to IEC 60529 |
| Protective measures | TH (pollution degree 3) conforming to IEC 60068 |
| ambient air temperature | -20…70 °C (allowed at Uc) -60…80 °C storage -5…55 °C operation |
| working altitude | 3000 m None |
| Fire resistance and abnormal high temperature resistance | 850 °C conforming to IEC 60695-2-1 |
| Shock and vibration resistance | Shock resistance with contacts open (1.5 gn (5…300 Hz)) shock resistance with contacts closed (3 gn (5…300 Hz)) shock resistance with contacts open (7 gn (11ms)) shock resistance Performance Contact closed state (10 gn (11ms)) |
| high of Spot Schneider AC contactor | 74 mm |
| width of Spot Schneider AC contactor | 45 mm |
| depth of Spot Schneider AC contactor | 80 mm |
| Product Weight | 0.3 kg |
| Warranty of Spot Schneider AC contactor | 18 months |
