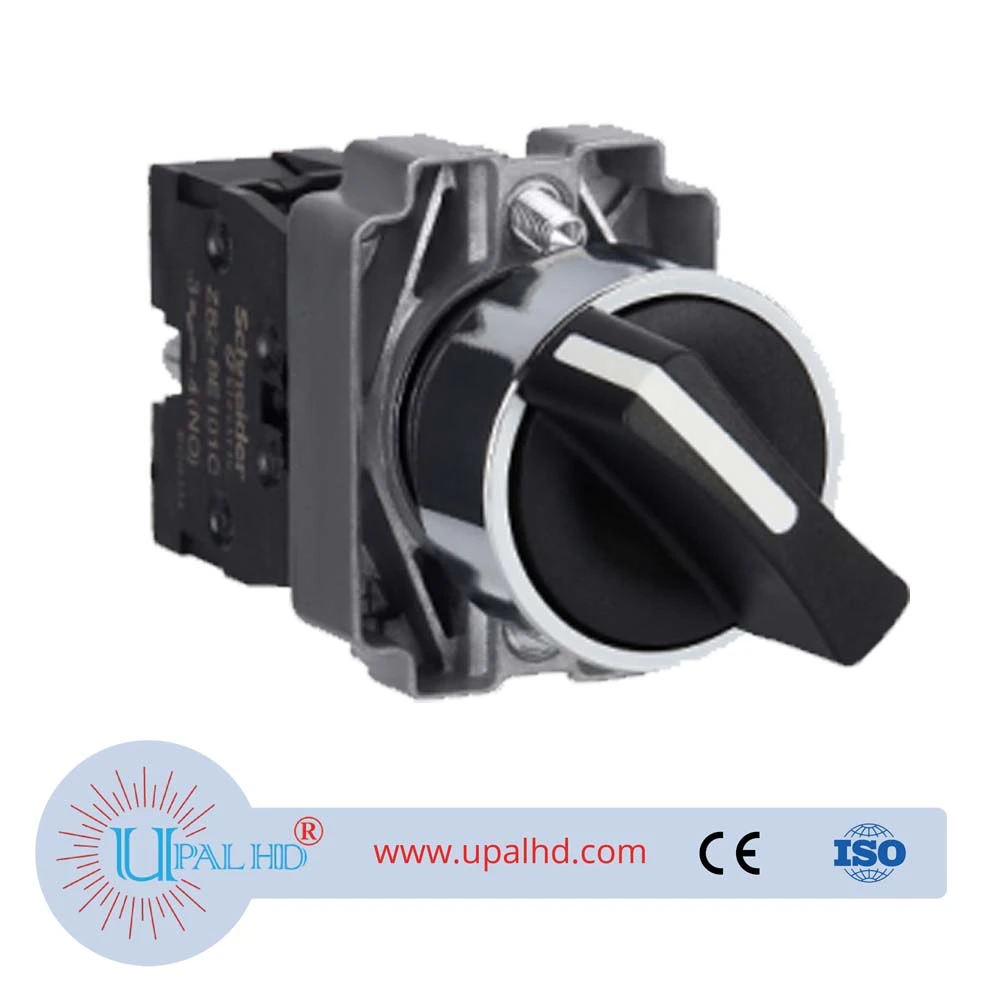

PRODUCT INFORMATION OF SCHNEIDER Spot handle selection switch XB2BD33C
| Product Series | Easy Harmony XB2 |
|---|---|
| product type | Switch |
| product short name | XB2B |
| frame material | Zamak |
| Installation diameter | 22 mm |
| Quantity sold separately | 1 |
| CAD overall width | 30 mm |
| CAD overall height | 40 mm |
| CAD overall depth | 70 mm |
| Product Weight | 0.1 kg |
| Protective treatment | TC/TH |
| storage environment temperature | -40…70°C |
| operating temperature | -25…70°C |
| Type of overvoltage | Class I conforms to IEC 60536 |
| IP protection class | “IP65” conforms to IEC 60529 IP66 |
| Standards compliant | GB 14048.5 IEC 60947-5-1 GB 14048.1 IEC 60947-1 |
| certified product of Spot schneider Schneider handle selection switch XB2BD33C | CCC CE |
| Signal unit head shape of Spot schneider Schneider handle selection switch XB2BD33C | Round |
| Operating head type | Locking |
| joystick shape | Black short handle |
| operating position | Any position |
| Operating head position information | 3 digits |
| contact type | 2 NO |
| contact action | Slow break |
| Mechanical life | 1000000 times |
| Anti-vibration | 15 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| impact resistance | 200 gn half-sine shock conforming to IEC 60068-2-27 |
| model of Spot schneider Schneider handle selection switch XB2BD33C | XB2 |
| device installation | Fixing Holes – Diameter: 22 mm |
| Mounting pitch | >= 30 x 40 mm (panel) – thickness: 1…6 mm |
| fixed mode | Recommended torque for fixing screw head: 0.8 Nm Recommended torque: 1.2 Nm |
| Wiring capacity | Screw-on, <= 1 x 2.5 mm² With screw-on terminals , <= 2 x 1.5 mm² Without screw-on terminals , >= 1 x 0.5 mm² Quick-connect terminals, connection type: 6.3 mm |
| Tightening torque | 0.8…1.2 Nm |
| screw head shape | Cross compatible with Philips no 1 screwdriversCross compatible with pozidriv No 1 screwdriversSlotted compatible with flat Ø 4 mm screwdriversSlotted compatible with flat Ø 5.5 mm screwdrivers |
| contact material | Silver Alloy (Silver/Nickel) |
| Conventional thermal current [Ith] | 10 A conforming to EN/IEC 60947-5-1 |
| Rated insulation voltage [Ui] | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Rated impulse withstand voltage [Uimp] | 6 kV conforming to EN/IEC 60947-1 |
| Rated operating current [Ie] | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 |
| Electrical life | 1000000 cycles, AC-15, 3 A at 240 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, DC-13, 0.27 A at… On 250 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Appendix C |
| electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA at clean ambient conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA at clean ambient conforming to EN/IEC 60947-5-4 IEC 60947-5-4 |
| signal type | Constant |
| Short circuit protection | 10 A gL fuse type gG conforming to IEC 60269-1 |
| Warranty of Spot schneider Schneider handle selection switch XB2BD33C | 18 months |
