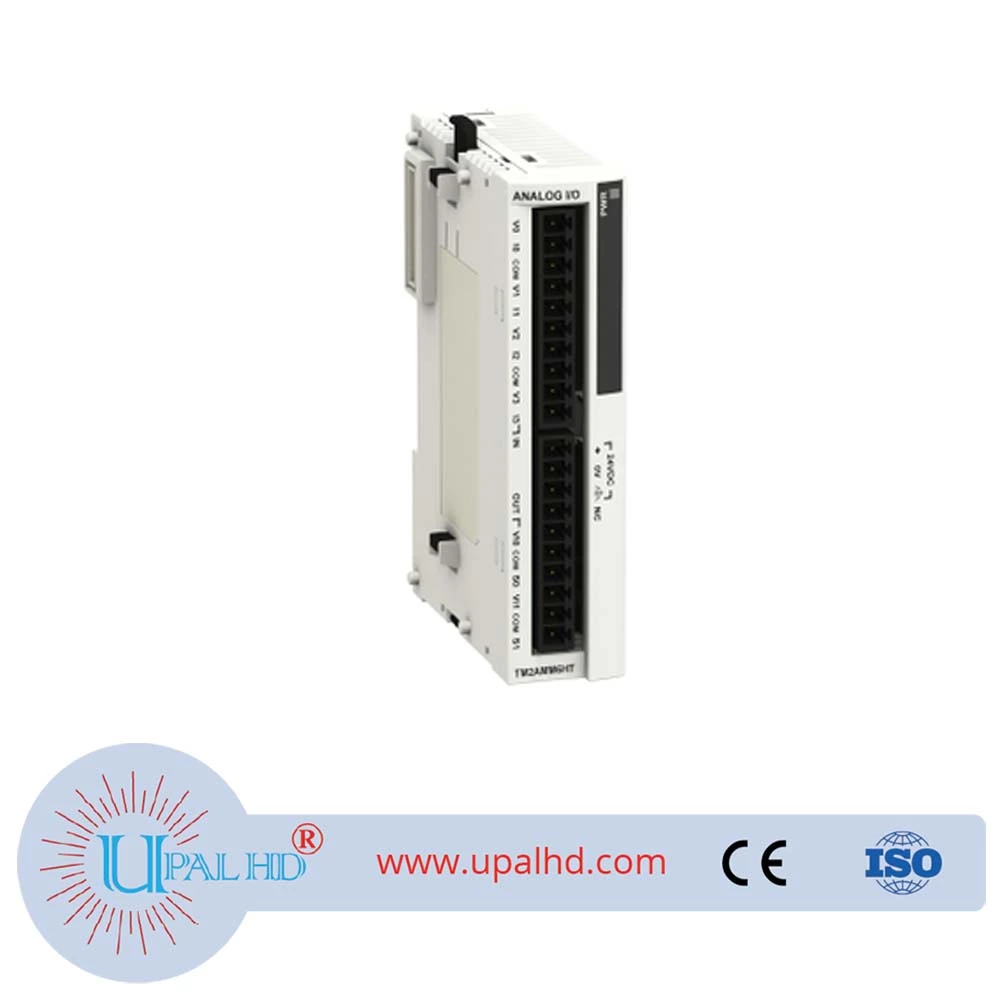

PRODUCT INFORMATION OF SCHNEIDER TM2AMM6HT discrete module, TM2 series PLC module spot
| Range of product | Modicon M238 logic controller |
|---|---|
| Product or component type | Input/output analog module |
| Analogue input number | 4 |
| Input level | High level |
| analogue input type | Current 4…20 mA non differential voltage 0…10 V non differential |
| Analogue output number | 2 |
| analogue output type | Current: 4…20 mA Voltage: 0…10 V |
| Cross talk | <= 2 LSB |
| Range compatibility | Advantys OTB Twido |
| analogue input resolution | 12 bits |
| Analogue output resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage 4 µA current current |
| permissible continuous overload | 40 mA, analogue input type: current 13 V, analogue input type: voltage |
| input impedance | >= 1 Ohm voltage <= 250 MOhm current |
| Load type | Resistive |
| load impedance ohmic | >= 2000 Ohm voltage <= 300 Ohm current |
| Stabilisation time | 20 ms |
| Conversion time | 20 ms + 1 controller cycle time |
| sampling duration | 16 ms |
| acquisition period | 16 ms per channel + 1 controller cycle time |
| measurement error | +/- 0.5 % of full scale 0…10 V at 25 °C +/- 0.5 % of full scale 4…20 mA at 25 °C +/- 0.9 % of full scale 0…10 V at 25 °C +/- 0.9 % of full scale 4…20 mA at 25 °C |
| temperature coefficient | +/- 0.02 %FS/°C, analogue output type: 0…10 V +/- 0.02 %FS/°C, analogue output type: 4…20 mA +/-0.015 %FS/°C, analogue input type: 0…10 V, analogue output type: 0…10 V +/-0.015 %FS/°C, analogue input type: 4…20 mA, analogue output type: 4…20 mA |
| repeat accuracy | +/- 1 %FS for output +/-0.5 %FS for input |
| non-linearity | +/- 0.4 %FS, analogue input type: current +/- 0.4 %FS, analogue input type: voltage +/- 0.5 %FS, analogue output type: current +/- 0.5 %FS, analogue output type: voltage |
| Output error | +/- 1 %FS |
| Output ripple | <= 1 LSB |
| total error | +/- 1.5 %FS, analogue output type: current +/- 1.5 %FS, analogue output type: voltage +/-1 %FS, analogue input type: current, analogue output type: current +/-1 %FS, analogue input type: voltage, analogue output type: voltage |
| Type of cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| electrical connection | 1 removable screw terminal block |
| current consumption | 60 mA at 5 V DC internal 80 mA at 24 V DC external |
| Product weight | 0.085 kg |
| dielectric strength | 1500 V between the I/O and the external supply circuit 800 V between I/O channel 800 V between the I/O and internal logic |
| Width | 23.5 mm |
| Depth | 70 mm |
| Height | 90 mm |
| Warranty | 18 months |
