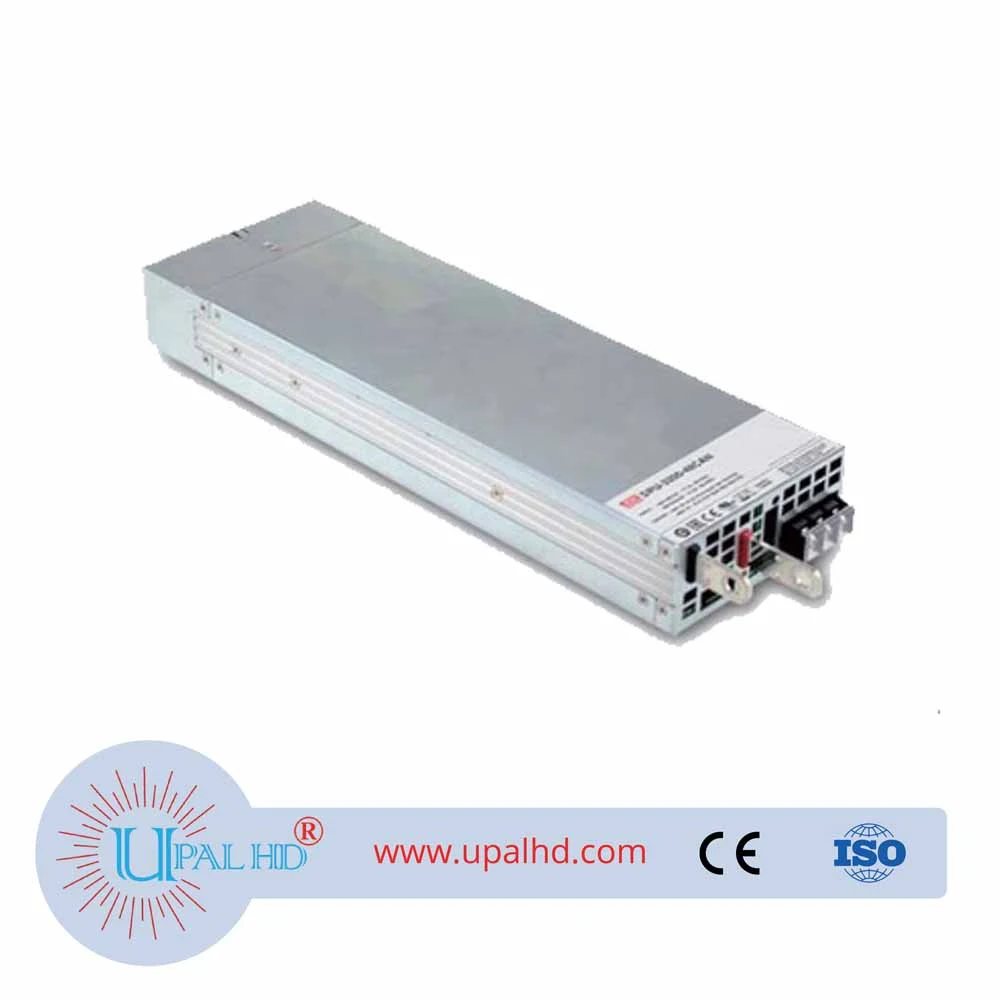

Spot Taiwan Mingwei DPU-3200-48 switching power supply efficient PFC parallel adjustable voltage
Spot Taiwan Mingwei DPU-3200-48 switching power supply efficient PFC parallel adjustable voltagel Single output power supply Model Number: DPU-3200-48 Switching Power Supplies 3216W 48V 67A 1U Power Supply
Description
PRODUCT INFORMATION OF MEAN WELL Spot Taiwan Mingwei DPU-3200-48 switching power supply efficient PFC parallel adjustable voltage
| Manufacturer | MEAN WELL |
|---|---|
| Manufacturers Part # | DPU-3200-48 |
| Lead Time | On Order with Factory |
| Industry Aliases | 709-DPU3200-48 |
| Factory Pack Quantity | 1 |
| Connection Type | Screw Terminal |
| Cooling Method | Internal Fan |
| Dimensions | 12.83 x 4.21 x 1.61″ |
| Driving Method | Constant Current |
| Efficiency | 94.5% |
| Industry | Datacom, Industrial |
| Input Type | AC – Class I |
| Input Voltage Nominal | 100-240 VAC |
| Isolation | 3000 VAC |
| Mechanical Style | Open / Enclosed Frame |
| Mounting | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature | – 30 to + 70°C (see derating) |
| Output Amps 1 | 67 A |
| Output Voltage V1 Nominal | 48 VDC |
| Package Type | Enclosed with Fan |
| PFC | Yes |
| Power | 3216 W |
| Subcategory | AC-DC Power Supply |
