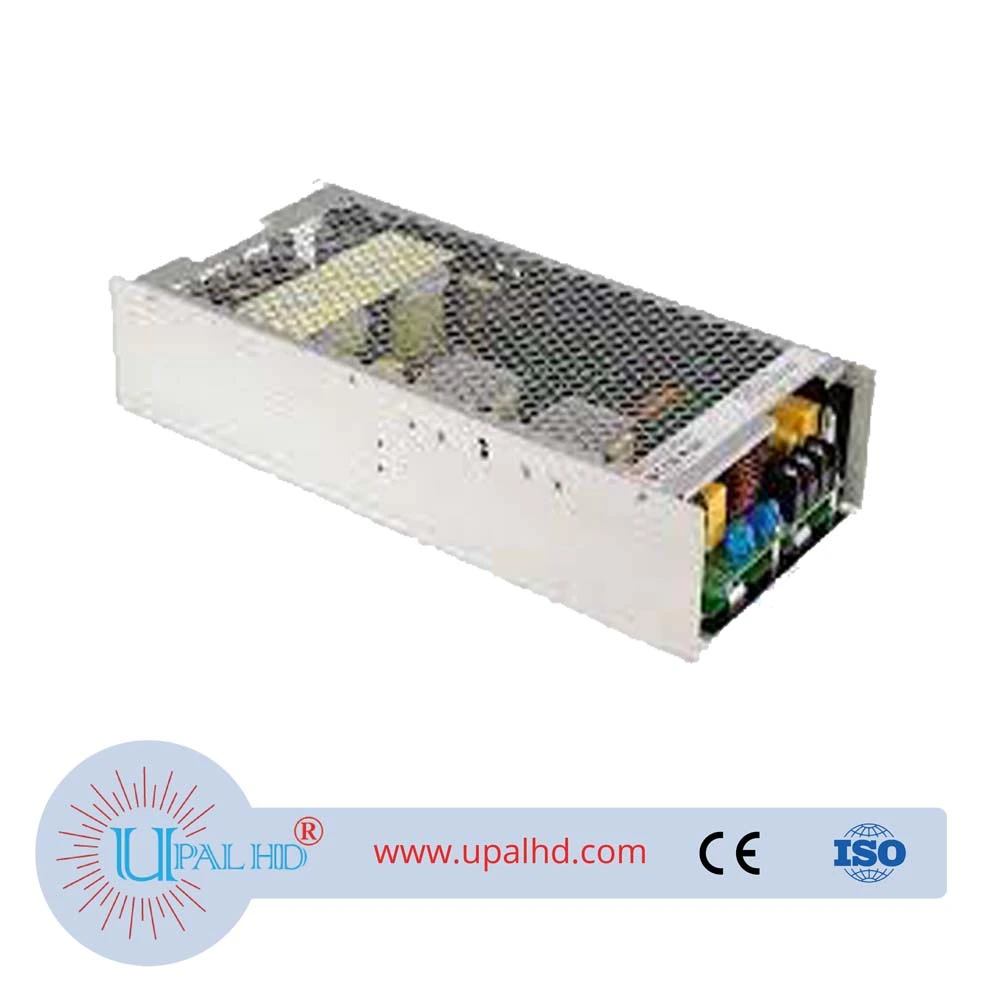

PRODUCT INFORMATION OF MEAN WELL Taiwan MEAN WELL UHP-2500 series 24V ultra-thin ultra-narrow active PFC switching power supply
| Manufacturer | MEAN WELL |
|---|---|
| Manufacturers Part # | UHP-2500-24 |
| Industry Aliases | 709-UHP-2500-24 |
| Packaging | Box |
| Factory Pack Quantity | 1 |
| Connection Type | Screw Terminal |
| Convection Rating Temp | 45°C |
| Cooling Method | Air-Cooled, Conduction, Convection |
| Dimensions | 12.20 x 5.51 x 2.36″ |
| Efficiency | 95% |
| Industry | Datacom, Industrial |
| Input Type | AC – Class I |
| Input Voltage Nominal | 100-240 VAC |
| Isolation | 3750 VAC |
| Mechanical Style | Open / Enclosed Frame |
| Mounting | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature | – 30 to + 70°C (see derating) |
| Output Amps 1 | 104.2 A |
| Output Voltage V1 Nominal | 24 VDC |
| Package Type | Enclosed |
| PFC | Yes |
| Power | 2500 W |
| Subcategory | AC-DC Power Supply |
| Weight | 3.5 KG |
