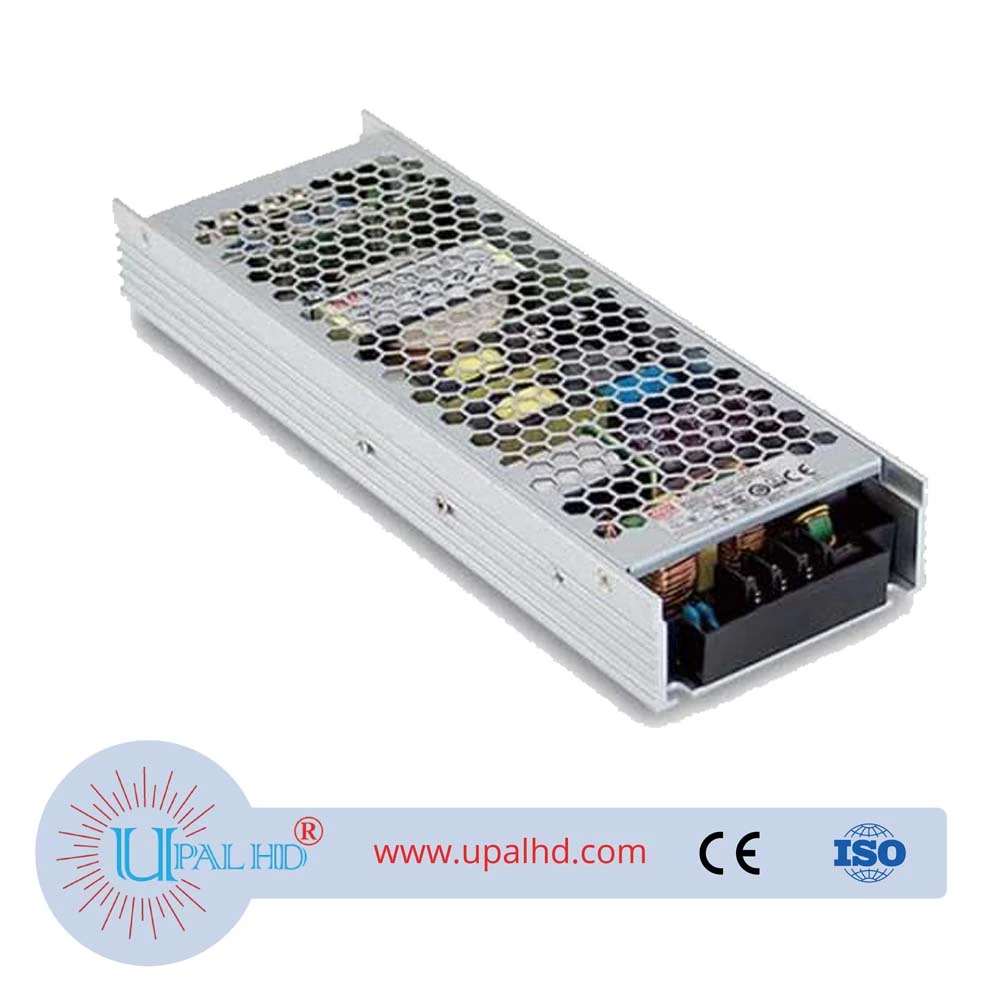

Taiwan MEANWELL (MEANWELL) UHP-500-36 high-performance ultra-thin power supply with complete anti-seismic function
Taiwan MEANWELL (MEANWELL) UHP-500-36 high-performance ultra-thin power supply with complete anti-seismic function AC/DC power supply Model Number: UHP-500-36 Switching Power Supplies 500.4W 36V 13.9A W/ PFC
Description
PRODUCT INFORMATION OF MEAN WELL Taiwan UHP-500-36 high-performance ultra-thin power supply with complete anti-seismic function
| Manufacturer | MEAN WELL |
|---|---|
| Manufacturers Part # | UHP-500-36 |
| Industry Aliases | 709-UHP-500-36 |
| Factory Pack Quantity | 1 |
| Connection Type | Screw Terminal |
| Convection Rating | 500 W |
| Convection Rating Temp | 40°C |
| Cooling Method | Conduction, Convection |
| Dimensions | 9.13 x 3.19 x 1.22″ |
| Efficiency | 95% |
| Environmental Conditions | General Purpose |
| Industry | Datacom, Industrial, LED Lighting |
| Input Type | AC – Class I |
| Input Voltage Nominal | 100-240 VAC |
| Isolation | 3750 VAC |
| Mechanical Style | Open / Enclosed Frame |
| Mounting | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature | – 30 to + 70°C (see derating) |
| Output Amps 1 | 13.9 A |
| Output Voltage V1 Nominal | 36 VDC |
| Package Type | Enclosed |
| PFC | Yes |
| Power | 500 W |
| Subcategory | AC-DC Power Supply |
| Weight | 905 g |
