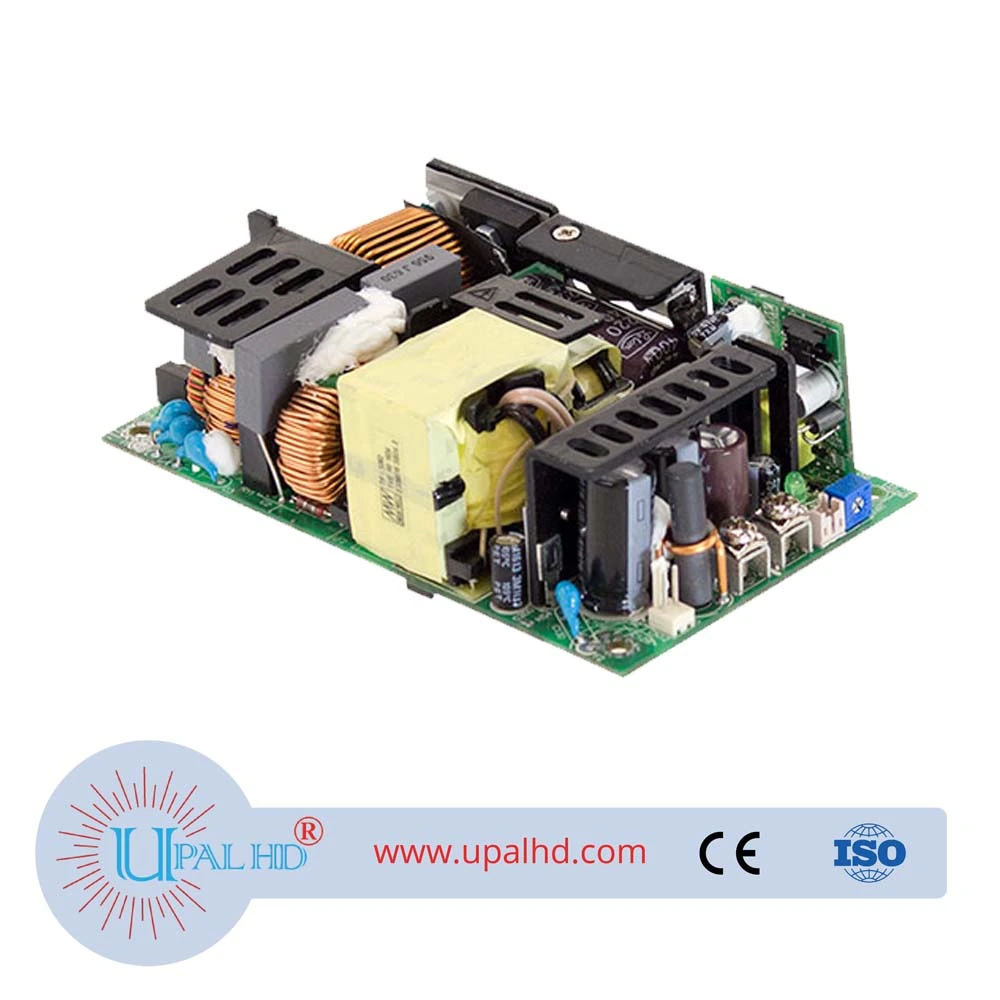

PRODUCT INFORMATION OF MEAN WELL Taiwan Mingwei EPP-400 bare board power supply 18V high efficiency and low loss with PFC
| Manufacturer | MEAN WELL |
|---|---|
| Manufacturers Part # | EPP-400-18 |
| Lead Time | 22 Week Lead Time |
| Industry Aliases | 709-EPP-400-18 |
| Factory Pack Quantity | 1 |
| Compliance | CE, EAC |
| Connection Type | JST/Screw Terminal |
| Convection Rating | 250.5 W |
| Cooling Method | Air-Cooled, Convection |
| Dimensions | 5.00 x 3.00 x 1.38″ |
| Efficiency | 93% |
| Industry | Industrial |
| Input Type | AC, DC |
| Isolation | 3000 VAC |
| Mechanical Style | Open / Enclosed Frame |
| Mounting | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature | – 40 to + 90°C |
| Output Amps 1 | 22.3 A |
| Output Voltage V1 Nominal | 18 VDC |
| Package Type | Open Frame |
| PFC | PFC |
| Power | 401.4 W |
| Standard Packaging Size | 3 x 5 |
| Subcategory | AC-DC Power Supply |
| Weight | .39 kg |
