Description

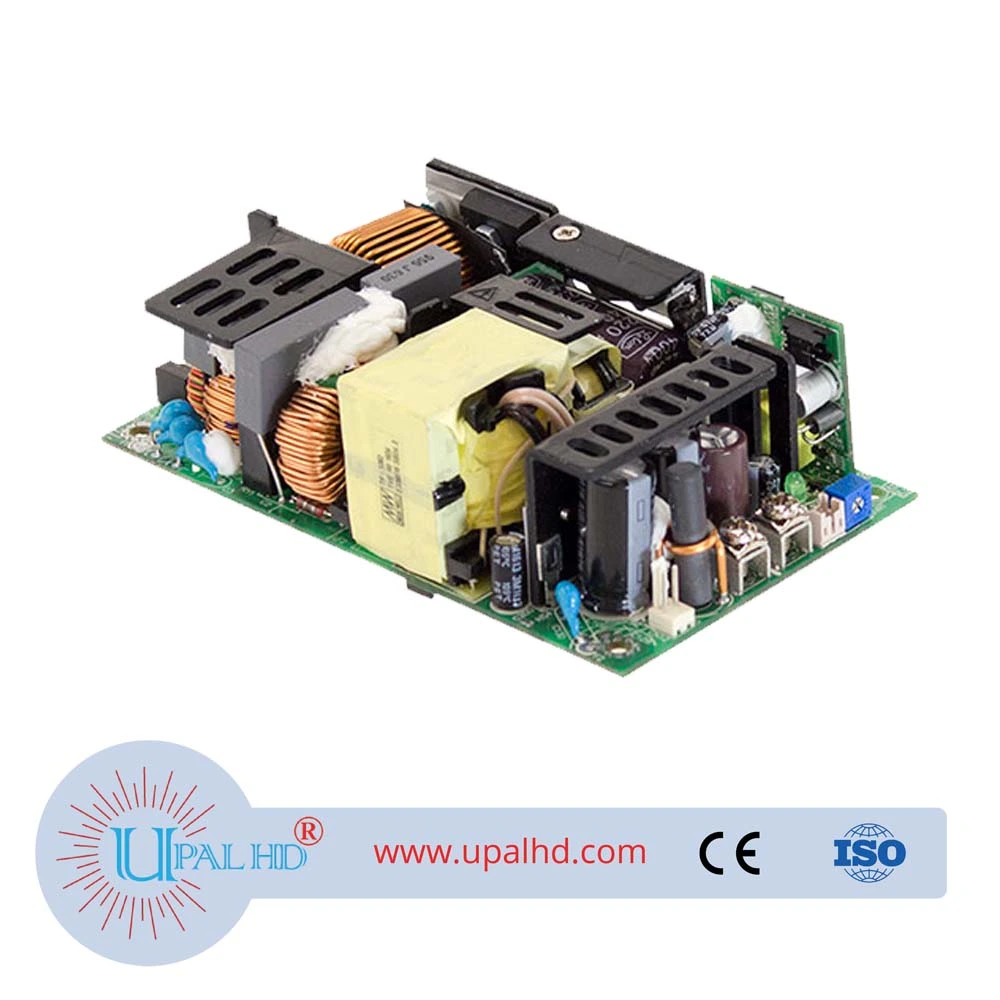

PRODUCT INFORMATION OF MEAN WELL Taiwan Mingwei EPP-400 bare board power supply 48V high efficiency and low loss with PFC
| Manufacturer | MEAN WELL |
|---|---|
| Manufacturers Part # | EPP-400-48 |
| Industry Aliases | 709-EPP400-48, |
| Factory Pack Quantity | 1 |
| Application | General Purpose |
| Connection Type | JST/Screw Terminal |
| Convection Rating | 250 W |
| Cooling Method | Air-Cooled, Convection |
| Dimensions | 5.00 x 1.38 x 3.00″ |
| Efficiency | 94.00% |
| Environmental Conditions | General Purpose |
| Industry | Industrial |
| Input Type | AC |
| Mechanical Style | Open / Enclosed Frame |
| Mounting | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature | -30 to +70°C, derate linearly from 50-70°C to 60% power |
| Output Amps 1 | 8.4 A |
| Output Voltage V1 Nominal | 48 V |
| Package Type | Open Frame |
| Power | 400 W |
| Standard Packaging Size | 3 x 5 |
| Subcategory | AC-DC Power Supply |
| Weight | .39 kg |
