TM2DRA16RT discrete module, TM2 series PLC module spot

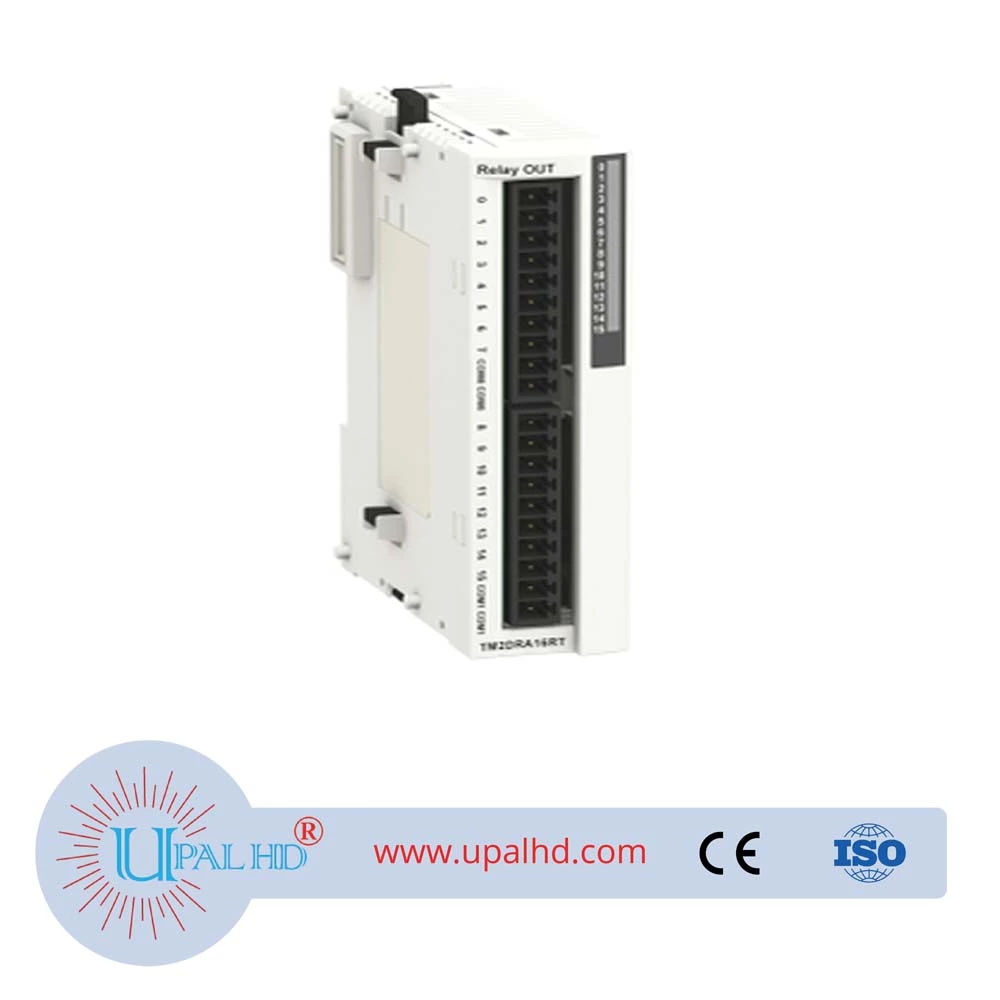

TM2DRA16RT discrete module, TM2 series PLC module spot Uncategorized Model Number: TM2DRA16RT This digital output module is part of Modicon TM2 expansion modules It consists in 16 N/O relay outputs 230V/30 V dc. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm.
Description
PRODUCT INFORMATION OF SCHNEIDER TM2DRA16RT discrete module, TM2 series PLC module spot
| Range of product | Modicon M238 logic controller |
|---|---|
| Product or component type | Discrete output module |
| Discrete output number | 16 |
| Discrete output type | Relay |
| Range compatibility | Twido Advantys OTB |
| Discrete output function | 1 NO |
| Current per channel | 2 A |
| Maximum current per output common | 8 A |
| Number of common point | 2 |
| Contact resistance | 45 mOhm |
| response time | <= 10 ms from state 0 to state 1 for input <= 5 ms from state 1 to state 0 for input |
| minimum switching current | 0.1 mA at 0.1 V DC |
| isolation between channels | 1500 V for 1 minute |
| isolation between channels and internal logic | 2300 V for 1 minute |
| isolation between output channels group | 1500 V for 1 minute |
| Mechanical durability | 20000000 cycles |
| electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) 100000 cycles 2 A 240 V AC resistive 100000 cycles 2 A 30 V DC resistive |
| current consumption | 30 mA at 5 V DC at state 1 for all output 40 mA at 24 V DC at state 1 for all output |
| local signalling | 1 display block |
| electrical connection | 1 removable screw terminal block |
| Mounting support | 35 mm symmetrical DIN rail |
| Product weight | 0.145 kg |
| Depth | 84.6 mm |
| Height | 90 mm |
| Width | 27.3 mm |
| Warranty | 18 months |
