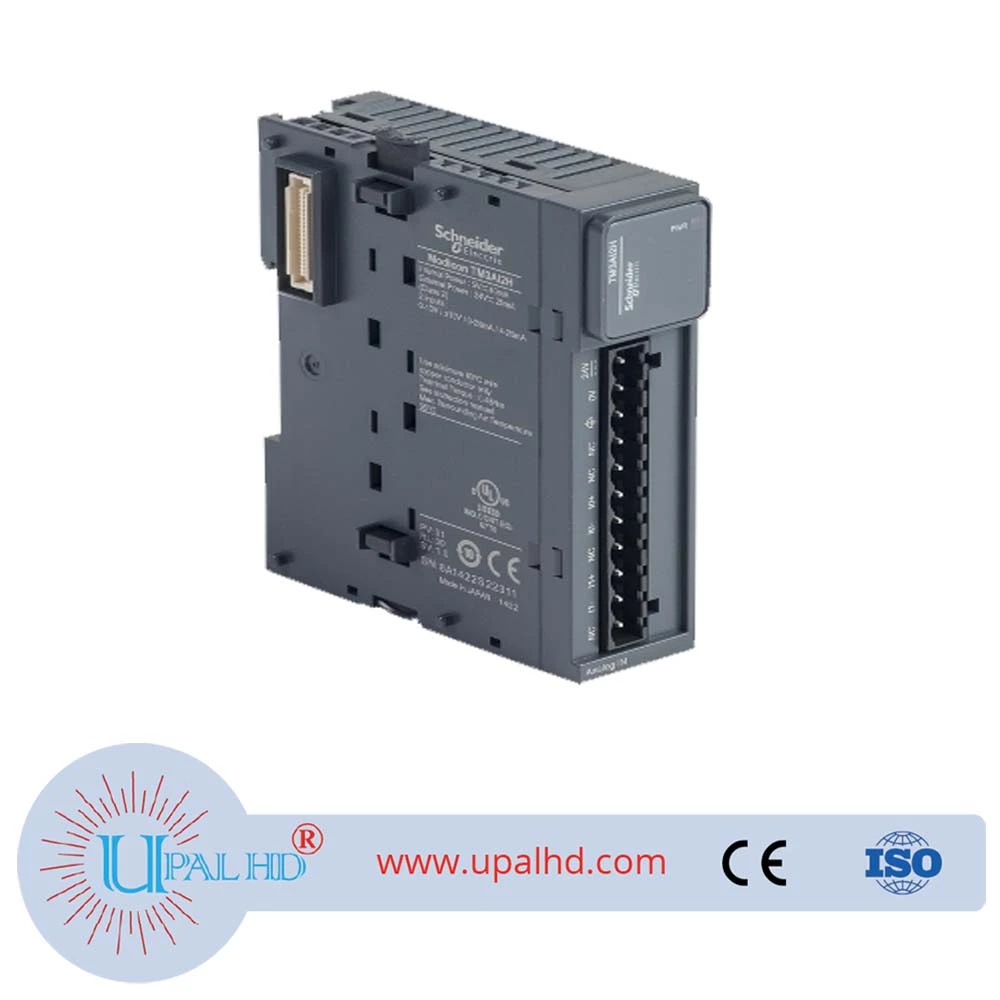

TM3AI2H plc module, TM3 series PLC module spot free shipping
TM3AI2H plc module, TM3 series PLC module spot free shipping Uncategorized Model Number: TM3AI2H This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 2 inputs with 15bit + sign and 16bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC via bus connector no load, 40mA at 5V DC via bus connector full load, 25mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers. TM3AI2H plc module
Description
PRODUCT INFORMATION OF SCHNEIDER TM3AI2H plc module, TM3 series PLC module spot free shipping
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Analog input module |
| Range compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| Analogue input number | 2 |
| analogue input type | Current 4…20 mA current 0…20 mA voltage 0…10 V voltage – 10…10 V |
| analogue input resolution | 16 bits 15 bits + sign |
| permissible continuous overload | 13 V, analogue input type: voltage 40 mA, analogue input type: current |
| input impedance | <= 50 Ohm current >= 1 MOhm voltage |
| LSB value | 0.153 mV 0…10 Vvoltage 0.305 mV – 10…10 Vvoltage 0.305 µA 0…20 mAcurrent 0.244 µA 4…20 mAcurrent |
| conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| sampling duration | 1 ms |
| absolute accuracy error | +/- 0.1 % of full scale at 25 °C +/- 1 % of full scale |
| Temperature drift | +/- 0.006 %FS/°C |
| repeat accuracy | +/-0.5 %FS |
| non-linearity | +/- 0.01 %FS |
| Cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| type of cable | Twisted shielded pairs cable <30 m for input circuit |
| current consumption | 30 mA at 5 V DC via bus connector no load 40 mA at 5 V DC via bus connector full load 25 mA at 24 V DC via external supply |
| local signalling | 1 LED (green) for PWR |
| electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs and supply |
| insulation | Between input and supply at 1500 V AC Between input and internal logic at 500 V AC |
| Marking | CE |
| surge withstand | 1 kV power supply common mode conforming to EN/IEC 61000-4-5 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5 1 kV input common mode conforming to EN/IEC 61000-4-5 |
| mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height of TM3AI2H plc module | 90 mm |
| Depth of TM3AI2H plc module | 70 mm |
| Width of TM3AI2H plc module | 23.6 mm |
| Product weight | 0.115 kg |
| Standards of TM3AI2H plc module | EN/IEC 61131-2 EN/IEC 61010-2-201 |
| resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2 |
| resistance to electromagnetic fields | 10 V/m 80 MHz…1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz…2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz…3 GHz conforming to EN/IEC 61000-4-3 |
| resistance to magnetic fields | 30 A/m conforming to EN/IEC 61000-4-8 |
| resistance to fast transients | 1 kV (I/O) conforming to EN/IEC 61000-4-4 |
| resistance to conducted disturbances | 10 V 0.15…80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| electromagnetic emission | Radiated emissions – test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions – test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 |
| Immunity to microbreaks | 10 ms |
| ambient air temperature for operation | -10…55 °C horizontal installation -10…35 °C vertical installation |
| Ambient air temperature for storage | -25…70 °C |
| relative humidity of TM3AI2H plc module | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Operating altitude | 0…2000 m |
| Storage altitude of TM3AI2H plc module | 0…3000 m |
| vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail |
| shock resistance of TM3AI2H plc module | 15 gn for 11 ms |
