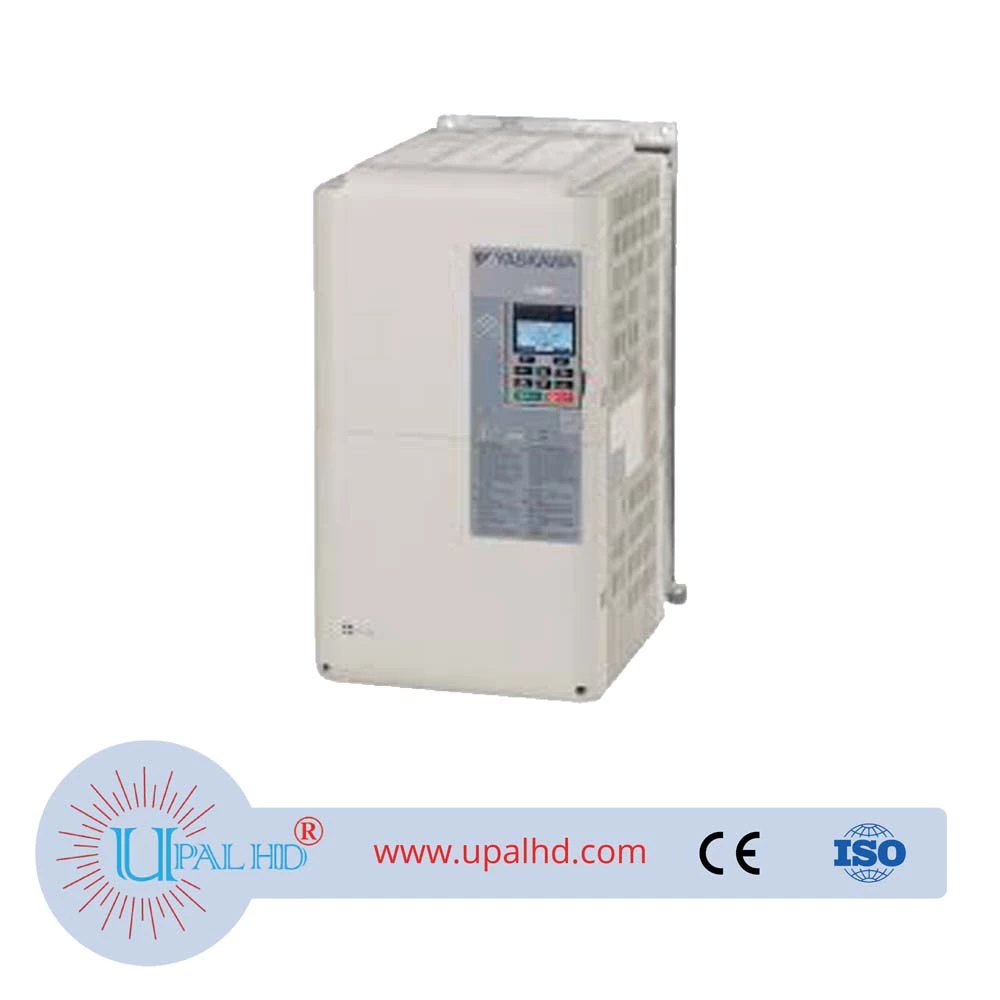

U1000 Industrial MATRIX Drive
U1000 Industrial MATRIX Drive Industrial AC Drives Model Number: U1000 The U1000 is a compact, total all-in-one solution for ultra-low harmonics and/or full regeneration, and is the ultimate choice for power quality and energy savings. Additionally, the U1000 delivers high flexibility and motor control performance to meet a wide variety of application requirements.
Description
PRODUCT INFORMATION OF YASKAWA U1000 Industrial MATRIX Drive
|
Item
|
Specification
|
|---|---|
| Overload Capacity | 150% for 60 sec. (HD), 120% for 60 sec. (ND) |
| Output Frequency | 0~400 Hz |
| Control Methods | Open and Closed Loop Current Vector; Open and Closed Loop V/f |
| Motor Types | Induction Surface Permanent Magnet Interior Permanent Magnet |
| Protective Design | IP00/Open Chassis (IP20/UL Type 1 kit available) |
| Ambient Operating Temperature | -10 to +50C (IP00/Open Chassis) -10 to +40C (with IP20/UL Type 1 kit) |
| Global Certifications | UL, CSA, CE, RoHS |
| Standard I/O | (8) multi-function digital inputs (24Vdc) (3) multi-function analog inputs (0 +/- 10 Vdc, 4-20 mA) (1) multi-function pulse inputs (2) Safe Torque Off inputs (1) fault relay output (form C) (3) multi-function relay outputs (form A) (2) multi-function analog output (0 +/- 10 VDC, 4-20mA) (1) multi-function pulse output (1) safe Torque Off output (monitor) |
| I/O Expansion | 3 Analog Inputs -10 to +10V, 13 bit plus sign, 4 to 20mA 16 Digital Inputs (+24V for BCD speed reference) 2 Analog Outputs (-10 to +10V, 11 bit magnitude) 8 Digital Outputs (6 transistor, 2 relay) |
| Feedback | Incremental Absolute (Stegmann, Heidenhain, Resolver) |
| Network Communication | Standard: Modbus RTU, RS-422/485, 115kbpsOptional: EtherNet IP, DeviceNet, Modbus TCP/IP, PROFINET, PROFIBUS-DP |
| Speed Control Range | 1500:1 Closed Loop Vector (IM and PM Motors) 200:1 Open Loop Vector (IM Motors) 100:1 Open Loop Vector (PM Motors) |
| Speed Control Accuracy | 0.02%: Closed Loop Vector; 0.2%; Open Loop Vector |
| Speed Response | 250 Hz: Closed Loop Vector; 10 Hz: Open Loop Vector |
| Function Block Diagrams | Up to 100 connections, 1ms program scan time |
