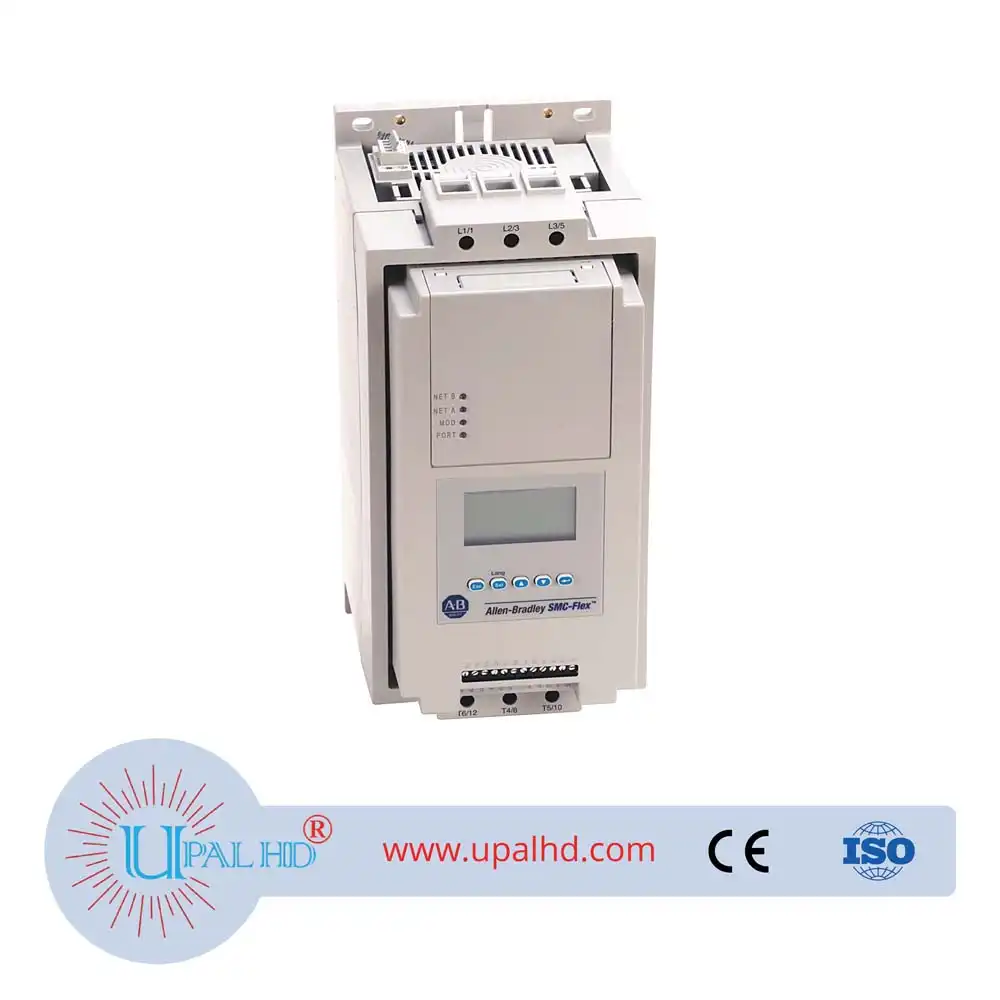

150-F43NBDB Rockwell AB SMC Flex soft starter current 43A.
150-F43NBDB Rockwell AB SMC Flex soft starter current 43A.Soft Start Series Model No: 150-F43NBDB.The 150-F43NBDB is a Smart Motor Controller from the SMC Flex product family that is manufactured by Allen-Bradley. Typically termed as motor soft-starter, this solid-state device has an operating at an input voltage of 200-460VAC, 3-Phase, 50/60Hz. This controller is operable with line-connected and Delta Connected motors. With line-connected motors, it has an output power range of 10 – 30 HP @ 60 Hz; 11 – 22 kW @ 50 Hz, and an output current range of 12-60 Amperes. For Delta-connected motors, it has an output power range of 20 – 50 HP @ 60 Hz; 22 – 37 kW @ 50 Hz, and an output current range of 14.9 – 74 Amperes. This controller is configurable to implement Soft Start, Kickstart, Current Limit, Pump, Control, Dual ramp start, Full Voltage Start, Coast, Soft Stop, and Smart Motor Braking with a built-in Pump Control feature.
Description
PRODUCT INFORMATION OF 150-F43NBDB Rockwell AB SMC Flex soft starter current 43A.
| Manufacturer | Rockwell Automation |
| Output Power | 30 HP |
| Operating Modes: | Soft Start, Kickstart, Current Limit, Pump, Control, Dual ramp start, Full Voltage Start, Coast, Soft Stop and Smart Motor Braking. |
| Input Line Voltage | 200-460 VAC |
| Manufacturer: | Rockwell Automation |
| Metering function | included |
| Compatible motor | standard squirrel-cage induction motor or a Wye-Delta, six-lead motor |
| Mounting | Panel Mount |
| Optional functions | Pump control |
| Supported functions | Soft Start; Selectable kickstart; Current limit start; Dual ramp start, Full Voltage start, Preset Low Speed, Cost-to-rest; Soft Stop and Smart Motor Braking |
| Output Current | 43 A |
| Input frequency | 50 / 60 Hz |
| Product Series | SMC Flex |
| Brand | Allen-Bradley |
| Enclosure Type | Open |
| Control Voltage | 100-240 VAC |
| Part Number/Catalog No. | 150-F43NBDB |
| Product Description | Smart Motor Controller (SMC) |
| Kickstart adjustments: | 0, 0.5, 1.0, or 1.5 s @ 450% Full Load Current (FLA) |
| Product Line | SMC-Flex |
| Brand: | Allen-Bradley |
| Bulletin Number | Solid State Controller |
| Start-time adjustments: | 2, 5, 10, 15, 20, 25, or 30 s |
| Product Family: | SMC Flex Smart Motor Controller |
| Bulletin Number: | 150 |
| Current Limit: | 150%, 250%, 350%, and 450% of full load current |
| Catalog number: | 150-F43NBDB |
| Line Voltage: | 208…460V AC, 3-Phase,47 and 63 Hz |
| Controller Rating | 480A, 400 HP at 460V AC |
| Output current | 12-60 Amperes for line-connected motors; 14.9 – 74 Amperes for Delta connected motors |
| Operating Modes: | Soft-start, Linear Acceleration/Deceleration, Current Limit, Dual Ramp Start, Full Voltage, Soft Stop, Preset Slow Speed |
| Output Power | 10 – 30 HP @ 60 Hz; 11 – 22 kW @ 50 Hz for line-connected motors; 20 – 50 HP @ 60 Hz; 22 – 37 kW @ 50 Hz for Delta connected motors |
| Optional control mode: | Pump Control |
| Output contacts | One (1) Normally Open (N.O.); One (1) Normally Closed (N.C.) contacts |
| Rated Voltage | 500/575V AC |
| Applicable Motor Type | Standard squirrel-cage induction motor or a Wye- Delta, six-lead motor |
| Alarm Contact assignments | Overload, underload, undervoltage, overvoltage, unbalance, jam, stall, and ground fault |
| Line Voltage: | 200…460V AC, 3-Phase, 50 and 60 Hz |
| Control Option | Pump |
| Selectable Overload Trip Class | Trip Class 10, 15, or 20 |
| Control Voltage: | 100-1240 VAC |
| Output Current range: | Line-Connected Motors: 8.6-43 Amperes Delta Connected Motors: 14.9-74 Amperes |
| Metering | Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, and motor thermal capacity usage. |
| Output power range: | Line Connected motors: 10-30 HP; 11-22 kW Delta connected motors: 22-37 kW; 20-50 Hp |
| Built-in status indicator | Stopped, starting, stopping, at speed, alarm, and fault. |
| Auxiliary Contacts | Four (4) Fully-programmable contacts |
| Mounting: | Panel Mount |
| Human Interface Module | Integrated |
| Communication ports | One (1) DPI for optional HMI; One (1) DPI for expansion module |
| Metering | Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, motor thermal capacity usage |
| Status Indication | Stopped, starting, stopping, at speed, alarm, and fault. |
| Protection and Diagnostics | Power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal, undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, communication fault. |
