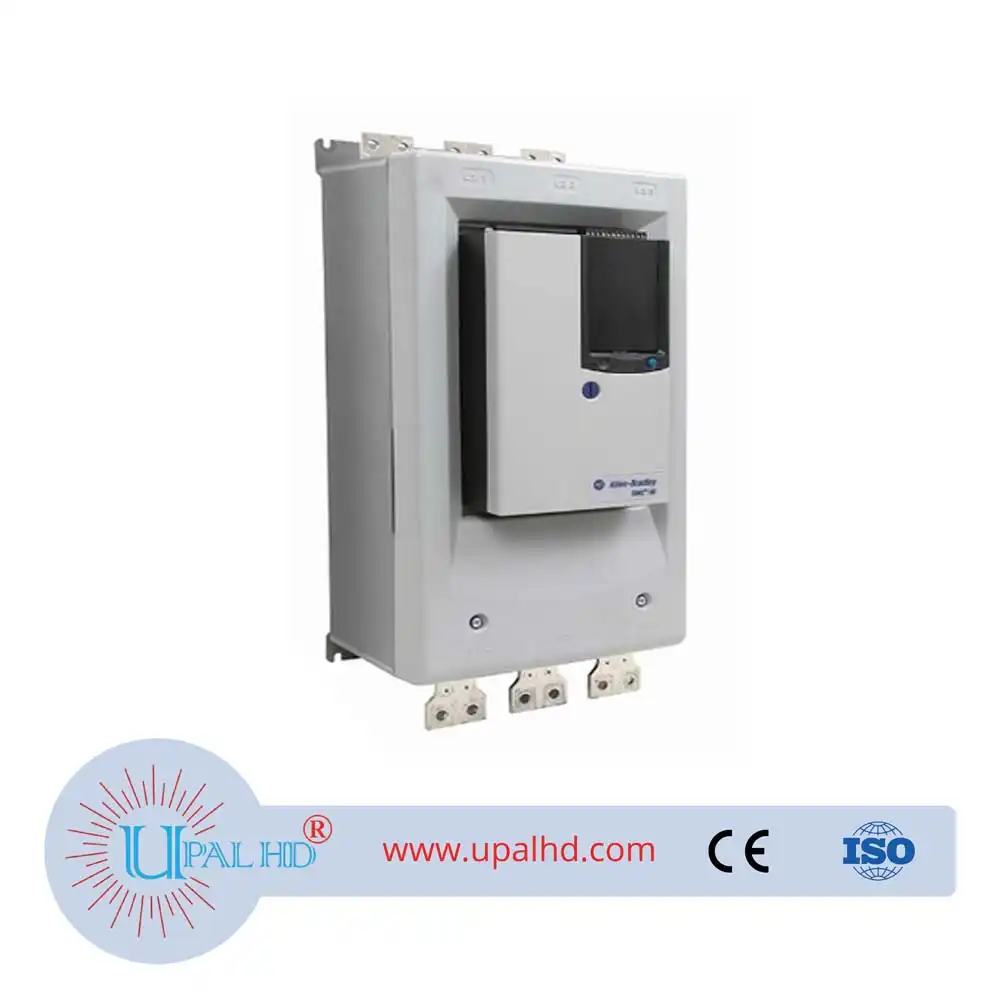

| With display |
No |
| Voltage type for actuating |
AC |
| Rated operating voltage Ue |
200 V |
| Rated control supply voltage at AC 50 Hz |
100 V |
| Rated control supply voltage at AC 60 Hz |
100 V |
| Controller rating |
210 A |
| Continuous duty power structure heat dissipation |
630 W |
| Overload current for line connected devices |
70 A |
| Overload current for delta connected devices |
122 A |
| Controller type |
SMC-50 |
| Trip classes |
5…30 |
| Trip current rating |
118% of motor FLC |
| Base power draw from control module with heat sink fan |
75 W @ 24V DC |
| DV/DT protection |
RC snubber network |
| Repetitive peak inverse voltage rating |
1400V per UL/CSA/NEMA for power circuit |
| Operating frequency |
47…63 Hz or DC for control power |
| Rated impulse voltage |
6000V per IEC for power circuit |
| Dielectric withstand |
2500V per IEC for power circuit |
| Line connected motor current |
Normal/standard duty: 70…210 A @ 400/415/460V AC, 3-phase |
| Delta connected motor current |
Normal/standard duty: 122…363 A @ 400/415/460V AC, 3-phase |
| Transient protection |
Metal oxide varistors: 220 Joules |
| Insulation voltage |
Rated 500V per IEC for power circuit |
| Line connected motor power |
Normal/standard duty: 60…150 Hp @ 460V AC, 60 Hz, 3-phase |
| Delta connected motor power |
Normal/standard duty: 75…200 kW @ 400/415V AC, 50 Hz, 3-phase |
| High capacity available fault current, max |
65 kA @ 600V, typical current 601 A time delay Class J or Class L fuse for inside delta connected motors |
| Utilization category |
MG 1 per UL/CSA/NEMA for normal duty |
| Option power adder |
5VA @ 100…240V AC, 150-SM6 (for each option installed, add to base power to obtain total power requirement) |
| Standard controller feature |
Torque control |
| Standard available fault current, max |
30 kA @ 600V, typical current 800 A inverse time (thermal magnetic) circuit breaker delay fuse for inside delta connected motors |
| Optional controller feature |
Parameter configuration/programming tools |
| Integrated motor overload protection |
Yes |
| Short circuit protection device performance (SCPD) type |
Type 1 |
| Control power ride through |
22 ms for control power |
| Control module battery type |
CR 2032 for control power |
| Overload type |
Electronic – using I2t algorithm |
| Output current, max |
300 mA @ 24V DC supply (terminals 8 and 12) for control power |
