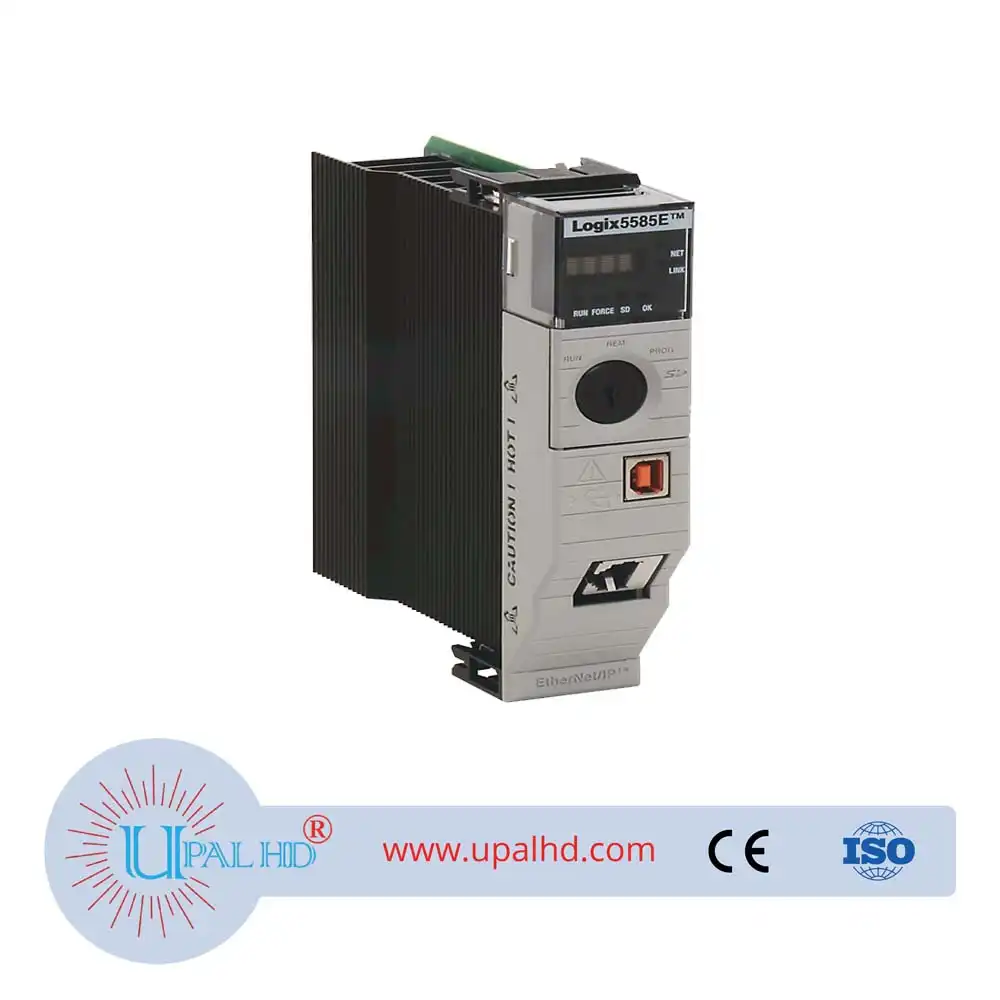

1756-L85E Rockwell AB Control Logix 10 communication module.
1756-L85E Rockwell AB Control Logix 10 communication module.1756 Series Model No: 1756-L85E. The Allen-Bradley/Rockwell Automation 1756-L85E controller is one of the standard controller models that is available from the ControlLogix 5580 product line in the Allen-Bradley ControlLogix series. It is rated for Ethernet communication speeds of 10 Mbps, 100 Mbps, or 1000 Mbps. The 1756-L85E ControlLogix 5580 standard controller is rated for handling 1000 programs per task and up to 32 tasks at a time during operation. This controller has one of the biggest user memory capacities available in the ControlLogix 5580 product line, and its memory capacity is 40 MB. The 1756-L85E ControlLogix 5580 standard controller has no enclosure, and its ambient operating temperature range is from 32 to 140 degrees Fahrenheit at 5 to 95% relative humidity without condensation.
Description
PRODUCT INFORMATION OF 1756-L85E Rockwell AB Control Logix 10 communication module.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-L85E |
| Series | ControlLogix |
| Module Type | Processor Module |
| Tasks | 32 |
| Communications | USB, Ethernet |
| Nonvolatile Memory | 2 GB (1784-SD2 ships with every controller) |
| Communication Speed | 12 MB-Second |
| Communication | 1 port USB; Ethernet |
| Ethernet Nodes | 300 |
| USB Port Communication | Programming, configuration, and on-line edits |
| Ethernet Communication Speed | 10/100/1000 Mbps |
| Current Draw (1.2 Volts DC) | 5 milliamps |
| USB Communication Speed | 12 Mbps |
| Current Draw (5.1 Volts) | 1.2 amps |
| Discrete I/O | 128,000 |
| Analog I/O | 4,000 |
| User Memory | 4MB |
| Power Dissipation | 6.2 Watts |
| Thermal Dissipation | 21.2 BTU-hour |
| Backplane Current (1.2 Volts DC) | 5 mA |
| Isolation Voltage | 50 Volts Continuous |
| Backplane Current (5.1 Volts DC) | 1.2 mA |
| Enclosure | None |
| UPC | 887172361371 |
| Weight | 0.25 kg (0.55 lb) |
| Relative Humidity | 5-95 % |
| Redundancy | Full Support |
| Programming Languages | Relay ladder Structured text Function block SFC” |
