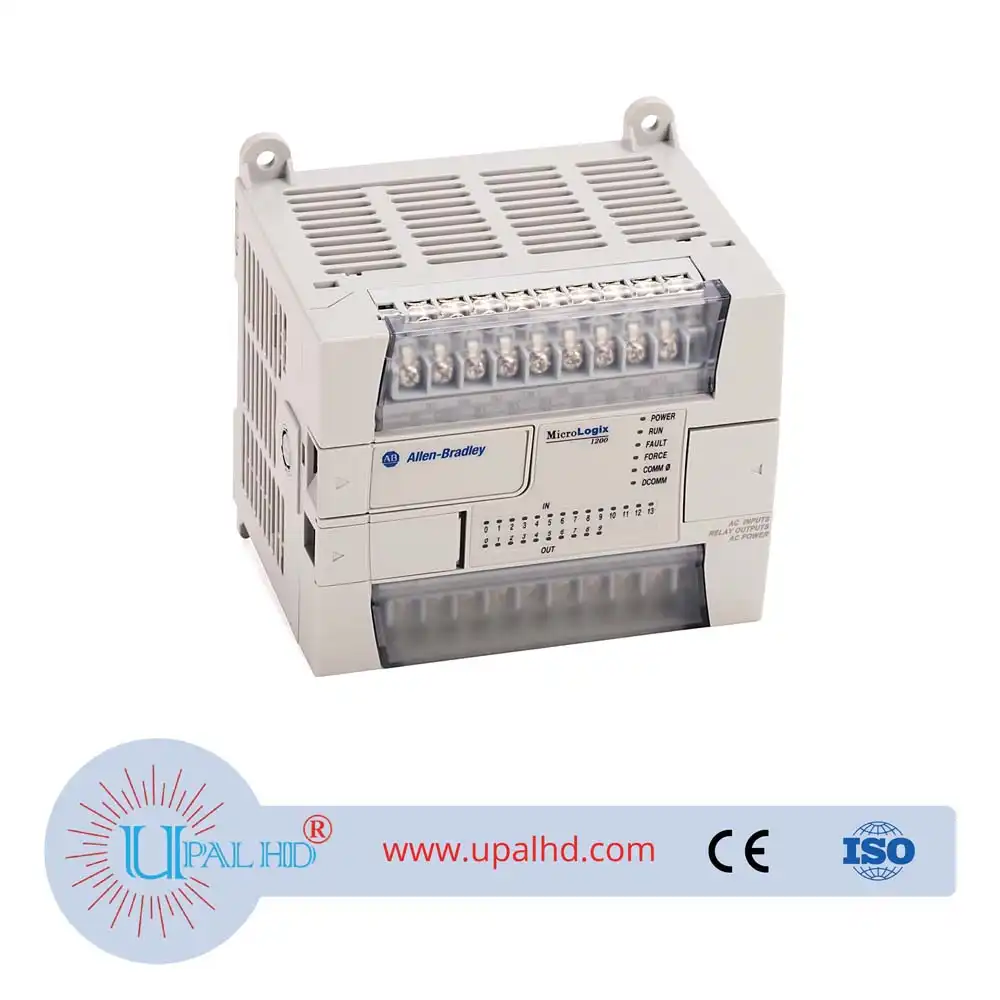

1762-L24BXBR American Rockwell Micrologix1200 PLC new original warranty.
1762-L24BXBR American Rockwell Micrologix1200 PLC. 1762 Series Model No: 1762-L24BXBR. The 1762-L24BXBR programmable controller is an Allen-Bradley/Rockwell Automation MicroLogix 1200 series programmable controller. Its mounting dimensions are 3.5 x 4.33 x 3.43 inches, which makes it one of the smaller MicroLogix 1200 series controllers. The 1762-L24BXBR programmable controller features 10 regular inputs, 4 fast inputs, 5 relay outputs, 4 FET outputs, and 1 high-speed FET output. It uses a Class 2 SELV power supply that is rated for 24 Volts DC and it weighs about 2 pounds. The 1762-L24BXBR programmable controller can operate at 32 to 131 degrees Fahrenheit and it can be stored at -40 to 185 degrees Fahrenheit, and its tolerable non-condensing relative humidity range for both temperatures is from 5 to 95%.
Description
PRODUCT INFORMATION OF 1762-L24BXBR American Rockwell Micrologix1200 PLC.
| Manufacturer | Rockwell Automation |
| Input Circuit Type | 24 VDC |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
| Power Supply Usage | 82 VA |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Shipping Weight | 2.4 pounds |
| Dimensions | Height: 90 mm 104 mm (with DIN latch open); Width: 160 mm; Depth: 87 mm |
| Supported Protocols | DF1, DH-485, ASCII, MODBUS |
| Communication Ports | One (1) 8-Pin mini-DIN serial port; One (1) Programming port |
| Load Current | 10A, minimum |
| Mechanical Cycles | 20,000,000 |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
