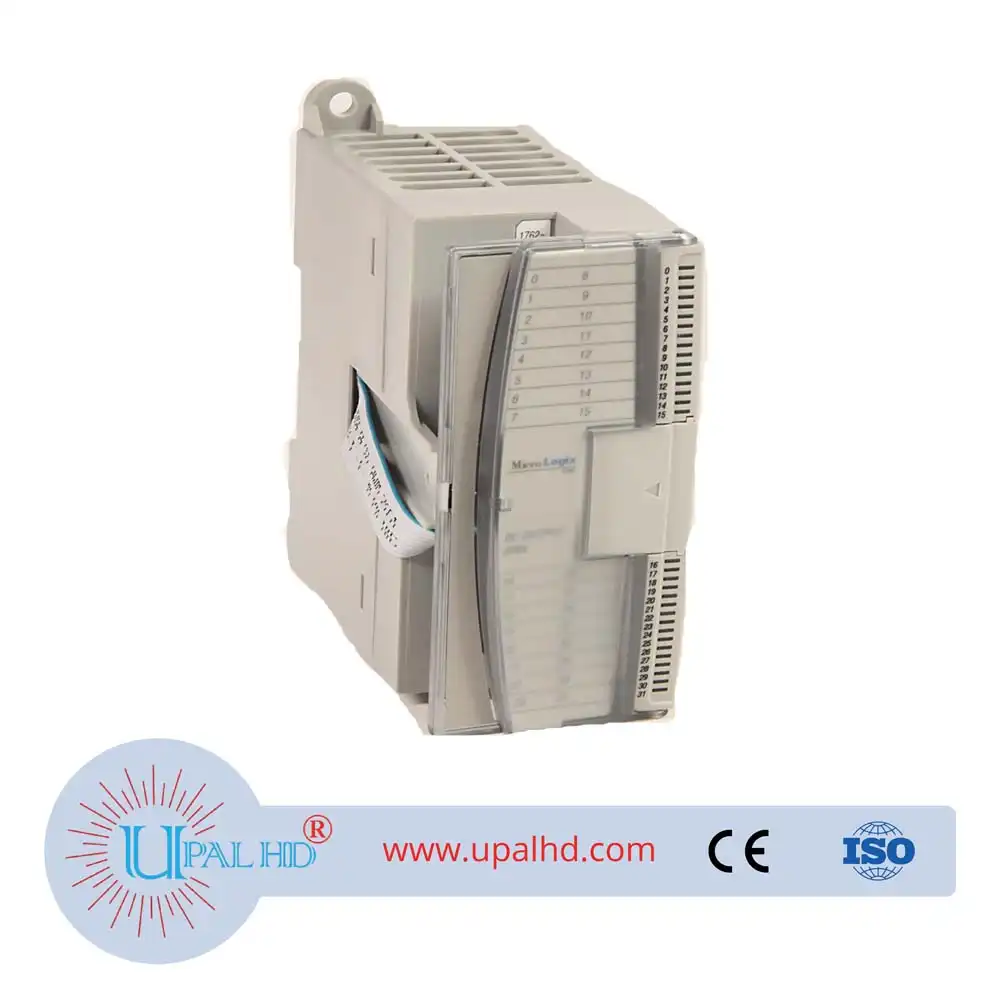

| Number of digital outputs |
32 |
| Suitable for safety functions |
No |
| Digital inputs configurable |
No |
| Digital outputs configurable |
No |
| Type of output voltage |
DC |
| Type of digital output |
Relay |
| Type of electric connection |
Screw connection |
| Heat dissipation, max |
3.4 W @ 26.4 DC |
| Continuous current per common, max |
2.0 A @ 60 °C (140 °F) |
| Continuous current per module, max |
4.0 A @ 60 °C (140 °F) |
| Continuous current per point, max |
0.5 A @ 60 °C (140 °F) |
| Bus current draw, max |
175 mA @ 5V DC |
| Signal delay, resistive load |
On delay: 0.5 ms Off delay: 4.0 ms |
| Power supply distance rating |
6 (The module may not be more than 6 modules away from the power supply.) |
| Isolated groups |
Group 1: Outputs 0…15, Group 2: Outputs 16…31 (internally, connected to common) |
| Surge current, max |
2.0 A (Repeatability is once every 2 s at 60 °C (140 °F) for 10 ms.) |
| Output group to backplane isolation |
Verified by one of the following dielectric tests: 1200V AC for 2 s or 1697V DC for 2 s, 75V DC working voltage (IEC Class 2 reinforced insulation) |
| Output group to output group isolation |
Verified by one of the following dielectric tests: 1200V AC for 2 s or 1697V DC for 2 s, 75V DC working voltage (IEC Class 2 reinforced insulation) |
| Redundancy |
No |
| Short-circuit protection, outputs available |
No |
| Width |
40.4 mm |
| Height |
90 mm |
| Depth |
87 mm |
| Weight |
200 g |
| Shock |
Operating: 30G panel mounted, 3 pulses per axis Relay Operation: 7G |
| Vibration |
Operating: 10…500 Hz, 5G, 0.030 in. max. peak-to-peak, 2 hours per axis Relay Operation: 1.5G |
| On-state voltage drop, max |
0.5 A @ 0.3V DC |
| Off-state leakage current, max |
0.1 mA @ 26.4V DC |
