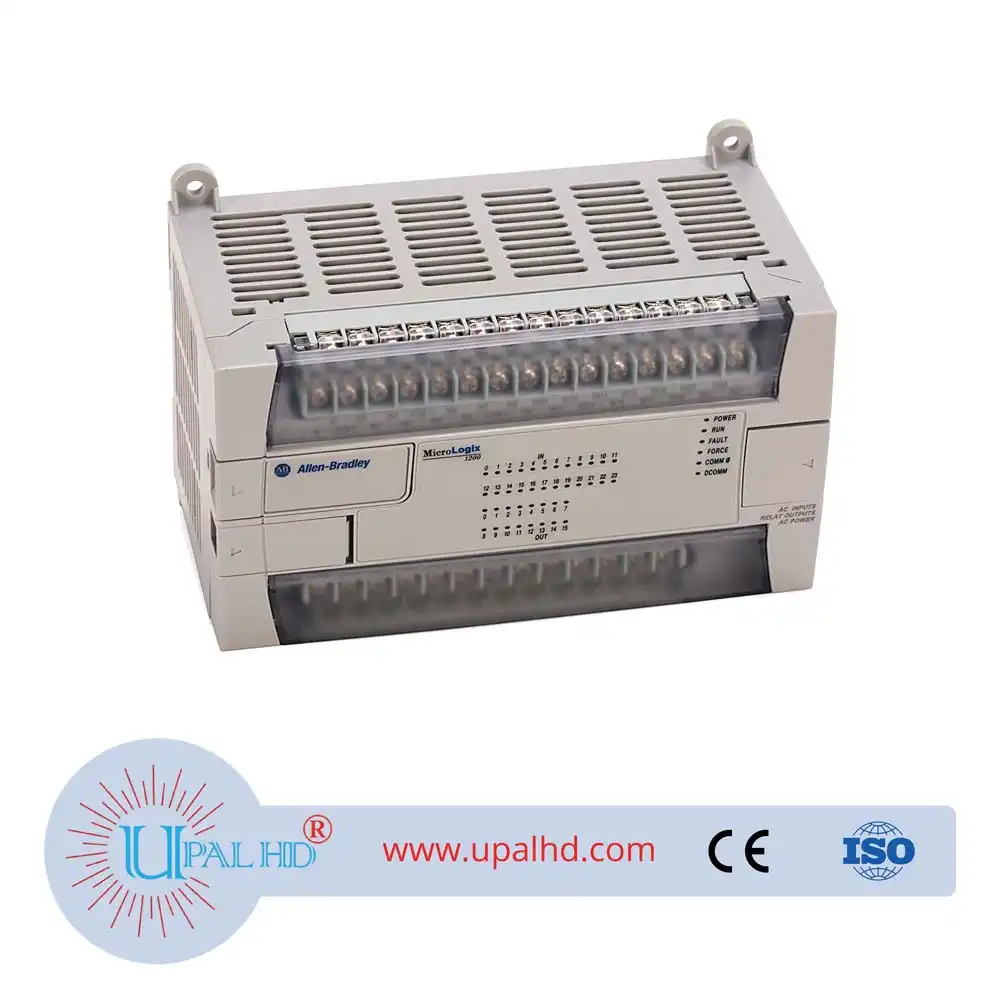

1762-L40BWA American Rockwell Automation Micrologix1200 PLC new original.
1762-L40BWA American Rockwell Automation Micrologix1200 PLC new original. 1762 Series Model No: 1762-L40BWA. The1762-L40BWA is an Allen-Bradley 40-point controller module. This MicroLogix 1200 unit has Twenty-Four (24) inputs compatible for 24 Volts DC input voltage and supports sinking or sourcing wiring configuration. It also has Sixteen (16) Relay output. This controller supports DIN Rail or Panel Mounting.
Description
PRODUCT INFORMATION OF 1762-L40BWA American Rockwell Automation Micrologix1200 PLC.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1762-L40BWA |
| Input Power | 120 to 240 Volts AC |
| Inputs | (20) 24 Volts DC and (4) Fast 24 Volts DC |
| Outputs | (16) Relay |
| No. of Inputs | Twenty-Four (24) |
| No. of Outputs | Sixteen(16) |
| Operating Temperature | 0 to 50 degrees Celsius |
| Input Circuit Type | 24 Volts DC Sink/Source |
| Operating Frequency | 47 to 63 Hertz |
| Output Circuit Type | Relay |
| Internal Power Supply | Yes |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| UPC | 10612598207234 |
| Mechanical Cycles | 20,000,000 |
| Load Current | 10A, minimum |
| Dimensions | Height: 90 mm 104 mm (with DIN latch open); Width: 160 mm; Depth: 87 mm |
| Shipping Weight | 2.4 pounds |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Power Supply Usage | 82 VA |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
