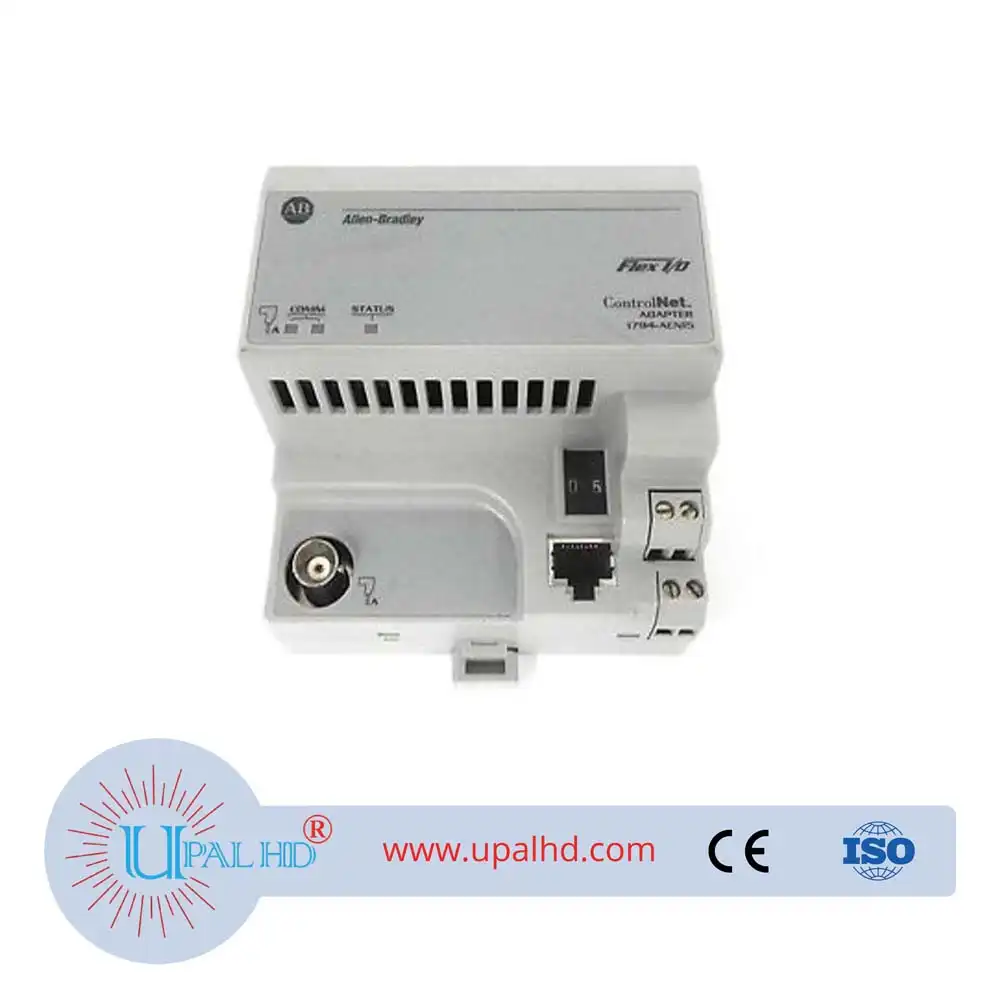

1794-ACN15 Rockwell AB PLC Distributed I/O.
1794-ACN15 Rockwell AB PLC Distributed I/O.1794 Series Model No: 1794-ACN15.The Allen-Bradley 1794-ACN15 is a Flex I/O communication adapter. This module is a supports ControlNet communication protocol and enables ControlNet network connectivity. This module is part of the 1794 Flex IO product Family. It has One (1) ControlNet port that supports communication rate of 5 Mbps and supports up to Eight (8) Flex I/O modules.
Description
PRODUCT INFORMATION OF 1794-ACN15 Rockwell AB PLC Distributed I/O.
| Manufacturer | Rockwell Automation |
| Operating Shock: | 30 g peak acceleration, 11(+1)ms pulse width |
| Vibration: | Tested 5 g @ 10-500Hz per IEC 68-2-6 |
| Storage Temperature: | -40 to 85 C (-40 to 185 F) |
| Operating Temperature: | 0 to 55 C (32 to 131 F) |
| Wire Size: | Single wire connection: 0.33… 2.5 mm2 (22…12 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater 1.2 mm (3/ 64 in.) insulation max Double wire connection: 0.33… 1.3 mm2 (22…16 AWG) solid or stranded (not intermixed) copper wire rated at 75 °C (167 °F) or greater 1.2 mm (3/64 in.) insulation max |
| DeviceNet cable: | Belden RG-6/U or equivalent |
| Mounting: | DIN Rail; Panel Mounting |
| Indicators: | Comm A – red/grn; Comm B- red/grn; I/O Status – red/grn |
| Communication Port: | One (1) ControlNet |
| Product Description: | 1794 ControlNet Adapter Module |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1794-ACN15 |
| Product Type | Redundant Media ControlNet Adapter |
| Voltage | 24 Volts DC |
| Input Voltage Range | 19.2 to 31.2 Volts DC |
| Flexbus Output Current | 640 mA maximum |
| Isolation Voltage | 850 Volts DC |
| Inrush Current | 23A for 2 milliseconds |
| Power Dissipation | 4.6 W maximum at 19.2 Volts DC |
| Communication Rate | 5 Mbps |
| Current Draw | 450 mA maximum |
| UPC | 10612598180605 |
