1794-ADN American Rockwell AB PLC distributed I/O.

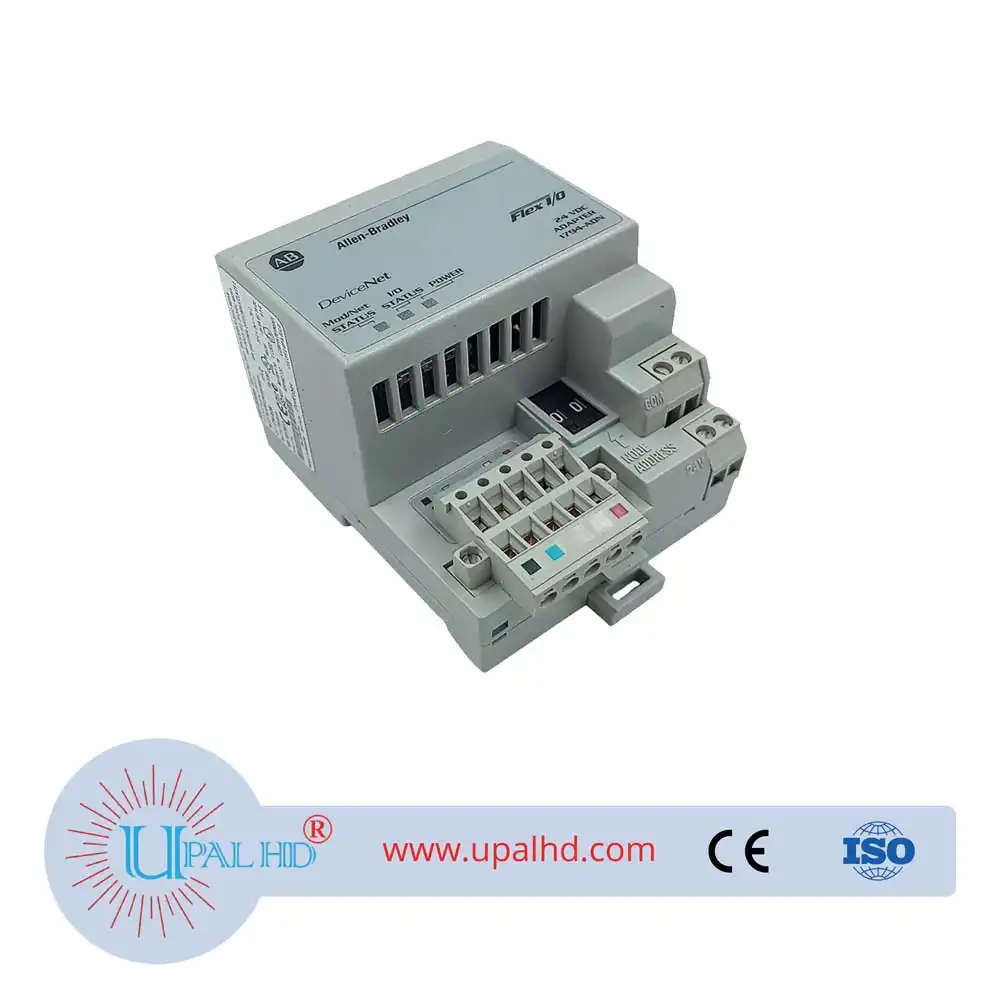

1794-ADN American Rockwell AB PLC distributed I/O.1794 Series Model No: 1794-ADN. The Allen-Bradley 1794-ADN is a Flex I/O communication module. This module is a DeviceNet communication adapter, used with 1794 Flex IO product Family. It connects a Flex I/O rack to the central DeviceNet scanner to allow I/O data exchange. It supports DIN rail or Panel mounting.
Description
PRODUCT INFORMATION OF 1794-ADN American Rockwell AB PLC distributed I/O.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Wire Size: | 12 gauge stranded maximum, 3/64 inch (1.2mm) insulation max. |
| DeviceNet cable: | Belden YR-29832 or equivalent |
| Mounting: | DIN Rail; Panel Mounting |
| Indicators: | Mod/Net Status – red/grn; I/O Status – red/grn |
| Data Transfer speed: | 125KB; 250KB; 500KB |
| Communication Port: | One (1) DeviceNet |
| Product Description: | 1794 DeviceNet Adapter Module |
| Operating Temperature: | 0 to 55 C (32 to 131 F) |
| Storage Temperature: | -40 to 85 C (-40 to 185 F) |
| Vibration: | Tested 5 g @ 10-500Hz per IEC 68-2-6 |
| Part Number/Catalog No. | 1794-ADN |
| Operating Shock: | 30 g peak acceleration, 11(+1)ms pulse width |
| Product Type | DeviceNet Adapter |
| Voltage | 24 Volts DC |
| Input Voltage Range | 19.2 to 31.2 Volts DC |
| Flexbus Output Current | 640 mA maximum 5 Volts DC |
| Isolation Voltage | 50 Volts Continuous |
| Power Consumption | 90 mA maximum |
| Power Dissipation | 7.6W maximum at 19.2 Volts DC |
| Communication Rate | 125KB-500KB |
| UPC | 10612598140166 |
