1794-IB16 American Rockwell AB ControlLogix PLC.

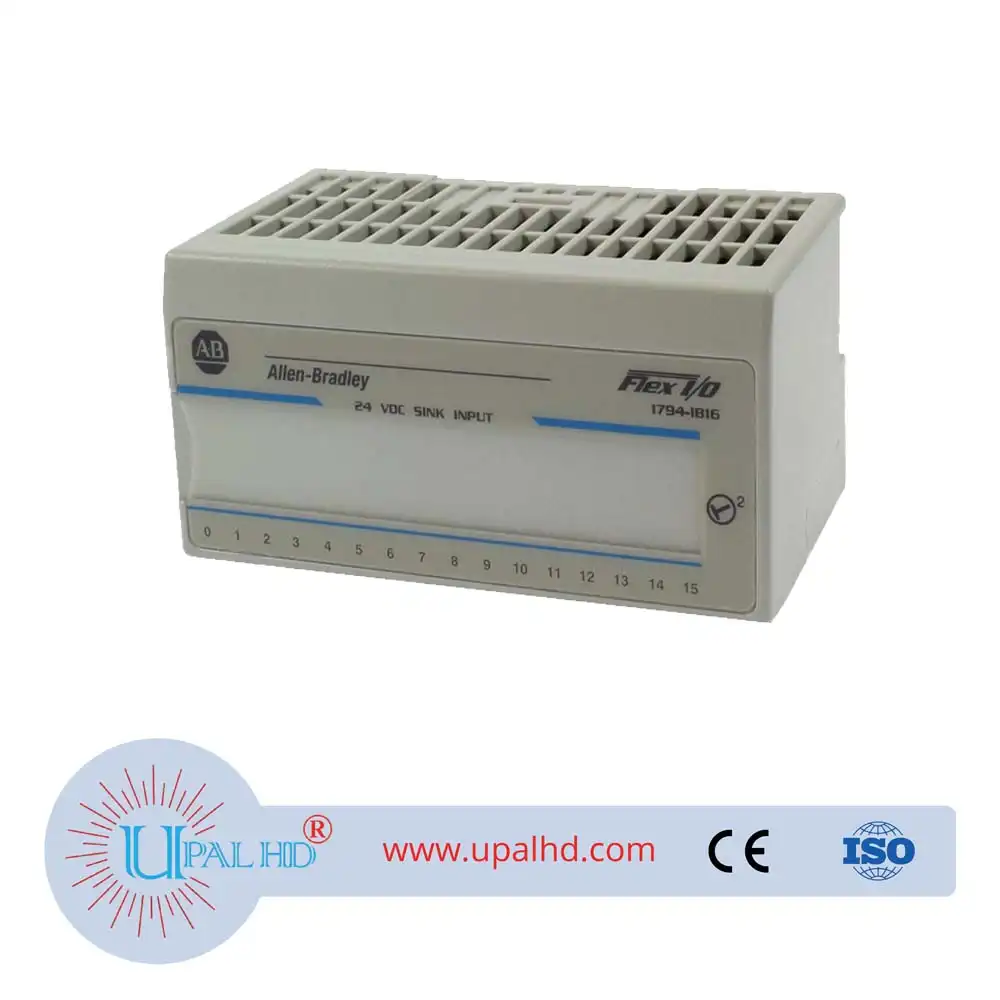

1794-IB16 American Rockwell AB ControlLogix PLC.1794 Series Model No: 1794-IB16.The Allen-Bradley 1794-IB16 is a Flex IO discrete input module. This module features Sixteen (16) 24VDC sinking input channels. It is compatible with a variety of terminal base units such as 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, 1794-TB37DS. It is compatible with any 1794 Flex IO adapters to implement distributed I/O application.
Description
PRODUCT INFORMATION OF 1794-IB16 American Rockwell AB ControlLogix PLC.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Operating Temperature: | 0 to 55 C (32 to 131 F) |
| Wire Size: | Determined by installed terminal base |
| Mounting: | DIN Rail |
| Indicators: | 16 Yellow status indicators |
| ON state Voltage, nom: | 24 VDC |
| ON state Voltage, max. | 31.2 VDC |
| ON state Voltage, min: | 19.2 VDC |
| Number of Inputs: | Sixteen (16), sinking inputs |
| Terminal base: | 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794- TBKD, 1794-TB37DS |
| Product Description: | Flex IO DC Input Module |
| Storage Temperature: | -40 to 85 C (-40 to 185 F) |
| Vibration: | 5g @ 10 to 500 Hz |
| Part Number/Catalog No. | 1794-IB16 |
| Operating Shock: | 30 g |
| Product Type | Flex I/O Digital Input Modules |
| Inputs | 16 Current Sinking |
| On-state Voltage min. | 10V DC |
| On-state Voltage max. | 31.2V DC |
| On-state Current min. | 2.0mA min. |
| On-state Current max. | 12.0mA |
| Off-state Voltage max. | 5V DC |
| Off-state Current max. | 1.5mA |
| Nominal Input Impedance | 4.6 k? |
| Flexbus Current | 30mA @ 5V DC |
| Power Dissipation | 6.1W @ 31.2V DC max. |
| UPC | 10612598137784 |
