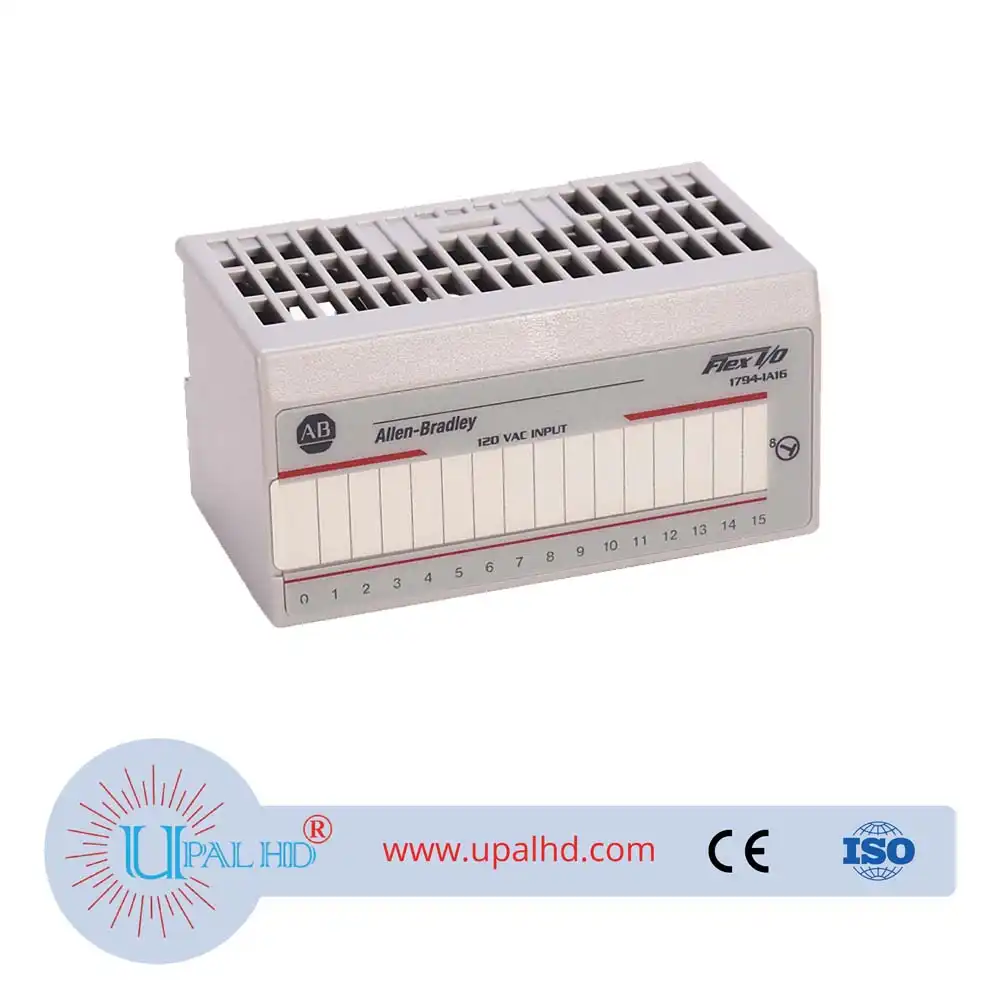

1794-IA16 American Rockwell AB ControlLogix PLC.
1794-IA16 American Rockwell AB ControlLogix PLC.1794 Series Model No: 1794-IA16.The Allen-Bradley 1794-IA16 is a Flex I/O AC input module. This module has Sixteen (16) non-isolated input channels with input voltage range of 74VCA-132VAC. It is compatible for use with Flex I/O communication adapters and terminal bases such as 1794-TB3, 1794-TB3S, 1794-TBN(2), 1794-TB3K, 1794-TB3SK, 1794-TBNK.
Description
PRODUCT INFORMATION OF 1794-IA16 American Rockwell AB ControlLogix PLC.
| Manufacturer | Rockwell Automation |
| Mounting: | DIN Rail |
| Number of Inputs: | 16, non-isolated |
| Terminal base: | 1794-TB3, 1794-TB3S ,1794-TBN, 1794-TB3K, 1794-TB3SK and 1794-TBNK |
| Keyswitch Position: | 8 |
| ON state Voltage, min: | 74VAC |
| ON state Voltage, max. | 132VAC |
| OFF state Voltage, max: | 20VAC |
| Indicators: | 16 Yellow status indicators |
| Product Family: | Flex I/O |
| Wire Size: | Determined by installed terminal base |
| Dimensions: | 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in.) |
| Enclosure type rating: | None (open-style) |
| Operating Temperature: | 0 to 55 C (32 to 131 F) |
| Storage Temperature: | -40 to 85 C (-40 to 185 F) |
| Vibration: | 5g @ 10 to 500 Hz |
| Operating Shock: | 30 g |
| Product Description: | AC Input Module |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1794-IA16 |
| Product Type | Flex I/O AC Digital Input Module |
| Inputs | 16 Nonisolated |
| On-state Voltage min. | 74 Volts AC |
| On-state Voltage max. | 132 Volts AC |
| On-state Current min. | 5.49 mA |
| On-state Current max. | 14.8 1mA |
| Off-state Voltage max. | 20 Volts AC |
| Off-state Current min. | 2.9 mA |
| Nominal Input Current | 12 mA at 120 Volts AC |
| Flexbus Current | 20 mA |
| Power Dissipation | 6.4 Watts at 132 Volts AC max. |
| UPC | 10612598179913 |
| UNSPSC | 32151602 |
