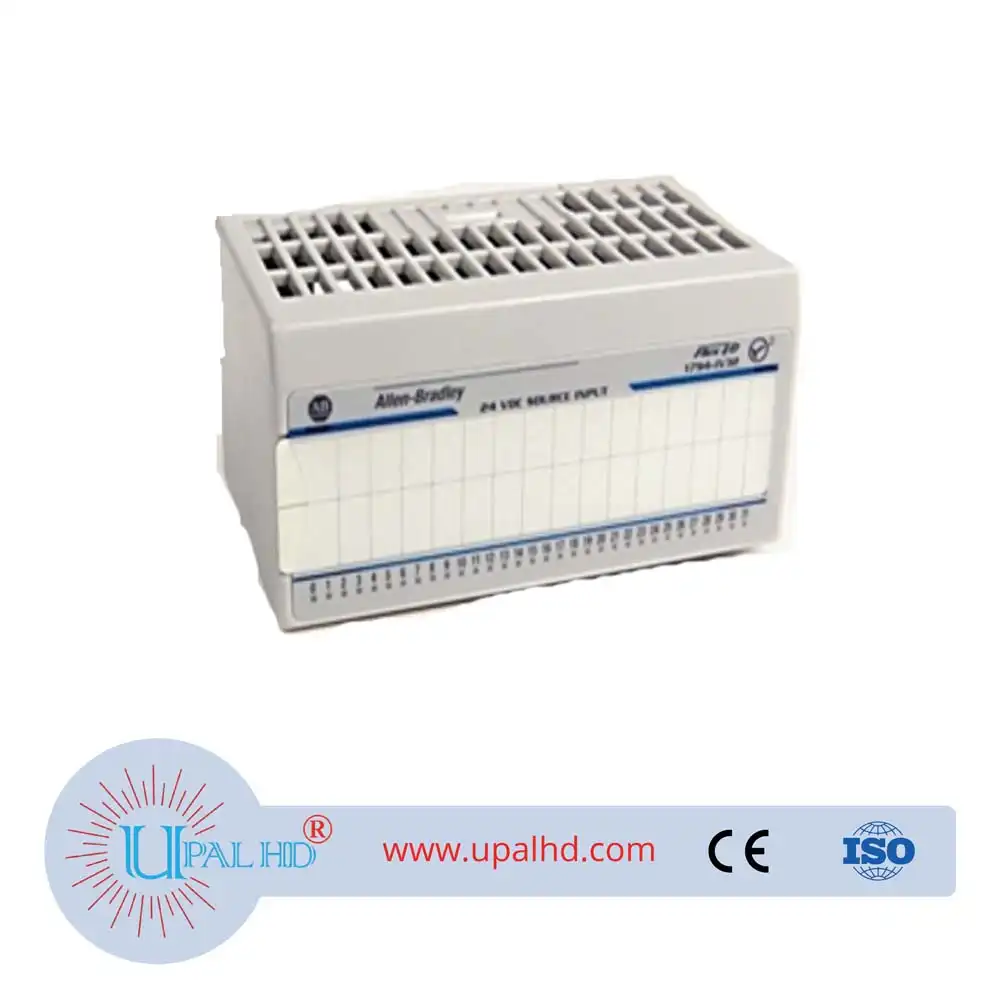

1794-IV32 New American Rockwell AB ControlLogix FLEX I/O.
1794-IV32 New American Rockwell AB ControlLogix FLEX I/O.1794 Series Model No: 1794-IV32. The 1794-IV32 is a discrete input module that is part of Allen-Bradley’s Flex I/O platform. This module features Thirty-two (32) current sourcing input channels accepting 24 VDC nominal voltage input. This module has a FlexBus current draw of 40 mA @ 5V DC and is compatible for use with 1794-TB32, 1794-TB32S, 1794-TB62DS, and 1794-TB62EXD4X15 terminal base units.
Description
PRODUCT INFORMATION OF 1794-IV32 New American Rockwell AB ControlLogix FLEX I/O.
| Brand | Allen-Bradley / Rockwell Automation |
| Series | Flex I/O 1794 |
| Manufacturer | Rockwell Automation |
| Manufacturer | Rockwell Automation |
| Series | Flex I/O |
| Brand | Allen-Bradley |
| Part Number | 1794-IV32 |
| Module Type | 24 VDC Discrete input module |
| Product type | FLEX I/O module |
| Part Number/Catalog No. | 1794-IV32 |
| No. of Channels | thirty-Two (32) |
| Module Type | Discrete input module |
| Dimensions | 3.7 x 3.7 x 2.7 inches |
| Status indicators | 32 yellow status indicator |
| Wiring configuration | Sourcing |
| No. of Inputs | Thirty-Two (32) |
| Wiring configuration | Source wiring |
| Nominal input voltage | 24 VDC |
| Maximum pollution level | Pollution Degree 2 |
| Minimum On-state voltage | 19.2 VDC |
| Input voltage, nominal | 24 VDC |
| Maximum overvoltage level | Overvoltage Category II |
| Input voltage range | 19.2-31.2 VDC |
| Maximum On-state voltage | 31.2 VDC |
| Mounting base | 1794 Mounting Base |
| Input Filter times | 0.25 ms; 0.5 ms; 1 ms; 2 ms; 4 ms; 8 ms; 16 ms and 32 ms |
| On-state current, min | 2.0 mA |
| Altitude | 6562 feet |
| On-state current, nom | 4.1 mA @ 24V DC |
| Backplane Current draw @ 5.1V | 40 mA |
| On-state current, max | 6.0 mA |
| Compatible Controllers | PLC5; SLC 500; CompactLogix; ControlLogix |
| Input filter time | 0.5 ms; 1 ms; 2 ms; 4 ms; 8 ms; 16 ms; and 32 ms |
| Isolation voltage: | 50V (continuous), Basic Insulation Type Type tested @ 850V DC for 60 s, between field side and system |
| FlexBus current draw: | 40 mA @ 5VDC |
| Installation: | DIN Rail |
