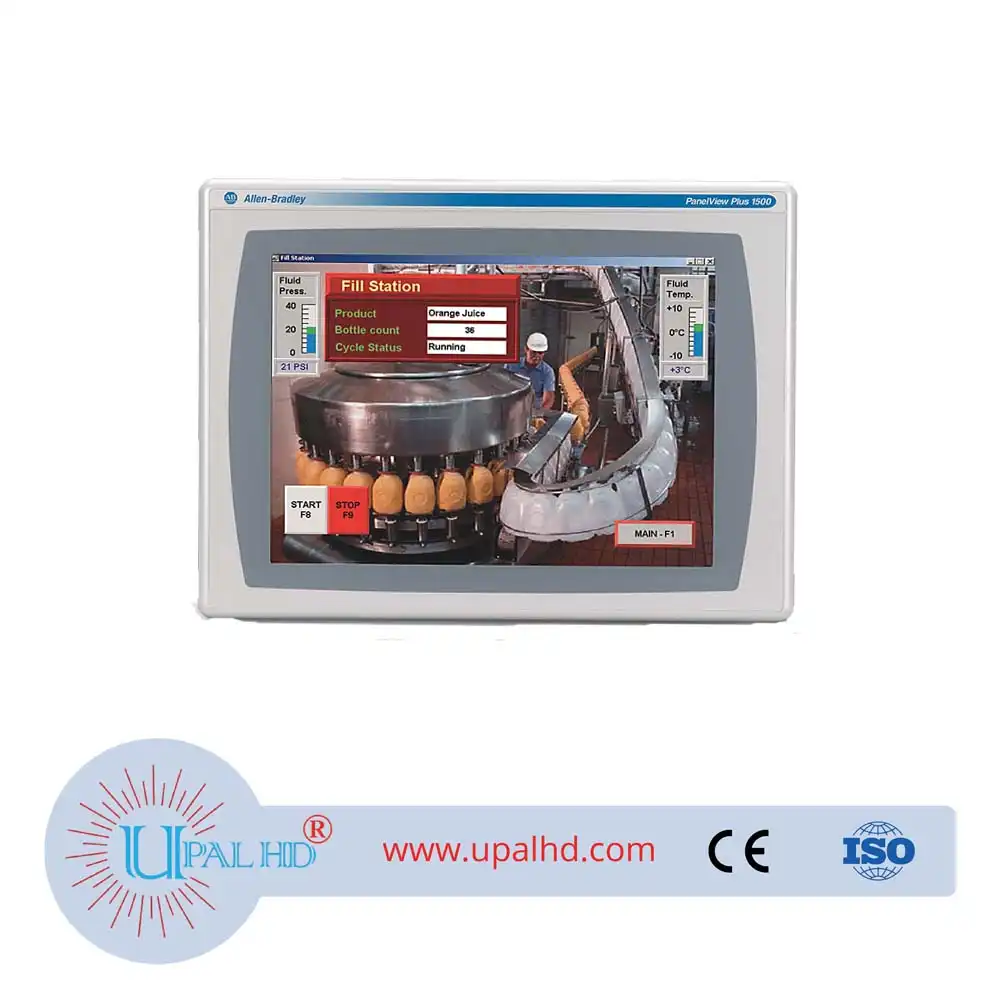

2711P-T15C4D9 Rockwell AB PanelView Plus touch screen.
2711P-T15C4D9 Rockwell AB PanelView Plus touch screen.Touch screen Model No: 2711P-T15C4D9.The Allen-Bradley 2711P-T15C4D9 is a Panelview Plus 6 1500 Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 15.0-inch colored display with embedded Ethernet, RS232, and Two (2) USB communication port. This operator terminal has a touchscreen input interface.
Description
PRODUCT INFORMATION OF 2711P-T15C4D9 Rockwell AB PanelView Plus touch screen.
| Brand | Allen-Bradley |
| Input Voltage range: | 18-30VDC |
| Integrated ports: | Ethernet, RS-232, 2 USB host |
| Internal memory: | 512MB Flash Memory / 512 MB Random Access Memory |
| Touch: | 1 million presses |
| Resolution: | 1024 x 768, 18-bit color graphics |
| Display Area: | 304 x 228 mm (12.0 x 9.0 in.) |
| Lifecycle status: | End of life |
| Display Type: | Color active-matrix TFT |
| Operator Input: | Touch |
| Product Type: | PanelView Plus 6 1500 Operator Terminals |
| Product Family: | PanelView Plus 6 Operator Terminals |
| Manufacturer: | Rockwell Automation |
| Display Size | 15.0 inches |
| Backlight | CCFL, 50,000 hours min at 25 ° C (77 °F), field replaceable |
| Part Number/Catalog No. | 2711P-T15C4D9 |
| Product Line | Panelview 6 Plus |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 18 to 32 Volts DC |
| Memory | 512 MB RAM |
| Communication Cable | 2711-NC13 |
| Shipping Weight | 13 pounds |
| Shipping Dimensions | 20 x 14 x 8 inches |
| Series | Series A and Series B |
| Series | Series A and Series B |
| UPC | 10662074001269 |
| UPC | 10885630004324 |
