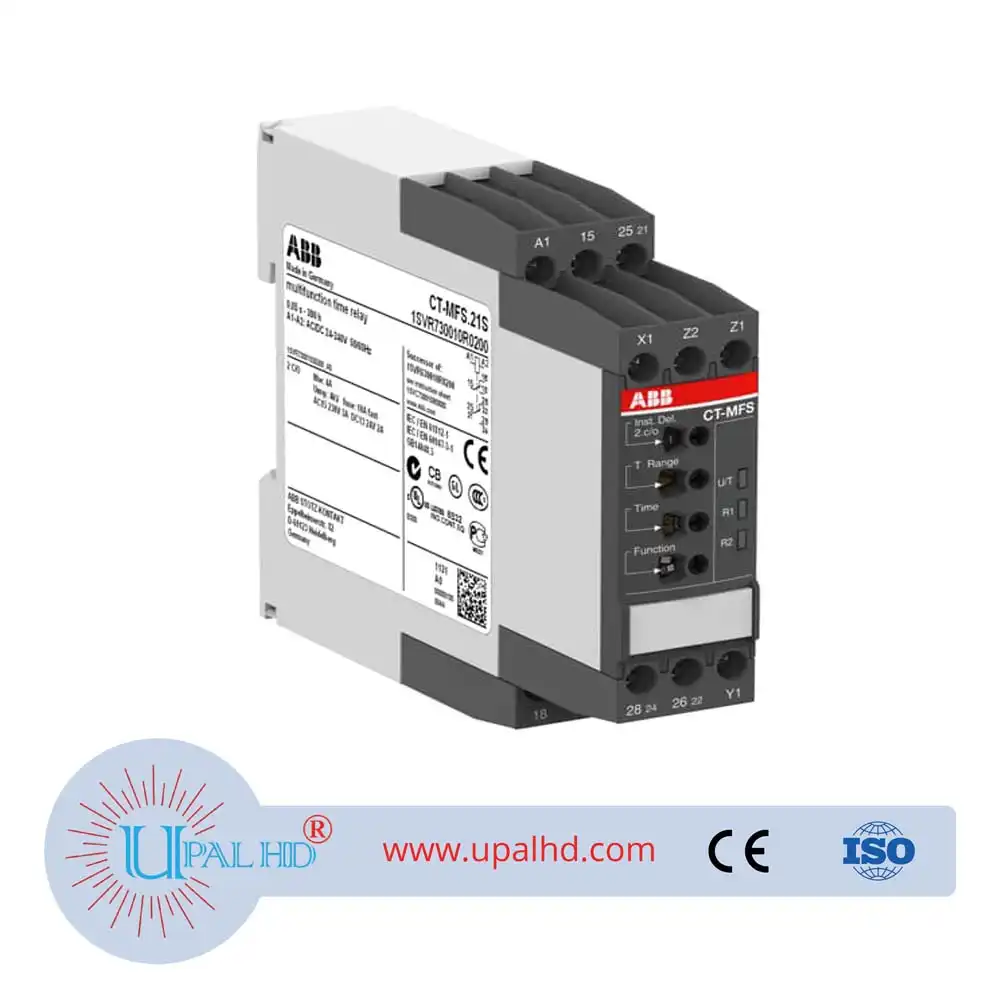

ABB official genuine electronic time relay monitor CT-MFS.21S, 24-240VAC.

PRODUCT INFORMATION OF ABB official genuine electronic time relay monitor CT-MFS.21S, 24-240VAC.

General Information

• Extended Product Type:

  CT-MFS.21S

• Product ID:

  1SVR730010R0200

• EAN:

  4016779851367

• Catalog Description:

  CT-MFS.21S Time relay, multifunction 2c/o, 24-240VAC/DC

• Long Description:

  The CT-MFS.21S is a multifunction electronic time relay from the CT-S timer range. It provides 10 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 – 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. Two control inputs work with volt-free (floating) triggering.The CT-MFS.21S offers the possibility of connecting a remote potentiometer for the fine adjustment of the time delay. The second of the c/o contacts can be selected as an instantaneous contact. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

Classifications

• Object Classification Code:

  K

• ETIM 4:

  EC001439 – Timer relay

• ETIM 5:

  EC001439 – Timer relay

• ETIM 6:

  EC001439 – Timer relay

• ETIM 7:

  EC001439 – Timer relay

• ETIM 8:

  EC001439 – Timer relay

• eClass:

  V11.0 : 27371605

• UNSPSC:

  39121519
