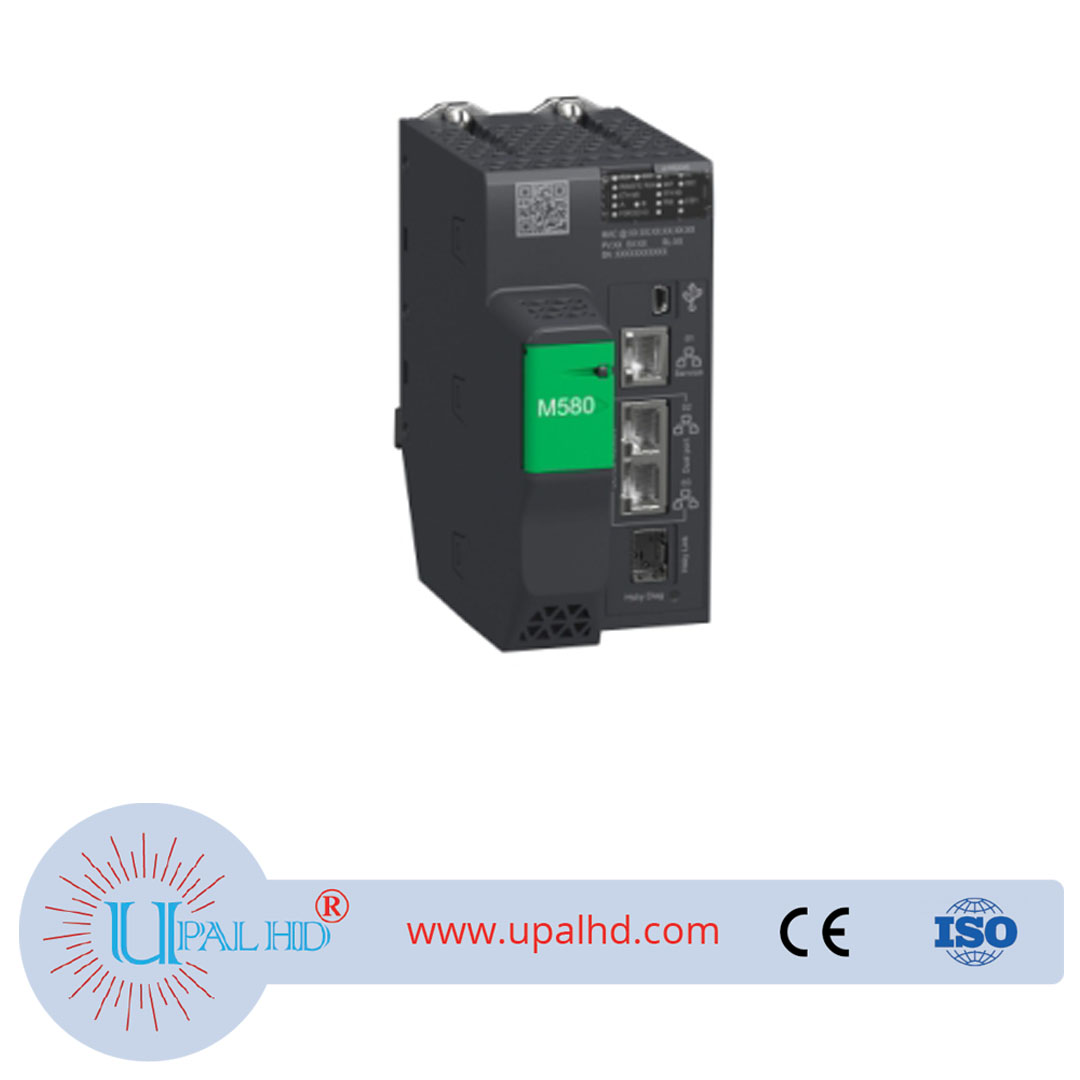

PRODUCT INFORMATION OF Schneider BMEH582040
| range of product | Modicon M580 |
|---|---|
| product or component type | Redundant processor module |
| number of racks | 1 |
| application specific I/O | Counter Accurate time stamping Serial link HART Motion control SSI encoder |
| checks | Process control |
| control channels | Programmable loops |
| integrated connection type | 1 Ethernet TCP/IP for service port 2 Ethernet TCP/IP for device network USB type mini B 1 Ethernet for HSBY port |
| number of remote I/O station | 8 – 2 rack(s) per X80 remote drop |
| number of distributed equipment | 64 |
| communication module processor capacity | 2 Ethernet communication module 8 AS-Interface module |
| communication service | DIO scanner RIO scanner |
| memory description | Expandable flash, 4 GB for data storage Integrated RAM, 10 kB for system memory Integrated RAM, 8 MB for program Integrated RAM, 768 kB for data |
| application structure | 1 periodic fast task 1 cyclic/periodic master task |
| number of instructions per ms | 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 10 Kinst/ms 100 % Boolean |
| current consumption | 270 mA at 24 V DC |
| MTBF reliability | 600000 H |
| marking | CE |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | 0…2000 m 2000…5000 m with derating factor |
| relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| supply | Internal power supply via rack |
| status LED | 1 LED (green) processor running (RUN) 1 LED (red) processor or system fault (ERR) 1 LED (red) I/O module fault (I/O) 1 LED (green) download in progress (DL) 1 LED (red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) 1 LED (green) peer processor running (REMOTE RUN) 1 LED (green) processor ID set to A (A) 1 LED (green) processor ID set to B (B) 1 LED (green) processor acting as Primary (PRIM) 1 LED (green) processor acting as Standby (STBY) 1 LED (green) I/O values overrided by user (FORCED IO) 1 LED (green) Hot standby link status (Hsby Diag) |
| net weight | 0.849 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 17.5 cm |
| Package 1 Length | 25.0 cm |
| Package 1 Weight | 895.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.37 kg |
