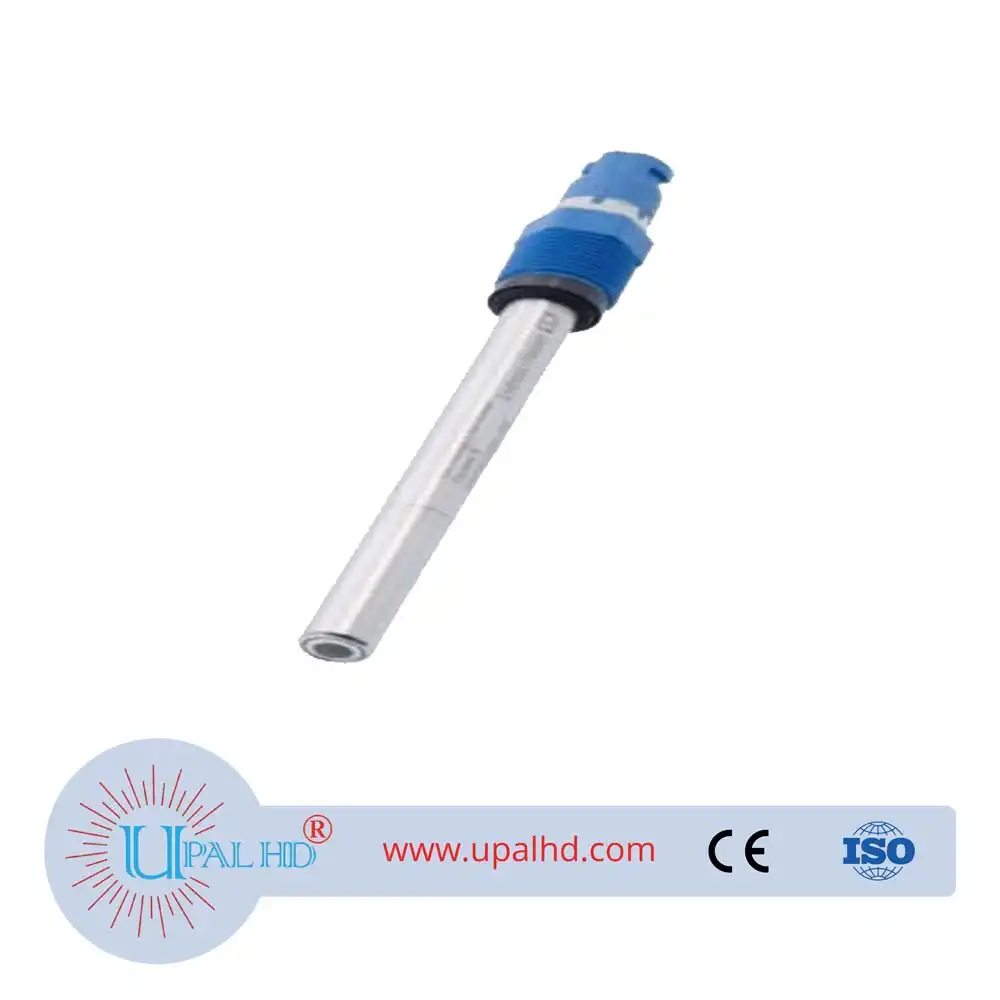

Endress+Hauser digital dissolved oxygen sensor COS22D-AA1A2B22.

Description

PRODUCT INFORMATION OF Endress+Hauser digital dissolved oxygen sensor COS22D-AA1A2B22.

Digital oxygen sensor Oxymax

Type: COS22D-AA1A2B22

Application: Food, Pharma, Fermentation, Process, Power

Installation:

Standard process connection Pg 13.5

Installation in standard pH assemblies possible

Characteristic:

Digital sensor for measuring oxygen. Sensor with long-term stability for frequent sterilization and autoclaving.

Sensor for standard applications

CO2 compatible trace sensor for the beverage industry

Trace sensor in the power plant sector

Measurement range:

0,001 … 20 mg/l

0 … 200 %SAT

0 … 400 hPa

Measuring principle: Amperometric measurement of oxygen.

Design:

Membrane-covered 2-electrode oxygen sensor with teflon-membrane,

sensor done by stainless steel

Material Sensorbody:  stainless steelMembrane : PTFE coated stainless steel net with a silicone coating.

Dimension:

Diameter : 12mm (0.46inch)shaft length : 120,225,360 and 425mm

(4.68,8.77,14.04 and 16,57inch)

Process temperature:

-5 – 135°C

23 – 275°F

Process pressure:

ambient (1bar) – 12bar

ambient – 174psi

temperature sensor: Integrated NTC temperature sensor

Connection: Memosens-connection head

Additional Certifications:

– material certification 3.1

– Surface roughness Ra<0,38

Manufacturer: Endress + Hauser
