Description

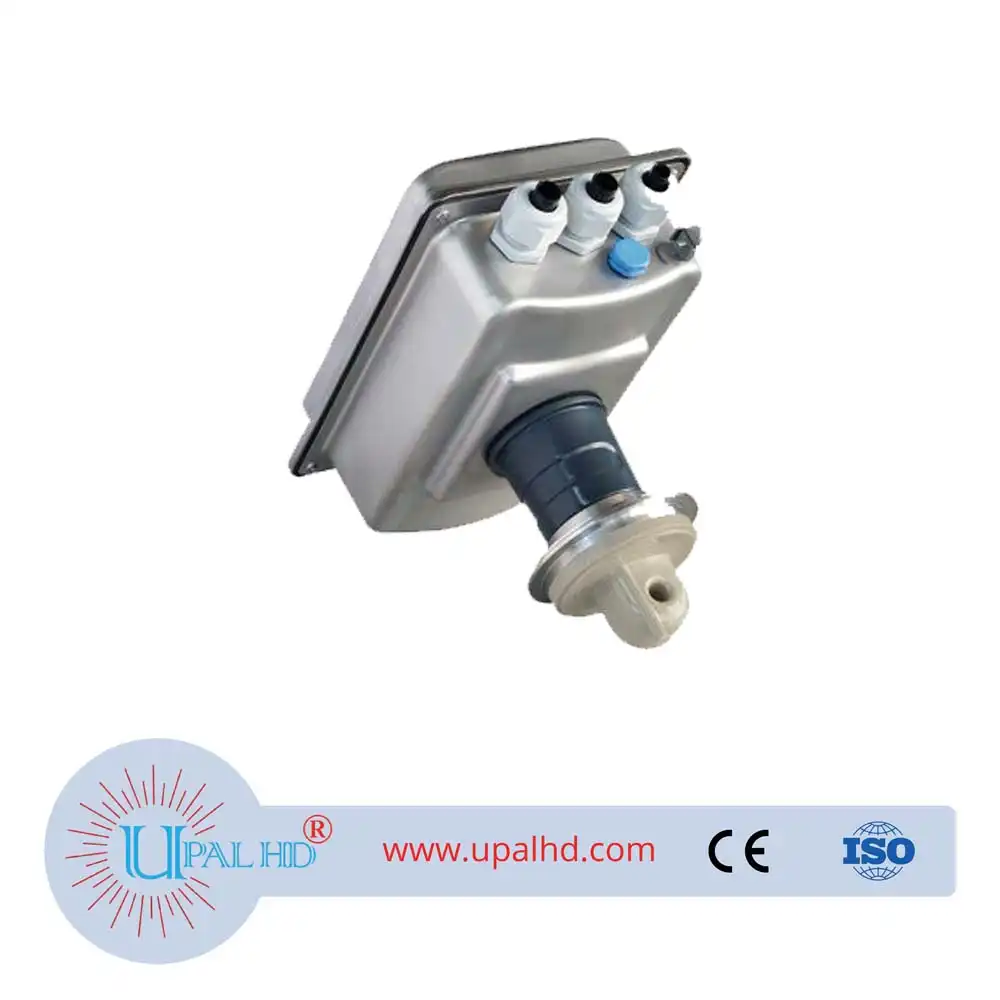

PRODUCT INFORMATION OF Endress+Hauser transmitter CLD132-XMV118AA1.
| Measuring principle | Inductive |
| application | Food, beverage and pharmaceutical industries and biotechnology. |
| Characteristic | Specially designed for hygienic use and especially suitable for the following applications: Phase separation, CIP control, concentration control, product control, leakage control. |
| Measuring range | 100 µS/cm – 2000 mS/cm Cellconstant k: 6.31/cm |
| Measuring principle | Measurement of inductive conductance |
| design | Hygienic design with FDA certified PEEK body including all hygienic certifications. |
| Material | In contact with media: Virgin PEEK Surface roughness: Ra <0.9 µm |
| Process temperature | Process temperature: -10°C – 125°C (14°F – 257°F) Sterilization: 150°C / 5 bar (max. 60 min.) (302°F / 72.5 psi) |
| Process pressure | 12 bar (174 psi) / 20 ° C (68 ° F) 8 bar (125 psi) / 125 ° C (257 ° F) |
| temperature sensor | Pt 1000 (class A) with temperature response time T90 <27 s. |
| Connection | Milk pipe, aseptic connection, ISO 2852 clamp, SMS-2″, Varivent N DN 40-125, Neumo Biocontrol D50. |
| Corrosion protection | IP67 |
| Conclusion | Conductivity, concentration and temperature. 0 / 4-20 mA, HART, Profibus |
| Additional certificates | FDA, EHEDG, 3A, Biological Reactivity (USP Class VI Parts 87 and 88) |
