Description

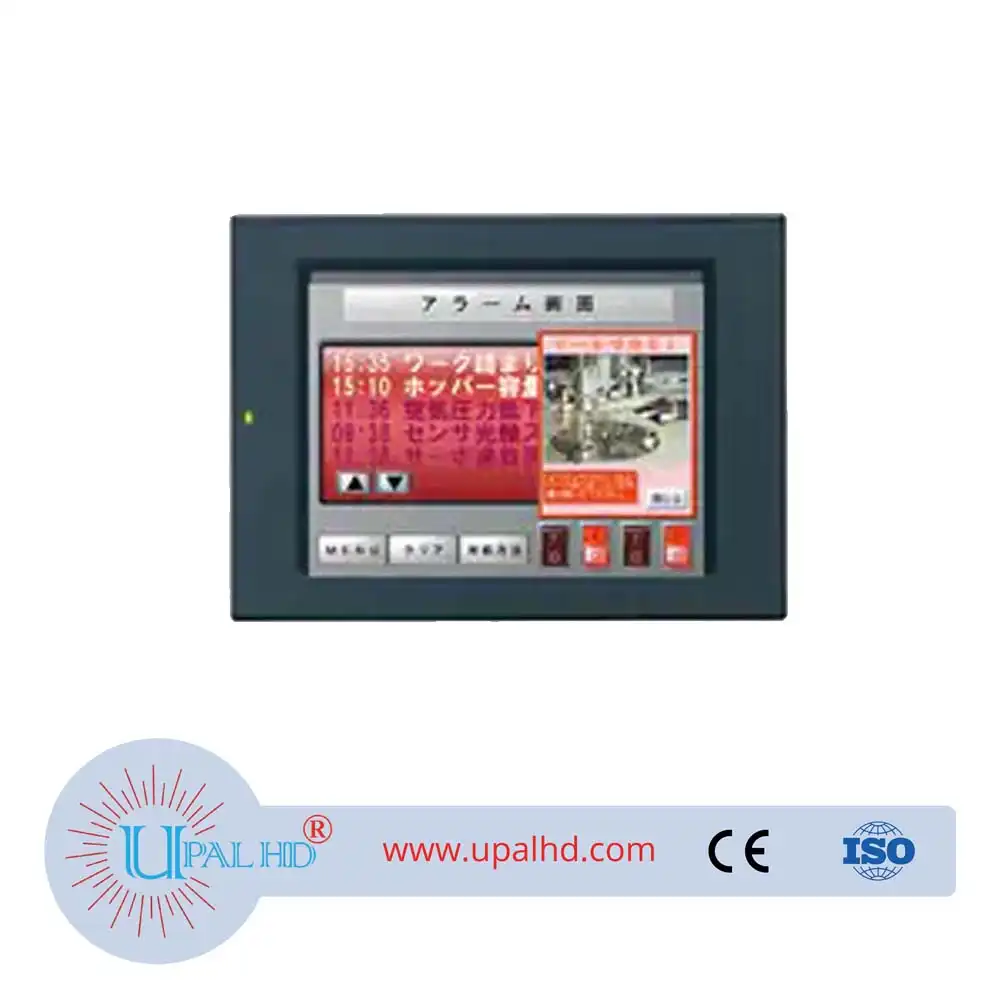

PRODUCT INFORMATION OF Keyence 7 inch VGA TFT color touch screen VT3-V7.
| Model | VT3-V7 | |||
| General specifications | Current consumption | 800mA or less | ||
| Structure | Panel built-in type, IP65f equivalent dust-proof, waterjet-proof on only front panel |
|||
| Overvoltage category | I | |||
| Pollution degree | 2 | |||
| Power voltage | 24 VDC ±10% | |||
| Noise resistance | 1500 Vp-p pulse width 1 µs 50 ns (common mode, based on noise simulator) | |||
| Withstand voltage | 1500 VAC 1 minute (between power terminal and housing) | |||
| Insulation resistance | 50 MΩ or more tested by 500 VDC megohmmeter (between power terminal and housing) | |||
| Vibration resistance | Intermittent vibration | Frequency: 5 to 9 Hz | Half amplitude:3.5 mm*1 | |
| Frequency: 9 to 150 Hz | Acceleration: 9.8 m/s2 *1 | |||
| Continuous vibration | Frequency: 5 to 9 Hz | Half amplitude:1.75 mm*1 | ||
| Frequency: 9 to 150 Hz | Acceleration: 4.9 m/s2 *1 | |||
| Ground | ― | |||
| Operating environment | Minimal amount of dust and corrosive gas present | |||
| Ambient operating temperature | 0 to +50°C | |||
| Ambient operating humidity | 35 to 85%RH (No condensation)*2 | |||
| Ambient storage temperature | -10 to +60°C (No freezing) | |||
| Ambient storage humidity | 35 to 85%RH (No condensation)*2 | |||
| Weight | Approx 1150 g | |||
