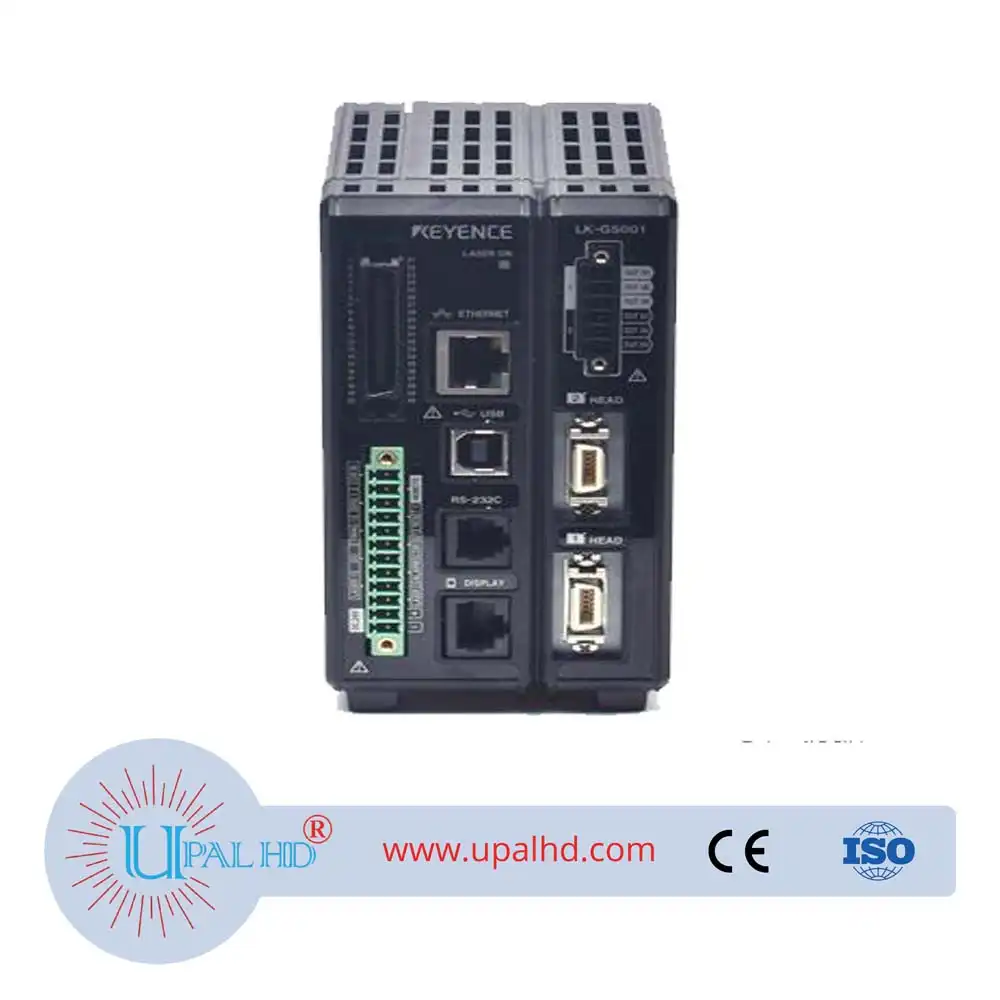

PRODUCT INFORMATION OF Keyence controller LK-G5001.
| Model | LK-G5001 | |||
| Type | Separate type Main controller | |||
| Sensor head compatibility | Compatible | |||
| No. of connectable sensor heads | 2 | |||
| Display | Minimum display unit | 0.001 µm | ||
| Display range | ±999.999 µm to ±9999.99 mm (7 settings selectable) | |||
| Display cycle | Approx 10 times/sec. | |||
| Display interface | Display port | Either the display unit (LK-HD500) or dedicated touch panel (LK-HD1001) can be connected | ||
| LED indicator | LASER ON | |||
| Terminal block | Analog output voltage | ±10 V output, Output impedance: 100 Ω*1 | ||
| Analog current output | 4 to 20 mA, Maximum load resistance: 350 Ω*1 | |||
| No. of analog outputs | 2*1 | |||
| TIMING 1 input | Non-voltage input*2 | |||
| RESET 1 input | ||||
| Auto-zero 1 input | ||||
| Laser remote input | Non-voltage input*1 | |||
| Alarm output | NPN open-collector output*1 | |||
| General comparator output | ||||
| Expansion connector | TIMING input | Non-voltage input*1 | ||
| RESET input | ||||
| Auto-zero input | ||||
| Program switching input | ||||
| Binary selection input | ||||
| Alarm output | NPN open-collector output*1 | |||
| Comparator output | ||||
| Binary output | ||||
| RS-232C interface | Baud rate: 9600 to 115200 bps Data length: 8 bits Stop bit length: 1 bit Parity: None/even/odd |
|||
| USB interface | USB 2.0 Hi-Speed compliant*3 | |||
| Ethernet interface | 100Base-TX/10Base-T*4 | |||
| EtherNet/IPTMinterface | Cyclic communication (implicit messaging) Message communication (explicit messaging) : UCMM and Class3 Number of connections: 32 Complies with conformance test version CT14*5 |
|||
| PLC-Link | The following PLCs are supported:Mitsubishi Electric: MELSEC iQ-R Series, iQ-F Series, Q Series, L Series, FX Series EtherNet/IPTM, CC-Link, and DeviceNetTM cannot be used in conjunction with PLC-Link |
|||
| Head expansion unit connector | Up to 10 head expansion units can be connected to one main controller | |||
| Expansion unit connector | Either of the CC-Link unit (LK-CC100) or DeviceNetTM unit (LK-DN100) can be connected | |||
| Power supply | Power supply voltage | 24 VDC ±10% | ||
| Maximum current consumption | 0.6 A or less with 1 head/3.5 A or less with 12 heads | |||
| Environmental resistance | Ambient temperature | When one or less head expansion unit is connected: 0 to +50 °C 32 to 122 °F. When two or more head expansion units are connected: 0 to +40 °C 32 to 104 °F. |
||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Weight | Approx. 600 g | |||
