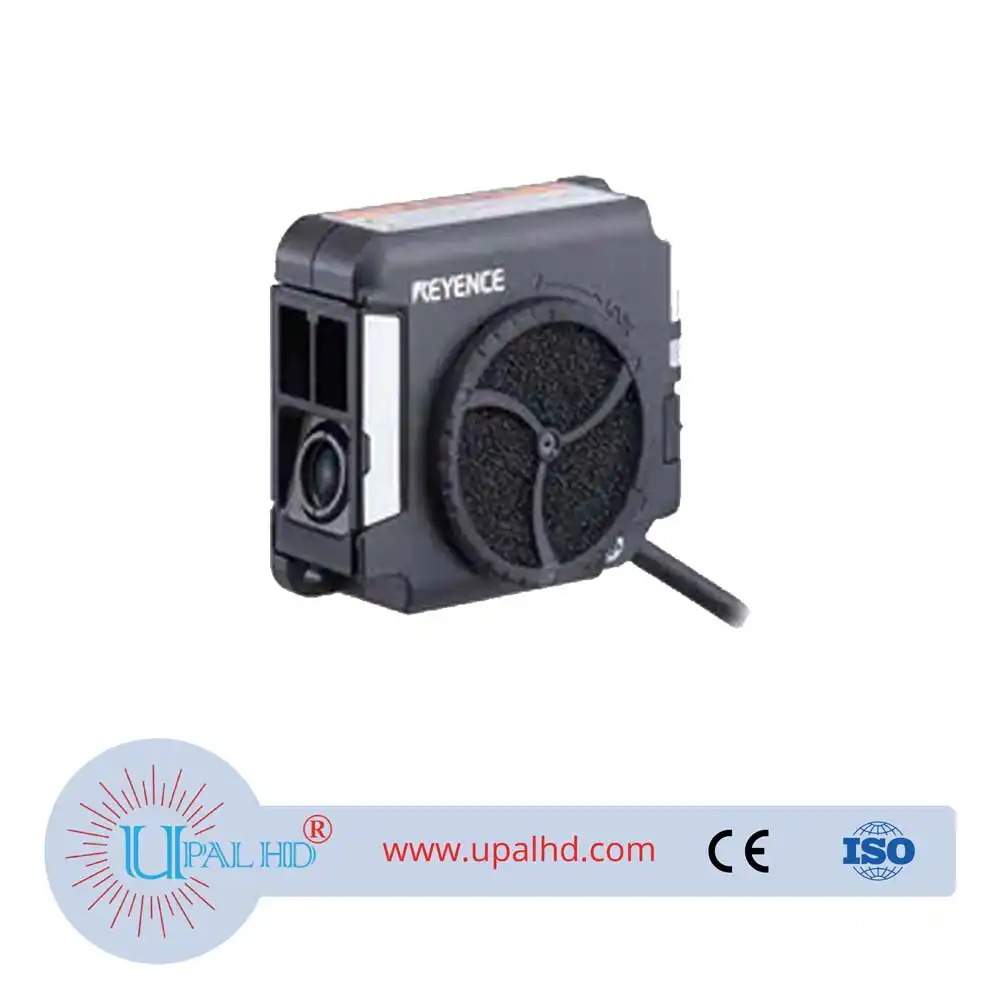

PRODUCT INFORMATION OF Keyence Static Monitoring Electrostatic Fan SJ-L005F.
| Model | SJ-L005F | |||
| Voltage application method | High frequency AC method | |||
| Applied voltage | 3 kVAC | |||
| Ion balance | ±10 V *1 | |||
| Installation distance | 50 mm 1.97 “ or greater | |||
| Maximum air speed | 7 m/s *1 | |||
| Maximum air flow | 0.16 m3/min | |||
| Ozone concentration | 0.05 ppm or less *1 | |||
| Control input | Static elimination stop input | Can switch between “non-voltage input” and “voltage input” *2*3 For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA or lower (short circuit) For voltage input: Maximum input rating 30 V , ON voltage 18 V or higher, OFF current 0.1 mA or lower, ON current 1 mA or lower (at 30 V) |
||
| Control output | Alarm (N.C.) /Ion level alarm (N.O.) | Open collector output: 30 V DC or less Maximum 50 mA or lower, Residual voltage 1 V or lower Switchable between NPN/PNP settings *2*3 |
||
| Power supply | Power voltage | 24 V DC ±10 % (including ripple) or 12 V DC (dedicated AC adapter OP-88020/87722 *4) |
||
| Power consumption | 310 mA or less (for 24 V DC) 600 mA or less (for 12 V DC) |
|||
| Environmental resistance | Ambient temperature | 0 to +50 °C 32 to +122 °F (When using OP-87722, 0 to +40 °C 32 to +104 °F) |
||
| Relative humidity | 35 to 65 % RH (assuming no condensation) | |||
| Overvoltage category | I | |||
| Pollution degree | 2 | |||
| Weight | Approx. 100 g (main unit weight) | |||
