Description

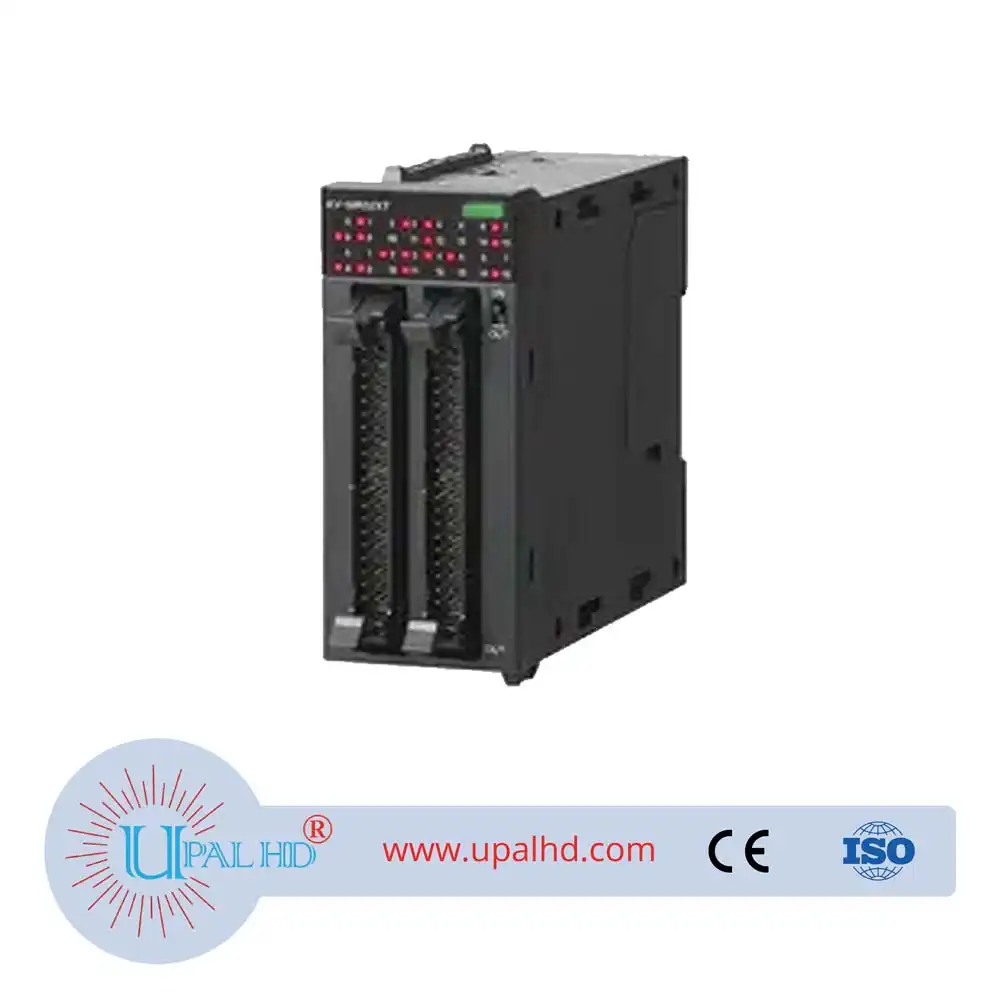

PRODUCT INFORMATION OF Keyence high-speed input/output unit KV-SIR32XT.
| Model | KV-SIR32XT | |||
| Type | High-speed I/O unit | |||
| External connection method | Connector (MIL specification)*1 | |||
| Input | Number of inputs | 32 points | ||
| Input mode | 24 VDC mode, 5 VDC mode*2 (with overvoltage protection function*3) | |||
| Maximum input voltage | 24 VDC mode: 28.8 VDC 5 VDC mode: 6.0 VDC |
|||
| Rated input voltage | 24 VDC mode: 24 VDC, 5.1 mA 5 VDC mode: 5 VDC, 8.8 mA |
|||
| Minimum ON voltage | 24 VDC mode: 19 V 5 VDC mode: 3.5 V |
|||
| Maximum OFF current | 24 VDC mode: 1.5 mA | |||
| Maximum OFF voltage | 5 VDC mode: 1.5 V | |||
| Common method | 16 points/1 common (2 terminals)*4 | |||
| Input time constant | 1 μs/10 μs/20 μs/100 μs/500 μs/1 ms/5 ms/10 ms/50 ms | |||
| Input impedance | 24 VDC mode: 4.4 kΩ 5 VDC mode: 350 Ω |
|||
| Output | Number of outputs | 32 points | ||
| Output mode | MOSFET (sink) (with overcurrent protection function)*5 | |||
| Rated load | 30 VDC, 0.2 A (1.6 A/1 common) | |||
| Leakage current at OFF | 100 μA or less | |||
| Residual voltage at ON | 0.5 VDC or less | |||
| Common method | 16 points/1 common (2 terminals)*4 | |||
| Operation time | OFF to ON: 1 μs or less: (Load: 5 mA to 200 mA) ON to OFF: 5 μs or less: (Load: 5 mA to 200 mA) |
|||
| Internal current consumption | 130 mA or less | |||
| Weight | Approx. 190 g | |||
